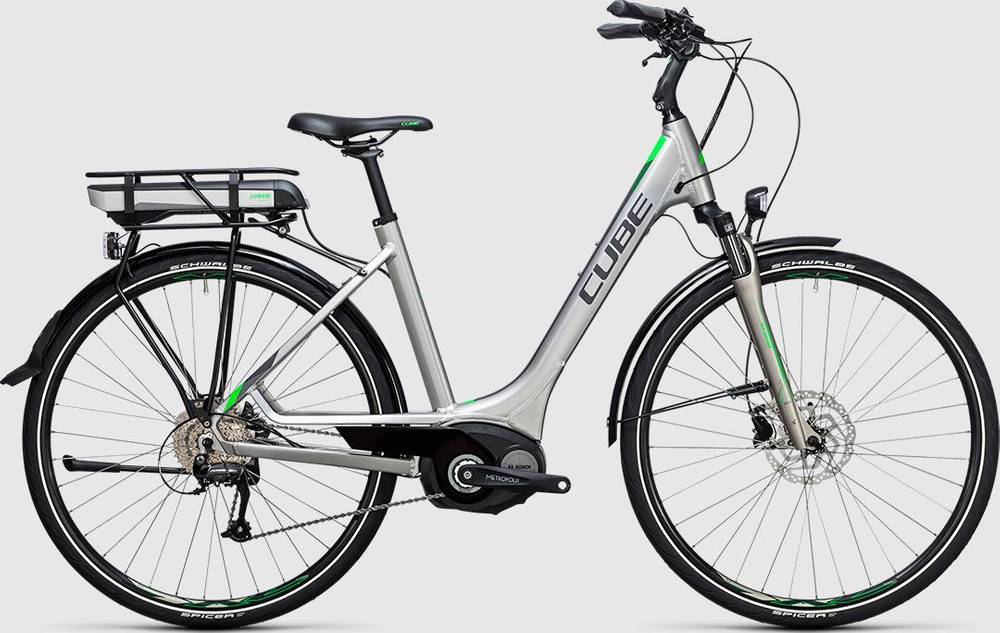

CUBE TOURING HYBRID ONE 500 2017
2017 E-bike
Weight | 23.6 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, FSA -
Suspension Hardtail -
Motor Bosch 250W 48Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Hybrid Comfort, Double Butted
Suspension Fork
SR Suntour NEX, 63mm
Drivetrain
Rear Derailleur
Shimano RD-M370-SGS, 9-Speed
Shift Levers
Shimano SL-M370, Rapidfire-Plus
Cassette
Shimano CS-HG300, 12-36T
Crank
FSA Metropolis Urban AL-8, 15T
Chain
KMC X9
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 36H, Disc
Tires
Schwalbe Spicer, Active, 40x622
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm; EE: CUBE Comfort City Stem, 31.8mm
Handlebar
CUBE Rise Trail Bar, 700mm; EE: CUBE Comfort Shape Bar
Grips
CUBE Natural Fit Comfort
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
CUBE Comfort Tour 1.2
Seatpost
CUBE Performance Post, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active (48Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.67 mm | 1.73 mm | 1.78 mm |
| Front Center | 638 mm | 646 mm | 652 mm | 646 mm |
| Rake | 41 mm | 42 mm | 48 mm | 32 mm |
| Trail | 87 mm | 82 mm | 69 mm | 86 mm |
| Stack | 652 mm | 654 mm | 680 mm | 706 mm |
| Reach | 379 mm | 391 mm | 394 mm | 396 mm |
| Top Tube Length | 576 mm | 589 mm | 600 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 475 mm | 500 mm | 540 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 160 mm | 160 mm | 185 mm | 210 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1118 mm | 1126 mm | 1132 mm | 1126 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
TOURING HYBRID ONE 500 is part of the Cube E Touring model. 81 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Hybrid e-bikes
If we make a quick analysis of the average weight of a Hybrid e-bike, we get 23.79 kg (52.45 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 23.6 kg (52.03 lbs), the TOURING HYBRID ONE 500 model is slightly lighter than average. In short, the average Hybrid e-bike weight is 0.81% higher than this one.
Overview of components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the TOURING HYBRID ONE 500 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE TOURING HYBRID ONE 500 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
