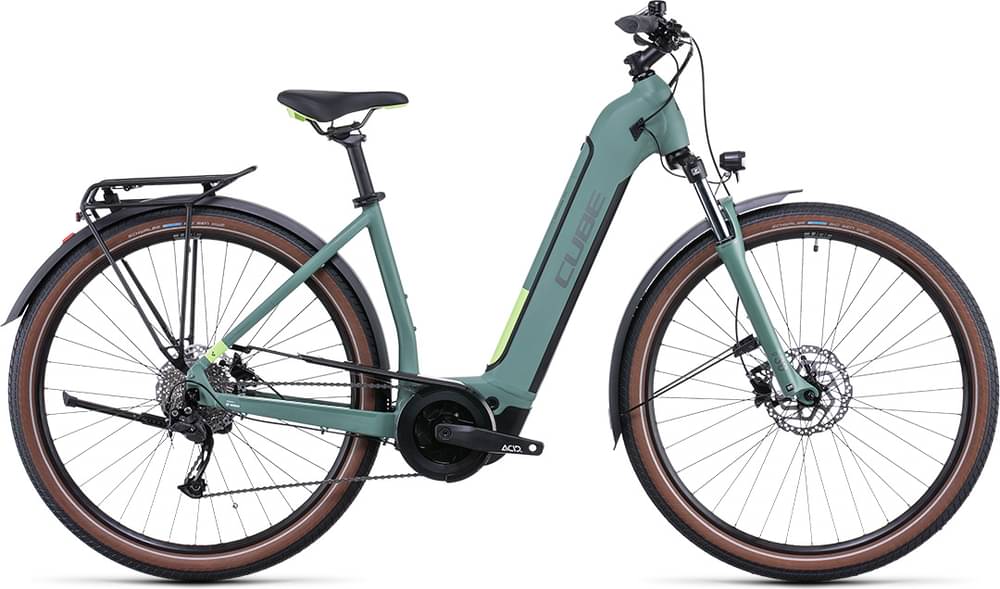

CUBE TOURING HYBRID ONE 500 2021
2021 E-bike
Estimate price |
2,809$
Weight | 25.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork SunTour
-
Groupset Sora -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Semi-Integrated Carrier
Suspension Fork
SR Suntour NVX30 Coil, 100mm
Drivetrain
Rear Derailleur
Shimano RD-M3100-SGS, 9-Speed
Shift Levers
Shimano SL-M3100-R, Rapidfire-Plus
Cassette
Shimano CS-HG201, 11-36T
Crank
ACID E-Crank, 40T, 175mm (EE: 170mm)
Chain
KMC X9
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Big Ben, Active, 55-622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
Natural Fit Comfort
Headset
M/Z: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | XS | LG | SM |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.59 mm | 1.64 mm | 1.58 mm |
| Front Center | 684 mm | 660 mm | 696 mm | 671 mm |
| Rake | 53 mm | 53 mm | 54 mm | 52 mm |
| Trail | 74 mm | 74 mm | 73 mm | 75 mm |
| Stack | 656 mm | 628 mm | 674 mm | 637 mm |
| Reach | 407 mm | 394 mm | 412 mm | 402 mm |
| Top Tube Length | 579.2 mm | 585 mm | 590.9 mm | 596 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 520 mm | 440 mm | 560 mm | 480 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 135 mm | 105 mm | 155 mm | 115 mm |
| Chainstay Length | 491 mm | 491 mm | 491 mm | 491 mm |
| Wheelbase | 1165 mm | 1141 mm | 1177 mm | 1152 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
TOURING HYBRID ONE 500 is a Cube E Touring model. There are 81 e-bikes that carry this model name. You can easily view all of the Cube E Touring e-bikes models from 2021, here.
Model range prices
CUBE TOURING HYBRID ONE 400 Trapeze 2021 is the most economical model, with a starting price of 2388$. CUBE TOURING HYBRID EXC 625 2021 on the other hand costs 3237$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid e-bikes average price
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2600$. In conclusion, this e-bike price is 4.84% more expensive than the price of the average Hybrid e-bike.
Average weight for Hybrid e-bikes
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 25.6 kg (56.44 lbs), the TOURING HYBRID ONE 500 model is a bit heavier than average. To sum up, it’s 7.61% heavier than the average weight of Hybrid e-bikes.
Overview of components
Fork
The fork installed on this bike is the SunTour model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the TOURING HYBRID ONE 500 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The TOURING HYBRID ONE 500 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
