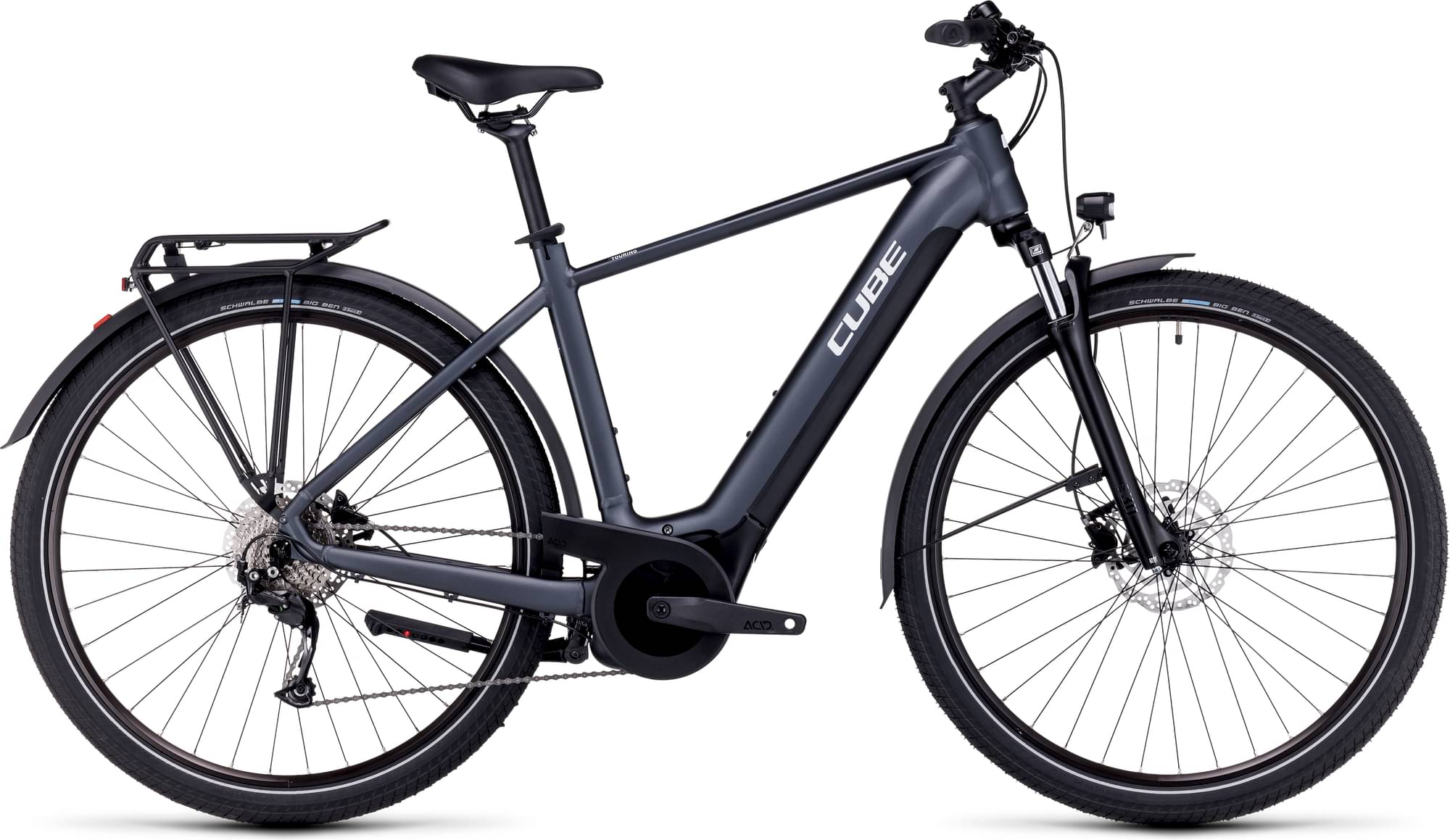

CUBE TOURING HYBRID, ONE 500 2023
2023 E-bike
Estimate price |
3,038$
Weight | 25.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NVX
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

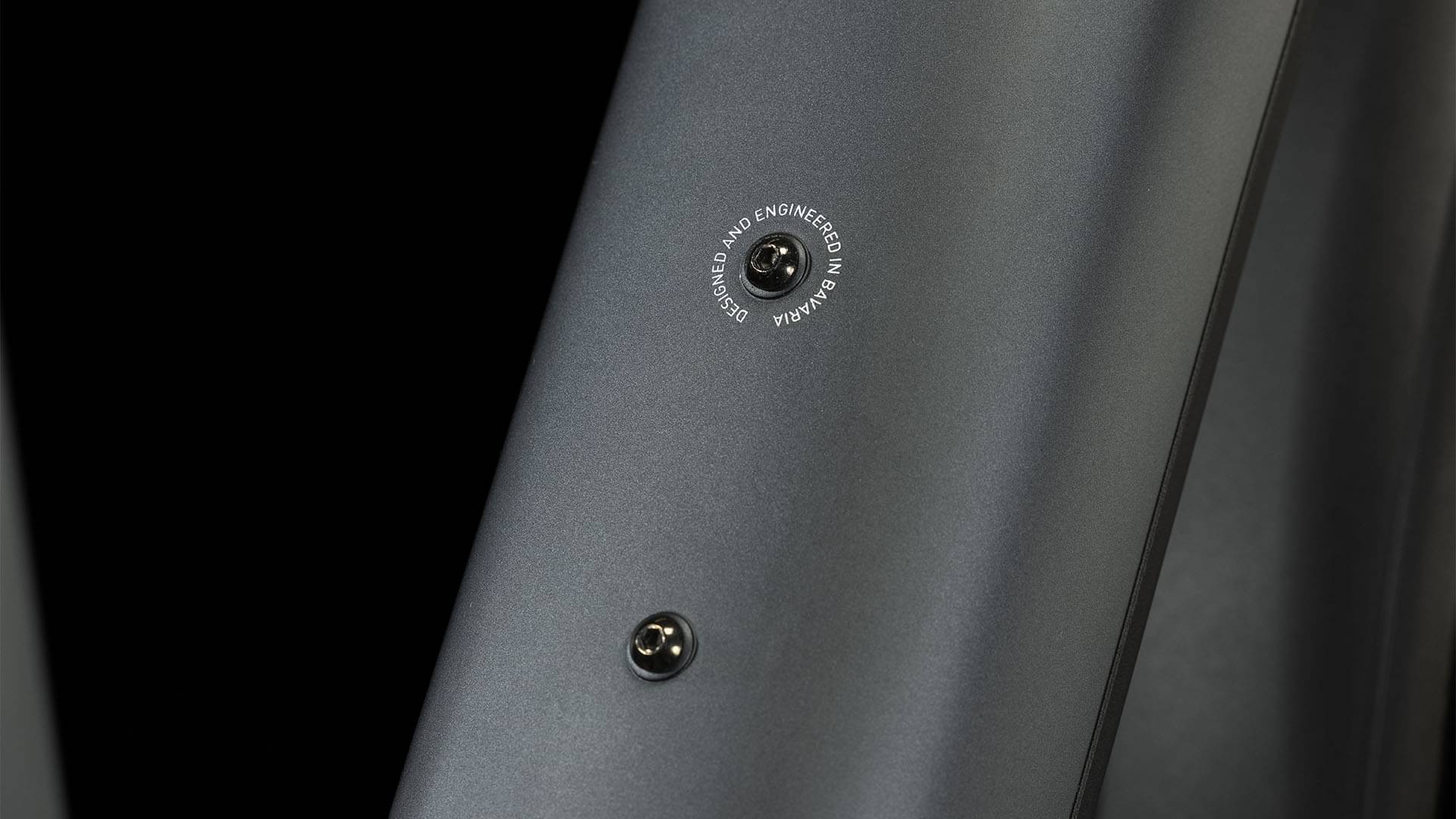

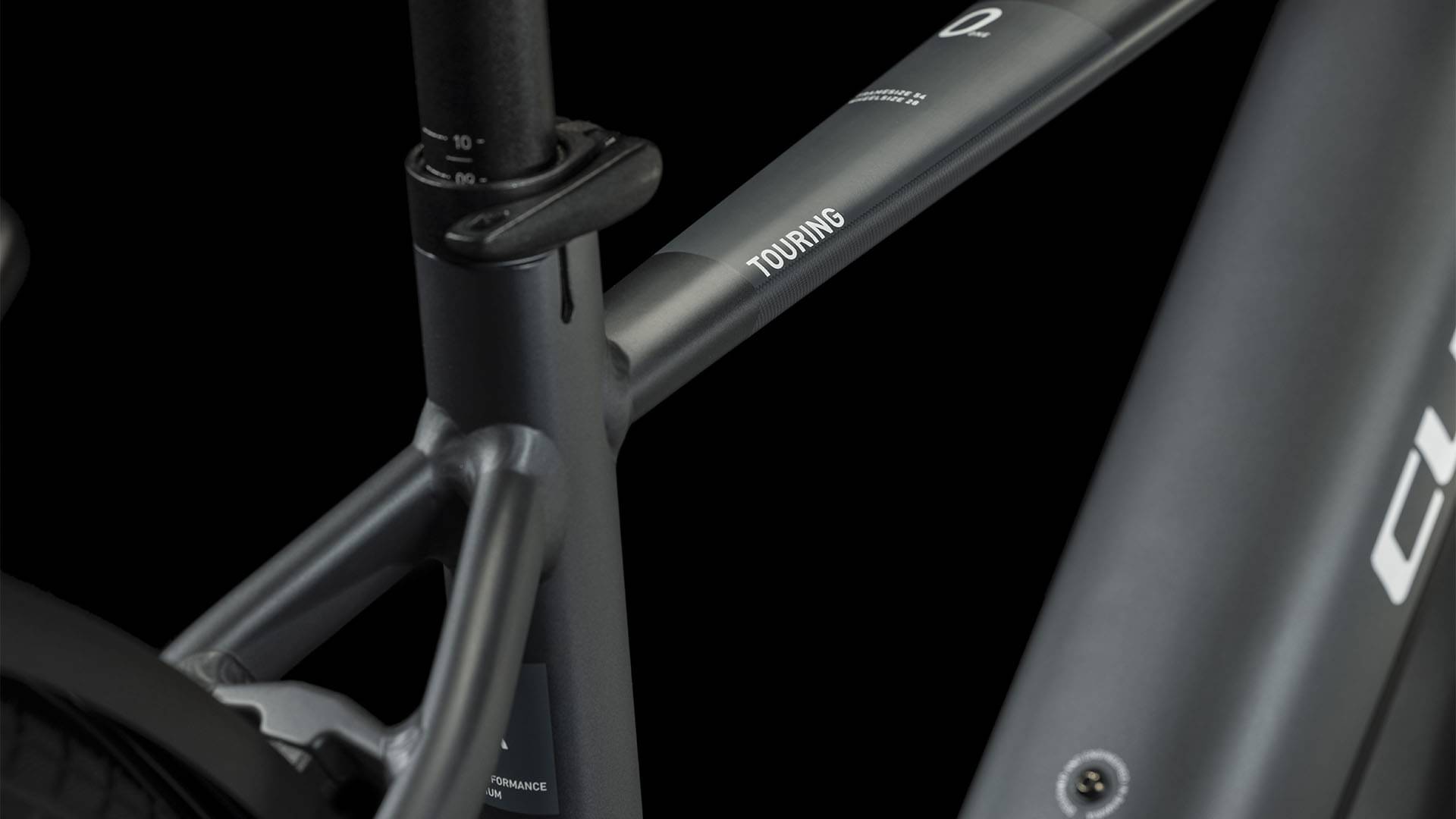

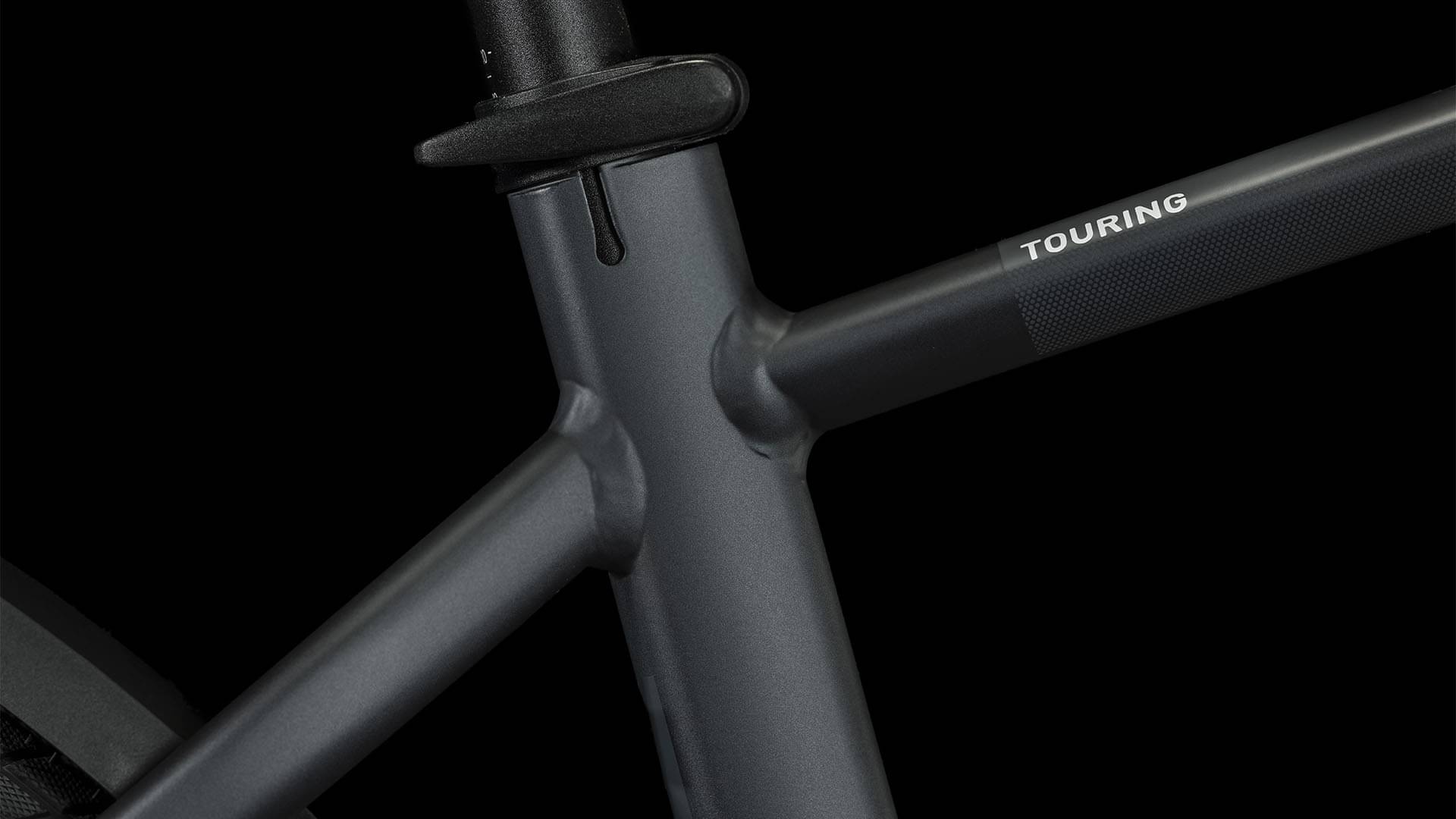

Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fully Integrated Battery, 1.5 Headtube, Semi Integrated Carrier
Suspension Fork
SR Suntour NVX30 Coil, 63mm
Drivetrain
Rear Derailleur
Shimano RD-M3100-SGS, 9-Speed
Shift Levers
Shimano SL-M3100-R, Rapidfire-Plus
Cassette
Shimano CS-HG201, 11-36T
Crank
ACID E-Crank, 40T, 170mm
Chain
KMC X9
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX23, 36H, Disc
Tires
Schwalbe Big Ben, Active, K-Guard, 55-622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
ACID Travel Comfort
Headset
ACROS AZF-1031, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 500
Remote
Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.57 mm | 1.59 mm | 1.61 mm |
| Front Center | 659 mm | 671 mm | 685 mm | 698 mm |
| Rake | 46 mm | 45 mm | 46 mm | 46 mm |
| Trail | 81 mm | 82 mm | 81 mm | 81 mm |
| Stack | 623 mm | 633 mm | 651 mm | 670 mm |
| Reach | 394 mm | 403 mm | 409 mm | 415 mm |
| Top Tube Length | 590 mm | 601 mm | 612 mm | 623 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 125 mm | 135 mm | 155 mm | 175 mm |
| Chainstay Length | 504 mm | 504 mm | 504 mm | 504 mm |
| Wheelbase | 1153 mm | 1165 mm | 1179 mm | 1192 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
TOURING HYBRID, ONE 500 completes the Cube E Touring model. CUBE released 81 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
CUBE TOURING HYBRID, ONE 500 2023 is the cheapest e-bike model and costs 2813$. CUBE TOURING HYBRID, EXC 625 2023 is the most expensive one and costs 3662$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When CUBE released this model in 2023, its price was 2813$. Comparing the average cost of a Commuter e-bike to this one, you will see that TOURING HYBRID, ONE 500 price is 9.5% more expensive.
Average weight for Commuter e-bikes
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 25.7 kg (56.66 lbs), the TOURING HYBRID, ONE 500 model is slightly heavier than average. To sum up, it’s 1.98% heavier than the average weight of Commuter e-bikes.
Overview of components
Fork

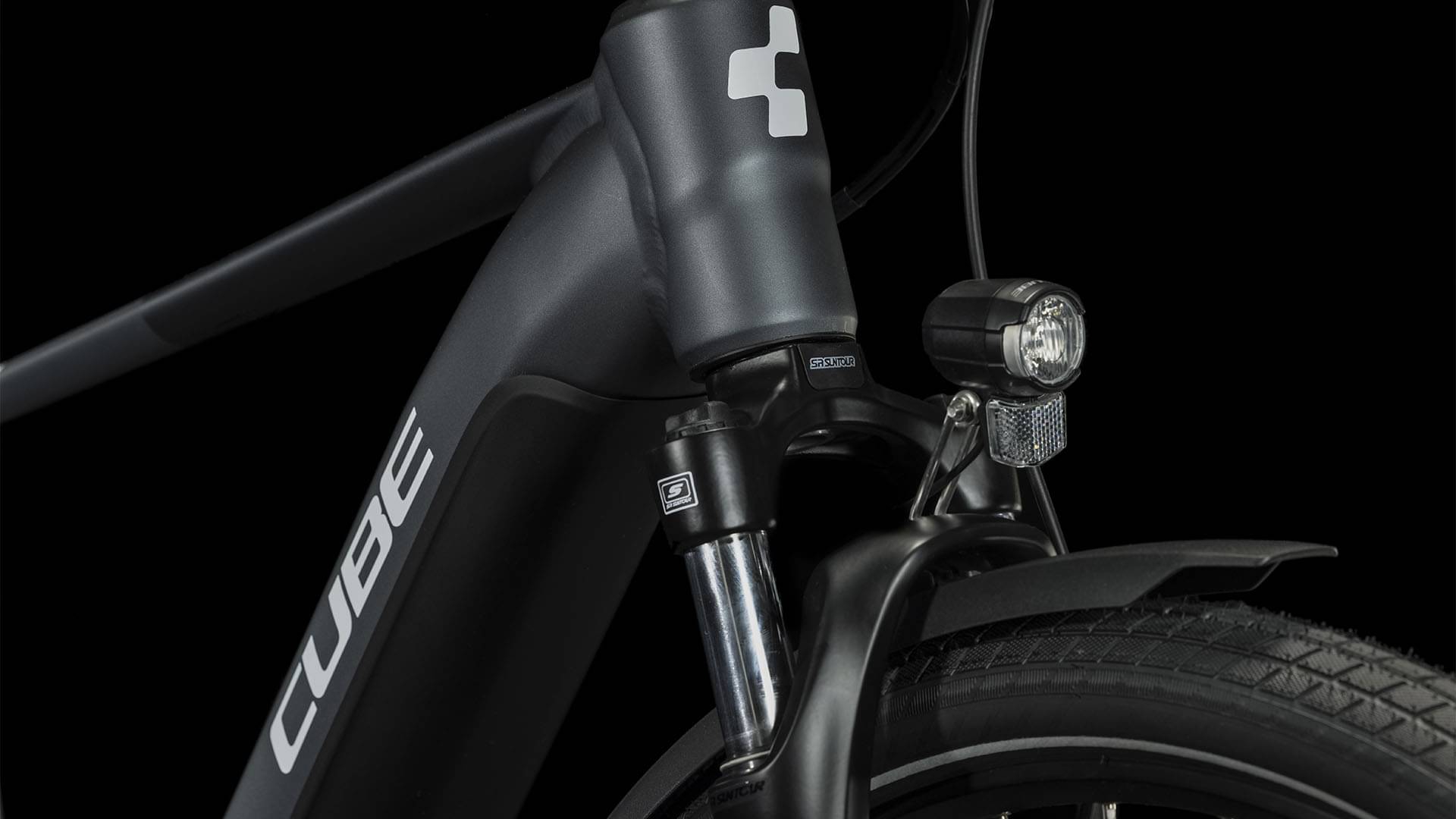

The TOURING HYBRID, ONE 500 comes factory-installed with the Suntour NVX fork. This has a travel range of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the TOURING HYBRID, ONE 500 e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
CUBE TOURING HYBRID, ONE 500 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
