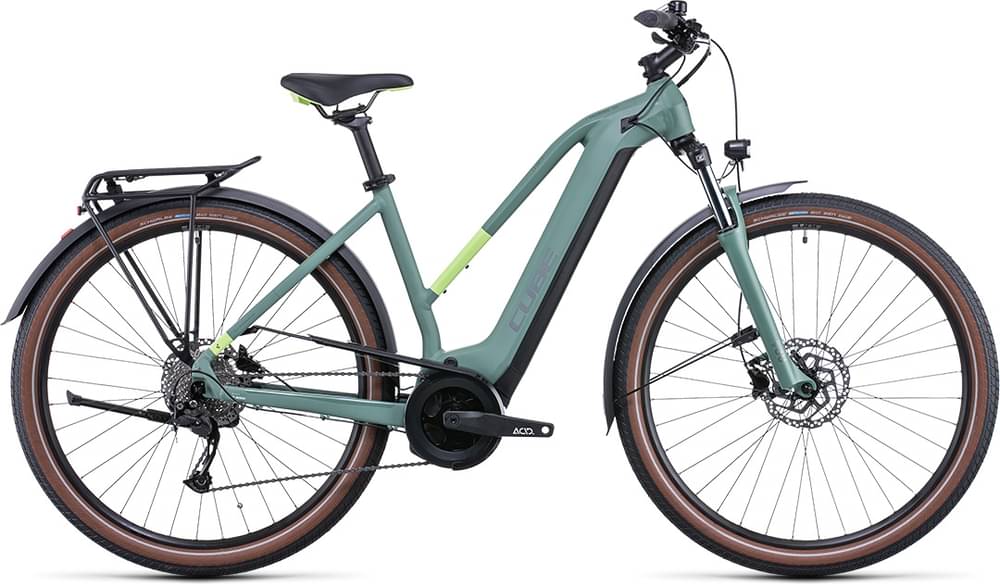

CUBE TOURING HYBRID ONE 500 Trapeze 2022
2022 E-bike
Estimate price |
2,809$
Weight | 25.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork SunTour
-
Groupset Sora -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Semi-Integrated Carrier
Suspension Fork
SR Suntour NVX30 Coil, 100mm
Drivetrain
Rear Derailleur
Shimano RD-M3100-SGS, 9-Speed
Shift Levers
Shimano SL-M3100-R, Rapidfire-Plus
Cassette
Shimano CS-HG201, 11-36T
Crank
ACID E-Crank, 40T, 175mm (EE: 170mm)
Chain
KMC X9
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Big Ben, Active, 55-622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
Natural Fit Comfort
Headset
M/Z: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.58 mm | 1.6 mm |
| Front Center | 660 mm | 672 mm | 684 mm |
| Rake | 52 mm | 51 mm | 51 mm |
| Trail | 75 mm | 76 mm | 76 mm |
| Stack | 632.5 mm | 642.2 mm | 660.6 mm |
| Reach | 398.6 mm | 406.6 mm | 412.6 mm |
| Top Tube Length | 590 mm | 601 mm | 612 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1145 mm | 1157 mm | 1169 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm |
| Standover Height | 802 mm | 776 mm | 786 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
Model Overview
TOURING HYBRID ONE 500 Trapeze completes the Cube E Touring model. CUBE released 81 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the CUBE TOURING HYBRID ONE 400 Trapeze 2022 has a starting price of 2388$. CUBE TOURING HYBRID EXC 625 2022 on the other hand is the most expensive at 3290$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2600$. If we compare this with the average Hybrid e-bike cost we notice that the price is 4.84% higher.
Average weight for Hybrid e-bikes
The average weight for Hybrid e-bikes is 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 25.6 kg (56.44 lbs), CUBE e-bike is a bit heavier than average. In short, the average Hybrid e-bike weight is 7.61% lower than this one.
TOURING HYBRID ONE 500 Trapeze components
Fork
This e-bike has the SunTour fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, CUBE TOURING HYBRID ONE 500 Trapeze 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE TOURING HYBRID ONE 500 Trapeze has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
TOURING HYBRID ONE 500 Trapeze comes in 3 sizes, that range from 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, it won’t take much to find one that’s right for you.
