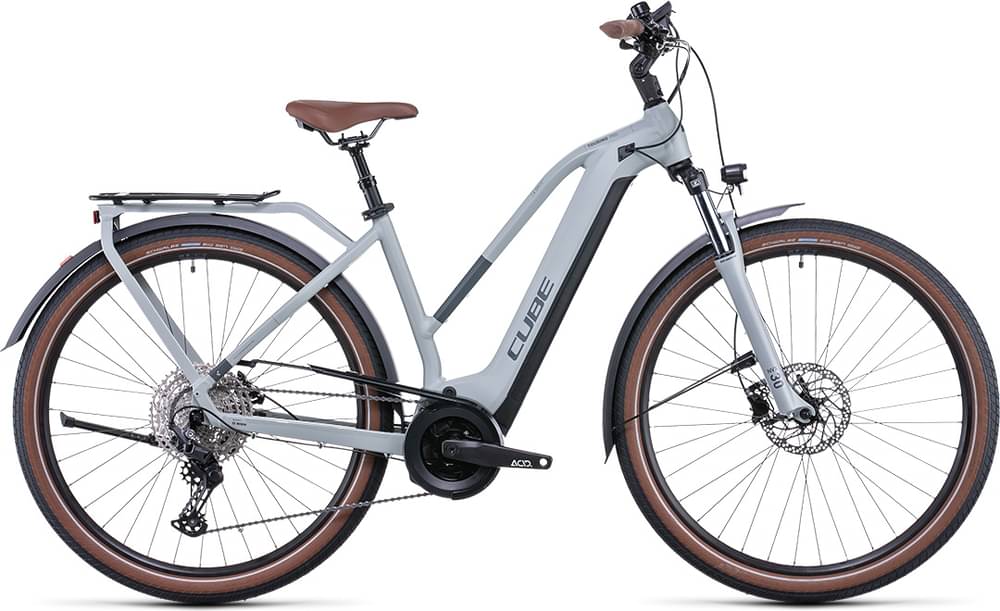

CUBE TOURING HYBRID PRO 500 Trapeze 2022
2022 E-bike
Estimate price |
3,038$
Weight | 26.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork SunTour
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Integrated Carrier 2.0
Suspension Fork
SR Suntour NVX30 Coil, 100mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100-SGS, 11-Speed
Shift Levers
Shimano Deore SL-M5100, Rapidfire-Plus
Cassette
Shimano Deore CS-M5100, 11-51T
Crank
ACID E-Crank, 40T, 175mm (EE: 170mm)
Chain
KMC X11
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Big Ben, Performance, 55-622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
Natural Fit Comfort
Headset
M/Z: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Suspension Seatpost HD, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Intuvia
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.54 mm | 1.6 mm |
| Front Center | 660 mm | 671 mm | 684 mm |
| Rake | 52 mm | 51 mm | 51 mm |
| Trail | 75 mm | 76 mm | 76 mm |
| Stack | 632.5 mm | 632.5 mm | 660.6 mm |
| Reach | 398.6 mm | 410.4 mm | 412.6 mm |
| Top Tube Length | 590 mm | 601 mm | 612 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 105 mm | 105 mm | 135 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1145 mm | 1156 mm | 1169 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm |
| Standover Height | 802 mm | 891 mm | 786 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
Model Overview
TOURING HYBRID PRO 500 Trapeze is a Cube E Touring model. CUBE launched 81 e-bikes of this model so far. Take a sneak peek at all Cube E Touring e-bikes models from 2022, by clicking here.
Model range prices
CUBE TOURING HYBRID ONE 400 Trapeze 2022 is the cheapest e-bike model and costs 2388$. CUBE TOURING HYBRID EXC 625 2022 is the most expensive one and costs 3290$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid e-bikes average price
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2022 and its price was 2813$. Comparing this to the average Hybrid e-bike price, we see that the price is 13.43% higher.
Average weight for Hybrid e-bikes
Hybrid e-bikes weigh an average of 23.79 kg (52.45 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 26.6 kg (58.64 lbs), CUBE e-bike is considerably heavier than average. To sum up, it’s 11.81% heavier than the average weight of Hybrid e-bikes.
TOURING HYBRID PRO 500 Trapeze components
Fork
The SunTour is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on TOURING HYBRID PRO 500 Trapeze are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, finding one for you shouldn’t be a problem.
