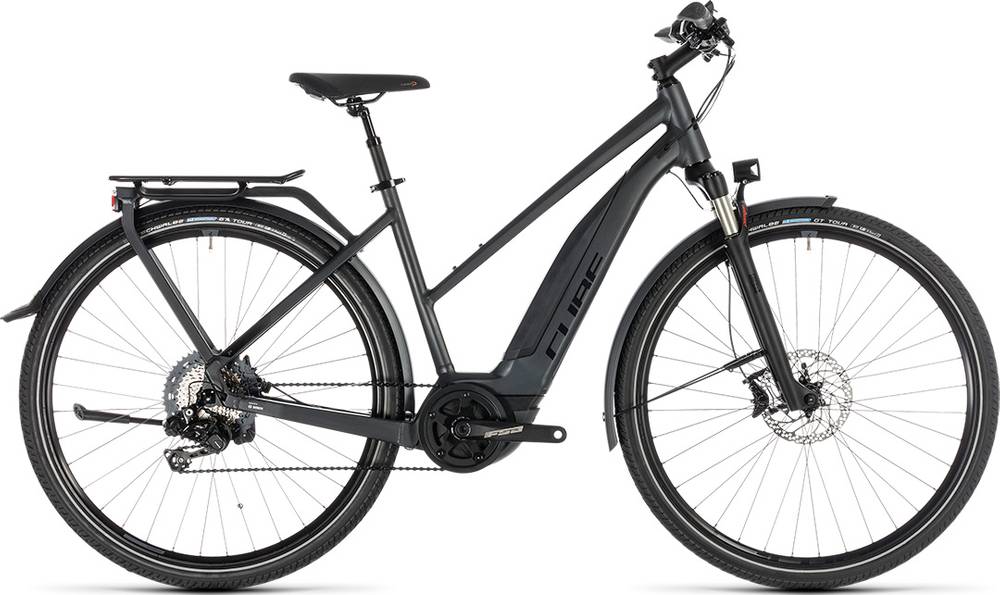

CUBE TOURING HYBRID SL 500 KIOX Trapeze 2019
2019 E-bike
Estimate price |
4,128$
Weight | 22.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset XT Di2, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Efficient Comfort Geometry, Integrated Carrier 2.0
Suspension Fork
RockShox Paragon Gold Air, 65mm, Lockout
Drivetrain
Rear Derailleur
Shimano XT Di2 RD-M8050-DGS, 11-Speed
Shift Levers
Shimano XT Di2 SW-M8050-R
Cassette
Shimano XT CS-M8000, 11-46T
Crank
FSA CK-602, 38T, 175mm
Chain
KMC X11e Turbo
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano XT HB-M8000, QR, Centerlock
Rear Hub
Shimano XT FH-M8000, QR, Centerlock
Rims
CUBE ZX20, 36H, Disc
Tires
Schwalbe Marathon GT Tour, Performance, Dualguard, 47-622
Brakes
Brakes
Shimano XT BR-M8000, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm; EE: Satori Up2 Plus, 31.8mm, Adjustable
Handlebar
CUBE Rise Trail Bar, 700mm
Grips
Natural Fit GRIP Comfort
Headset
FSA Orbit 1.5E ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Selle Royal Lookin Moderate, Royalgel™
Seatpost
CUBE Suspension Seatpost, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Kiox
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.6 mm | 1.61 mm |
| Front Center | 644 mm | 644 mm | 656 mm |
| Rake | 42 mm | 41 mm | 41 mm |
| Trail | 89 mm | 83 mm | 83 mm |
| Stack | 621 mm | 635 mm | 649 mm |
| Reach | 389 mm | 396 mm | 403 mm |
| Top Tube Length | 577 mm | 588 mm | 599 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 150 mm | 165 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1113 mm | 1113 mm | 1125 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
About this model
TOURING HYBRID SL 500 KIOX Trapeze belongs to the Cube E Touring model. There are 81 e-bikes that carry this model name. You can easily view all of the Cube E Touring e-bikes models from 2019, here.
Model range prices
The most economical model, the CUBE TOURING HYBRID ONE 400 Trapeze 2019 has a starting price of 1910$. CUBE TOURING HYBRID SL 500 KIOX Trapeze 2019 on the other hand is the most expensive at 3821$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3821$. In conclusion, this e-bike price is 54.07% more expensive than the price of the average Hybrid e-bike.
Hybrid e-bikes average weight
The average weight for Hybrid e-bikes is 23.79 kg (52.45 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
CUBE TOURING HYBRID SL 500 KIOX Trapeze it’s weighing 22.6 kg (49.82 lbs). At this weight, is a bit lighter than average. To sum up, it’s 5.27% lighter than the average weight of Hybrid e-bikes.
TOURING HYBRID SL 500 KIOX Trapeze components
Fork
The fork installed on this bike is the RockShox Paragon Gold RL model. The travel on this model is 65mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the TOURING HYBRID SL 500 KIOX Trapeze model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE TOURING HYBRID SL 500 KIOX Trapeze is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
