Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Acera, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite Trekking Comfort Double Butted
Suspension Fork
SR Suntour NEX, 63mm
Drivetrain
Rear Derailleur
Shimano RD-M360, 8-Speed
Front Derailleur
Shimano FD-TX800, Topswing, 31.8mm
Shift Levers
Shimano SL-M310, Rapidfire-Plus
Cassette
Shimano CS-HG31, 11-34T
Crank
KURBELGARNITUR Shimano FC-TY301, 48x38x28T, 175mm, BB-UN100
Chain
KMC Z51
Pedals
Trekking Gummiert
Wheels
Front Hub
Shimano DH-3D37, Hub Dynamo, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE SX20, 36H, Disc
Tires
Schwalbe Spicer, Active, 40x622
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (160/160)
Cockpit
Stem
Humpert Octopus 2, 31.8mm, Adjustable
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Natural Fit Comfort
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
CUBE Comfort SL
Seatpost
CUBE Suspension Seatpost, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.62 mm | 1.64 mm | 1.65 mm | 1.7 mm |
| Front Center | 618 mm | 625 mm | 634 mm | 650 | 665 mm |
| Rake | 42 mm | 42 mm | 42 mm | 41 mm | 50 mm |
| Trail | 82 mm | 79 mm | 76 mm | 77 mm | 67 mm |
| Stack | 584 mm | 605 mm | 626 mm | 645 mm | 663 mm |
| Reach | 369 mm | 374 mm | 381 mm | 391 mm | 391 mm |
| Top Tube Length | 550 mm | 561 mm | 575 mm | 590 mm | 605 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm | 580 mm | 620 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1048 mm | 1055 mm | 1064 mm | 1080 mm | 1095 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

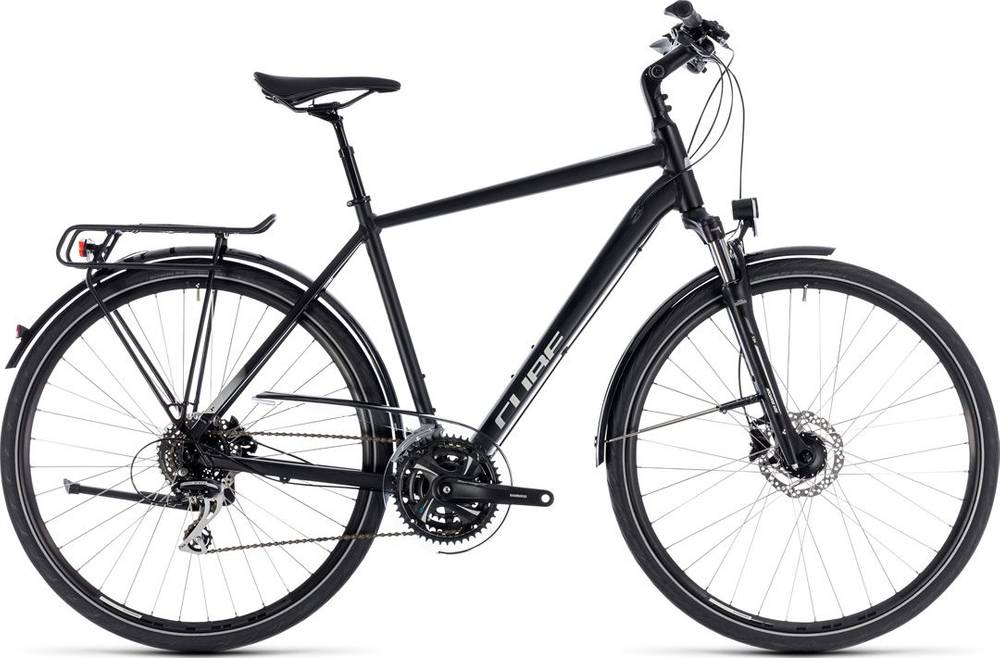

TOURING One belongs to the Cube Touring model. CUBE released 53 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid bikes average price
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Hybrid bikes average weight
Hybrid bikes have an average weight of 13.85 kg (30.53 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
TOURING One weighs 16.6 kg (36.6 lbs) and is much heavier than the average. In other words, this model is 19.86% heavier than the average Hybrid bike.
TOURING One components
Fork
CUBE TOURING One 2018 bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the TOURING One model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE TOURING One has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
