Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite Trekking Comfort Double Butted
Suspension Fork
SR Suntour NEX HLO, 63mm; EE: 50mm
Drivetrain
Rear Derailleur
Shimano XT RD-T8000, 10-Speed
Front Derailleur
Shimano Deore FD-T6000, Top-Swing, 31.8mm
Shift Levers
Shimano Deore SL-M6000, Rapidfire-Plus
Cassette
Shimano CS-HG500, 11-34T
Crank
Shimano FC-T521, 48x36x26T, Octalink, BB-ES300, 175mm
Chain
KMC X10
Pedals
Trekking Gummiert
Wheels
Front Hub
Shimano DH-3D37, Hub Dynamo, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE SX20, 36H, Disc
Tires
Schwalbe Spicer, Active, 40x622
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (160/160)
Cockpit
Stem
Satori Up2 Plus, 31.8mm, Adjustable
Handlebar
CUBE Rise Trail Bar, 680mm; EE: CUBE Comfort Shape Bar
Grips
CUBE Natural Fit Comfort
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
Selle Royal Nuvola
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.66 mm | 1.73 mm |
| Front Center | 620 mm | 629 mm | 645 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 79 mm | 76 mm | 76 mm |
| Stack | 623 mm | 626 mm | 659 mm |
| Reach | 362 mm | 376 mm | 381 mm |
| Top Tube Length | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 150 mm | 150 mm | 185 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1050 mm | 1059 mm | 1075 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
Model Overview

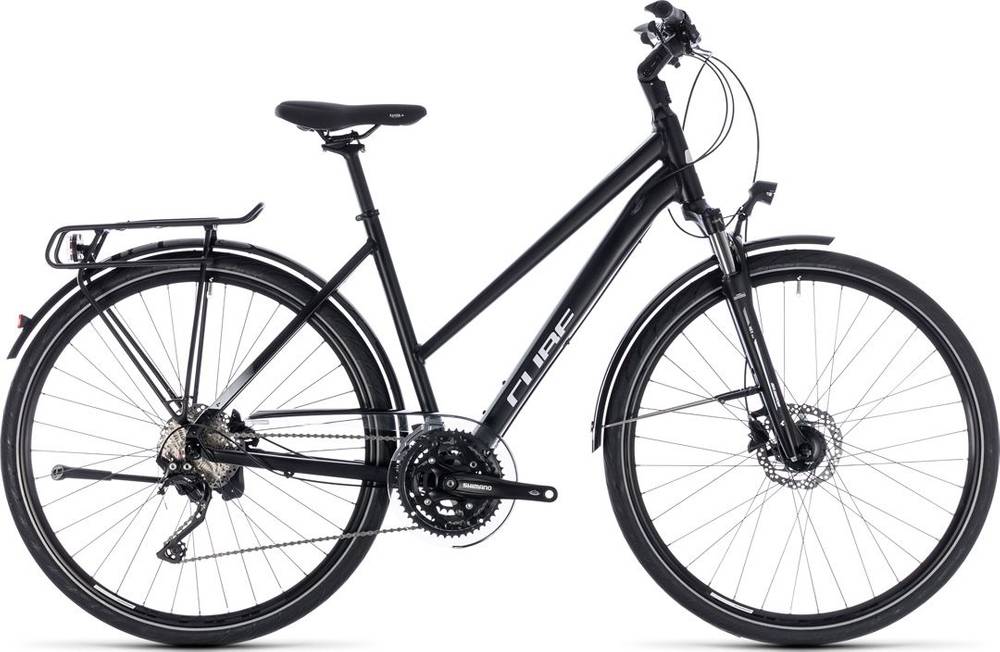

TOURING SL Trapeze is a Cube Touring model. CUBE released 53 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid bikes average price
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Hybrid bikes
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 16.5 kg (36.38 lbs), the TOURING SL Trapeze model is much heavier than average. In other words, this model is 19.13% heavier than the average Hybrid bike.
TOURING SL Trapeze components
Fork
The TOURING SL Trapeze comes factory-installed with the SunTour NEX fork. This has a travel range of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the TOURING SL Trapeze bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE TOURING SL Trapeze has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
