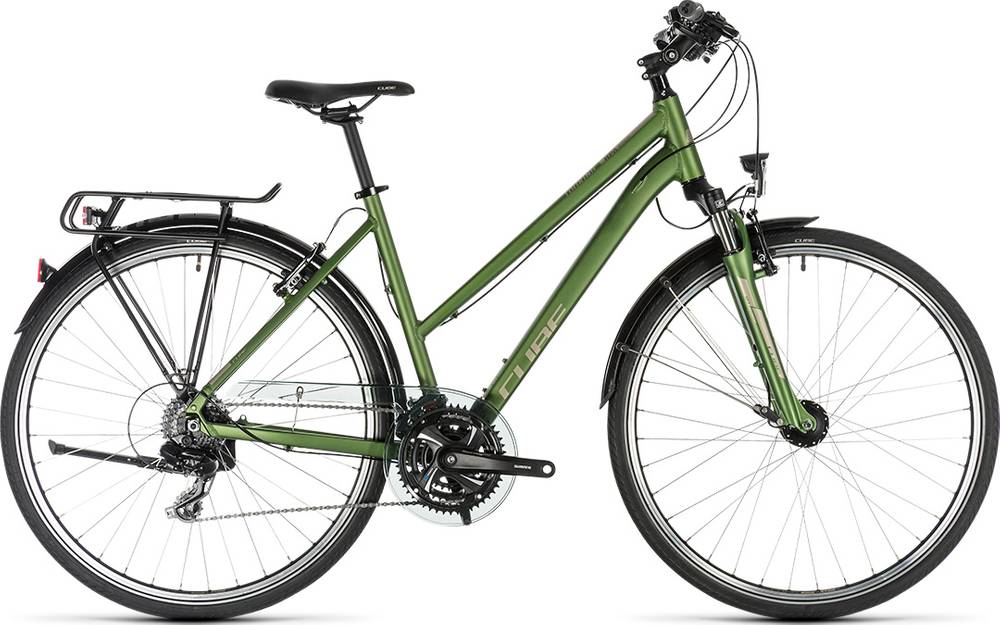

CUBE TOURING Trapeze 2019
2019 Urban
Estimate price |
630$
Weight | 16.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite Trekking Comfort Double Butted
Suspension Fork
SR Suntour NEX, 63mm; EE: 50mm
Drivetrain
Rear Derailleur
Shimano RD-TX800, 8-Speed
Front Derailleur
Shimano FD-M310, Topswing, 31.8mm
Shift Levers
Shimano ST-TX800
Cassette
Shimano CS-HG200, 12-32T
Crank
Shimano FC-TX801, 48x38x28T, BB-UN100, 175mm
Chain
KMC Z72
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano DH-C3000, Hub Dynamo, Nut
Rear Hub
Shimano FH-TX800, Nut
Rims
CUBE SX24, 36H, V-Brake
Tires
Impac Streetpac, 42x622
Brakes
Brakes
V-Brake
Cockpit
Stem
HL Adjustable, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm; EE: CUBE Comfort Shape Bar
Grips
CUBE Performance Grip
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
CUBE Comfort Tour 1.2
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.66 mm | 1.73 mm |
| Front Center | 620 mm | 629 mm | 645 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 79 mm | 76 mm | 76 mm |
| Stack | 623 mm | 626 mm | 659 mm |
| Reach | 362 mm | 376 mm | 381 mm |
| Top Tube Length | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 150 mm | 150 mm | 185 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1050 mm | 1059 mm | 1075 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
Model Overview
TOURING Trapeze completes the Cube Touring model. 53 bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
CUBE TOURING 2019 is the most economical model, with a starting price of 583$. CUBE TOURING Exc Trapeze 2019 on the other hand costs 848$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid bikes
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 583$. Comparing this to the average Hybrid bike price, we see that the price is 3.74% higher.
Hybrid bikes average weight
If we make a quick analysis of the average weight of a Hybrid bike, we get 13.85 kg (30.53 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
CUBE TOURING Trapeze it’s weighing 16.2 kg (35.71 lbs). At this weight, is much heavier than average. In conclusion, the average Hybrid bike weighs 16.97% less than TOURING Trapeze.
TOURING Trapeze components
Fork
CUBE TOURING Trapeze 2019 bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on TOURING Trapeze are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE TOURING Trapeze is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
