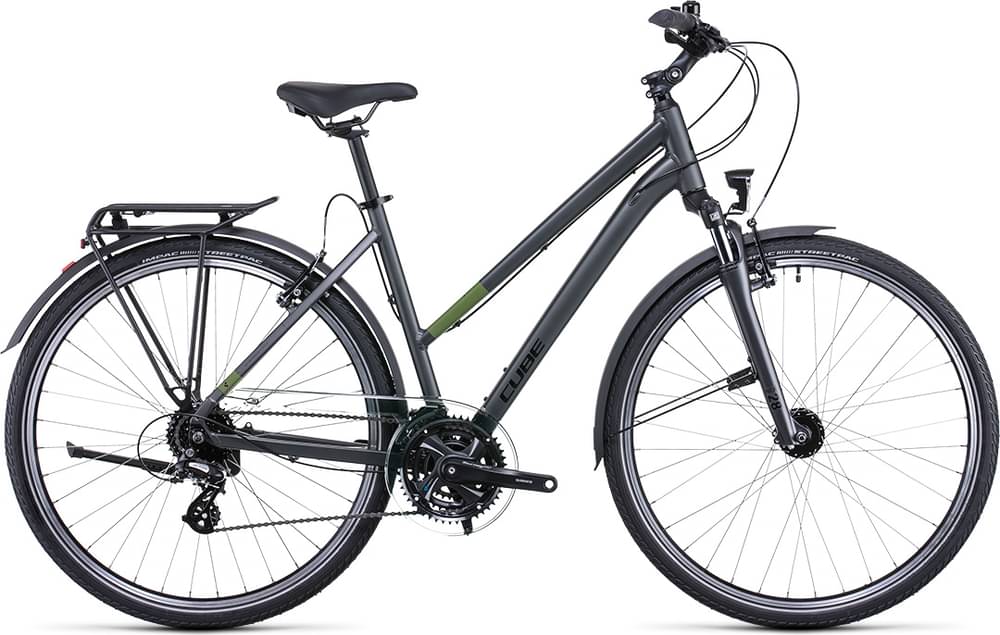

CUBE TOURING Trapeze 2022
2022 Urban
Estimate price |
779$
Weight | 17 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Comfort, Double Butted
Suspension Fork
SR Suntour NEX, 63mm
Drivetrain
Rear Derailleur
Shimano RD-M310, 8-Speed
Front Derailleur
Shimano FD-M310, Topswing, 31.8mm
Shift Levers
Shimano ST-TX800
Cassette
Shimano CS-HG200, 12-32T
Crank
Shimano FC-TX801, 48x38x28T, BB-UN100, 175mm
Chain
KMC Z72
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano DH-C3000, Hub Dynamo, Nut
Rear Hub
Shimano FH-TX800, Nut
Rims
CUBE SX24, 36H, V-Brake
Tires
CUBE Impac Streetpac, 42-622
Brakes
Brakes
V-Brake
Cockpit
Stem
HL Adjustable, 31.8mm
Handlebar
CUBE Comfort Trail Bar, 660mm
Grips
CUBE Performance Grip
Headset
CUBE H863, 1 1/8", Semi-Integrated
Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.76 mm | 1.7 mm | 1.76 mm |
| Front Center | 610 mm | 619 mm | 636 mm |
| Rake | 33 mm | 32 mm | 33 mm |
| Trail | 89 mm | 86 mm | 85 mm |
| Stack | 632 mm | 634.4 mm | 667.3 mm |
| Reach | 359.3 mm | 373.7 mm | 378.5 mm |
| Top Tube Length | 555 mm | 570 mm | 585 mm |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 150 mm | 150 mm | 185 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1050 mm | 1059 mm | 1075 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 710 mm | 714 mm | 738 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
About this model
TOURING Trapeze completes the Cube Touring model. There are 53 bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
CUBE TOURING Trapeze 2022 is the cheapest bike model and costs 721$. CUBE TOURING EXC 2022 is the most expensive one and costs 955$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid bikes average price
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 721$. If we compare this with the average Hybrid bike cost we notice that the price is 28.29% more expensive.
Hybrid bikes average weight
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 17 kg (37.48 lbs), the TOURING Trapeze model is much heavier than average. In conclusion, the average Hybrid bike weighs 22.74% less than TOURING Trapeze.
Overview of components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, CUBE TOURING Trapeze 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE TOURING Trapeze is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, it won’t take much to find one that’s right for you.
