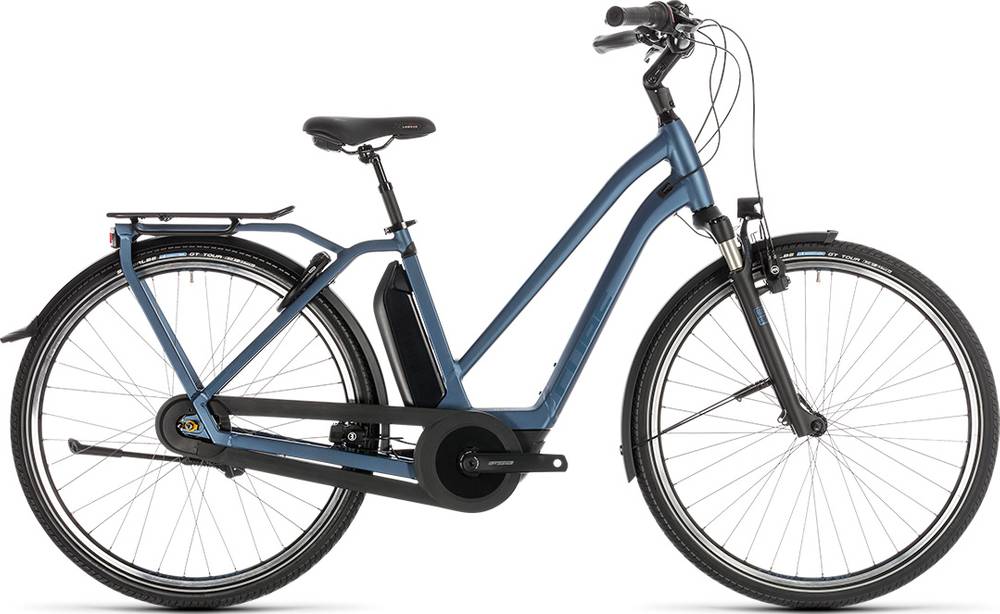

CUBE TOWN HYBRID Exc 500 Trapeze 2019
2019 E-bike
Estimate price |
3,096$
Weight | 25.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork RockShox Paragon Gold RL
-
Groupset Nexus, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Comfort Ride Geometry, Premium Comfort And Safety, Integrated Carrier 2.0, Double Butted
Suspension Fork
RockShox Paragon Gold Air, 50mm, Lockout
Drivetrain
Shift Levers
Shimano Nexus SL-C6000-8, Revoshift
Cassette
Shimano Nexus, 20T
Crank
FSA Metropolis Comfort, 40T, 165mm
Chain
KMC Z610, EcoProTeQ
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano Deore HB-T610, QR
Rear Hub
Shimano Nexus SG-C6001-8V, 8-Speed, Nut
Rims
CUBE ZX27, 36H, V-Brake
Tires
Schwalbe Marathon GT Tour, Performance, Dualguard, 47-622
Brakes
Brakes
Magura HS11, Hydr. Caliper Brake
Cockpit
Stem
Satori Up2 Plus, 31.8mm, Adjustable
Handlebar
CUBE Comfort Shape Bar
Grips
RFR Comfort, Revoshift
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
Selle Royal Lookin Classic, Royalgel™
Seatpost
CUBE Suspension Seatpost, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Intuvia
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.65 mm | 1.66 mm |
| Front Center | 642 mm | 654 mm | 666 mm |
| Rake | 42 mm | 41 mm | 41 mm |
| Trail | 82 mm | 83 mm | 83 mm |
| Stack | 638 mm | 648 mm | 662 mm |
| Reach | 383 mm | 392 mm | 399 mm |
| Top Tube Length | 590 mm | 602 mm | 614 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 465 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 165 mm | 175 mm | 190 mm |
| Chainstay Length | 537 mm | 537 mm | 537 mm |
| Wheelbase | 1171 mm | 1183 mm | 1195 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 |
Model Overview
TOWN HYBRID Exc 500 Trapeze is a Cube E Town model. CUBE released 72 e-bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
CUBE TOWN HYBRID ONE 400 2019 is the cheapest e-bike model and costs 1910$. CUBE TOWN HYBRID SL 500 2019 is the most expensive one and costs 3184$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Comfort e-bikes
If you want to purchase a solid Comfort e-bike, it is important to know that the average cost is 1957$. However, even if your budget is less than the average, you might still be able to get a top-quality Comfort e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, CUBE TOWN HYBRID Exc 500 Trapeze price was 2866$. Doing a quick comparison, we notice that TOWN HYBRID Exc 500 Trapeze price is 46.45% higher than the average cost of a Comfort e-bike.
Comfort e-bikes average weight
Comfort e-bikes weigh an average of 24.38 kg (53.75 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit heavier than average, TOWN HYBRID Exc 500 Trapeze has a weight of 25.7 kg (56.66 lbs). In short, the average Comfort e-bike weight is 5.41% lower than this one.
Overview of components
Fork
This e-bike has the RockShox Paragon Gold RL fork installed. The fork’s travel is 50mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, CUBE TOWN HYBRID Exc 500 Trapeze 2019, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The TOWN HYBRID Exc 500 Trapeze comes with Hydraulic Rim brakes. These brakes are pretty rare, and you will find them on very few bike models. In short, you can look for a bike with disk or hydraulic disk brakes.
