Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork SunTour NEX
-
Groupset Nexus, FSA -
Suspension Hardtail -
Motor Bosch 250W 40Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Premium Comfort, Double Butted
Suspension Fork
SR Suntour NEX-E25, 50mm
Drivetrain
Shift Levers
Shimano Nexus SL-C3000-7, Revoshift
Cassette
Shimano Nexus, 20T
Crank
FSA Metropolis Comfort, 40T
Chain
KMC Z610, EcoProTeQ
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano HB-TX500, QR
Rear Hub
Shimano Nexus SG-C3000-7R, 7-Speed, Nut
Rims
CUBE ZX24, 36H, V-Brake
Tires
Schwalbe Spicer, Active, 40x622
Brakes
Brakes
Magura HS11, Hydr. Caliper Brake
Cockpit
Stem
Satori Up2 Plus, 31.8mm, Adjustable
Handlebar
CUBE Comfort Shape Bar
Grips
RFR Comfort
Seat
Saddle
Selle Royal Nuvola
Seatpost
CUBE Suspension Seatpost, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active (40Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.66 mm | 1.64 mm | 1.65 mm | 1.67 mm |
| Front Center | 641 mm | 642 mm | 654 mm | 666 mm | 678 mm |
| Rake | 42 mm | 42 mm | 41 mm | 41 mm | 42 mm |
| Trail | 89 mm | 82 mm | 83 mm | 83 mm | 82 mm |
| Stack | 635 mm | 644 mm | 654 mm | 668 mm | 686 mm |
| Reach | 380 mm | 389 mm | 398 mm | 405 mm | 410 mm |
| Top Tube Length | 584 mm | 596 mm | 608 mm | 620 mm | 632 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 420 mm | 465 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 165 mm | 175 mm | 190 mm | 210 mm |
| Chainstay Length | 543 mm | 543 mm | 543 mm | 543 mm | 543 mm |
| Wheelbase | 1176 mm | 1177 mm | 1189 mm | 1201 mm | 1213 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

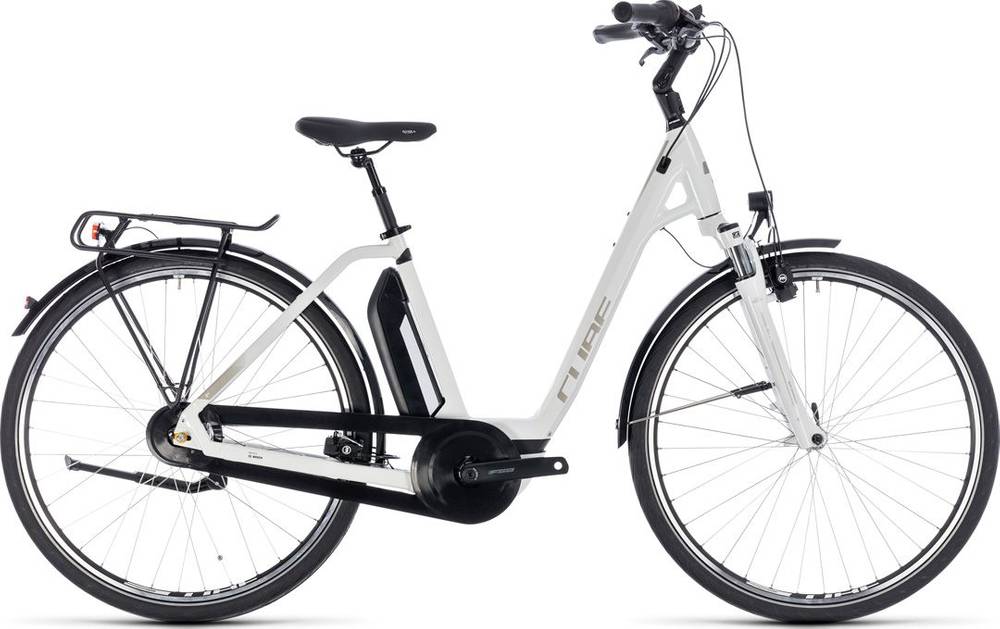

TOWN HYBRID ONE 400 belongs to the Cube E Town model. CUBE launched 72 e-bikes of this model so far. Take a sneak peek at all Cube E Town e-bikes models from 2018, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Comfort e-bikes average price
Our math shows that the average cost of a dependable Comfort e-bike is 1957$. However, even if your budget is less than the average, you might still be able to get a top-quality Comfort e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Average weight for Comfort e-bikes
On a deeper look, we notice that the average weight of a Comfort e-bike is 24.38 kg (53.75 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 23.9 kg (52.69 lbs), CUBE e-bike is slightly lighter than average. To sum up, it’s 2.01% lighter than the average weight of Comfort e-bikes.
TOWN HYBRID ONE 400 components
Fork
The TOWN HYBRID ONE 400 comes factory-installed with the SunTour NEX fork. This has a travel range of 50mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the TOWN HYBRID ONE 400 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The TOWN HYBRID ONE 400 has Hydraulic Rim brakes. They are a bit expensive, and don’t deliver such a great performance. In short, search for a bike that has hydraulic brakes, as they deliver way better performance.
