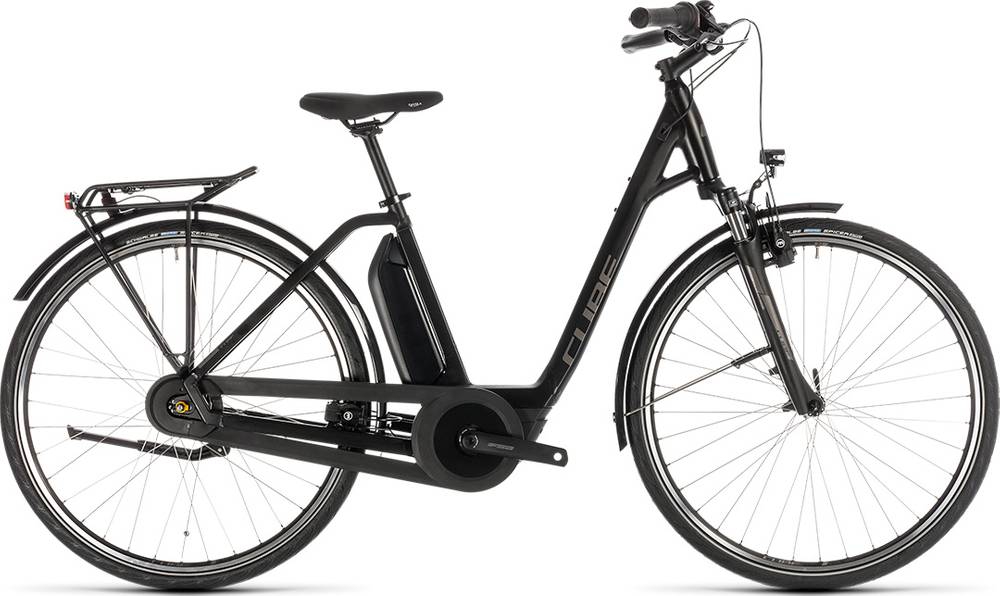

CUBE TOWN HYBRID ONE 500 2019
2019 E-bike
Estimate price |
2,293$
Weight | 23.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork SunTour NEX
-
Groupset Nexus, FSA -
Suspension Hardtail -
Motor Bosch 250W 40Nm hub-drive -
Battery Bosch PowerPack 500 -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Comfort Ride Geometry, Premium Comfort And Safety, Semi-Integrated Carrier, Double Butted
Suspension Fork
SR Suntour NEX-E25, 50mm
Drivetrain
Shift Levers
Shimano Nexus SL-C3000-7, Revoshift
Cassette
Shimano Nexus, 20T
Crank
FSA Metropolis Comfort, 40T, 165mm
Chain
KMC Z610, EcoProTeQ
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX500, QR
Rear Hub
Shimano Nexus SG-C3000-7R, 7-Speed, Nut
Rims
CUBE ZX24, 36H, V-Brake
Tires
Schwalbe Spicer, Active, 40-622
Brakes
Brakes
Magura HS11, Hydr. Caliper Brake
Cockpit
Stem
CUBE Peformance Stem Pro, 31.8mm
Handlebar
CUBE Comfort Shape Bar
Grips
RFR Comfort, Revoshift
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
Selle Royal Nuvola
Seatpost
CUBE Performance Post, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active (40Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.66 mm | 1.64 mm | 1.65 mm | 1.67 mm |
| Front Center | 641 mm | 642 mm | 654 mm | 666 mm | 678 mm |
| Rake | 42 mm | 42 mm | 41 mm | 41 mm | 42 mm |
| Trail | 89 mm | 82 mm | 83 mm | 83 mm | 82 mm |
| Stack | 635 mm | 644 mm | 654 mm | 668 mm | 686 mm |
| Reach | 380 mm | 389 mm | 398 mm | 405 mm | 410 mm |
| Top Tube Length | 584 mm | 596 mm | 608 mm | 620 mm | 632 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 420 mm | 465 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 165 mm | 175 mm | 190 mm | 210 mm |
| Chainstay Length | 543 mm | 543 mm | 543 mm | 543 mm | 543 mm |
| Wheelbase | 1176 mm | 1177 mm | 1189 mm | 1201 mm | 1213 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
TOWN HYBRID ONE 500 completes the Cube E Town model. There are 72 e-bikes that carry this model name. Take a sneak peek at all Cube E Town e-bikes models from 2019, by clicking here.
Model range prices
CUBE TOWN SPORT HYBRID ONE 400 2019 is the most affordable e-bike of this model and has a price of 1910$. On the other hand, CUBE TOWN SPORT HYBRID SL 500 Trapeze 2019, is the most expensive and costs 3184$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Comfort e-bikes
If you want an acceptable Comfort e-bike you should know that the average price is 1957$. However, even though the average price of a Comfort e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2123$. Doing a quick comparison, we notice that TOWN HYBRID ONE 500 price is 8.48% more expensive than the average cost of a Comfort e-bike.
Average weight for Comfort e-bikes
If we make a quick analysis of the average weight of a Comfort e-bike, we get 24.38 kg (53.75 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
TOWN HYBRID ONE 500 weighs 23.7 kg (52.25 lbs) and is slightly lighter than the average. To sum up, it’s 2.87% lighter than the average weight of Comfort e-bikes.
Overview of components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is 50mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The TOWN HYBRID ONE 500 2019 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The TOWN HYBRID ONE 500 has Hydraulic Rim brakes. They are a bit expensive, and don’t deliver such a great performance. In short, you can look for a bike with disk or hydraulic disk brakes.
