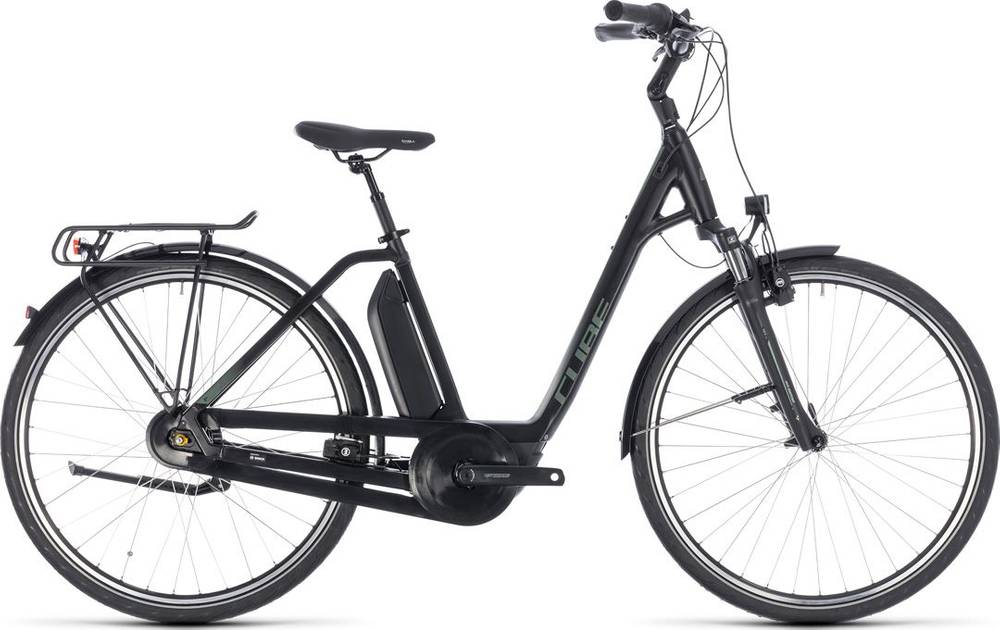

CUBE TOWN HYBRID ONE RT 400 2018
2018 E-bike
Weight | 23.8 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork SunTour NEX
-
Groupset Nexus, FSA -
Suspension Hardtail -
Motor Bosch 250W 40Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain Internally Geared Hub -
Brakes Coaster
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Premium Comfort, Double Butted
Suspension Fork
SR Suntour NEX-E25, 50mm
Drivetrain
Shift Levers
Shimano Nexus SL-C6000-8, Revoshift
Cassette
Shimano Nexus, 20T
Crank
FSA Metropolis Comfort, 40T
Chain
KMC Z610, EcoProTeQ
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano HB-TX500, QR
Rear Hub
Shimano Nexus SG-C6001-8C, 8-Speed, Coaster Brake, Nut
Rims
CUBE ZX24, 36H, V-Brake
Tires
Schwalbe Spicer, Active, 40x622
Brakes
Brakes
Magura HS11, Hydr. Caliper Brake, Coaster Brake
Cockpit
Stem
Satori Up2 Plus, 31.8mm, Adjustable
Handlebar
CUBE Comfort Shape Bar
Grips
RFR Comfort
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
Selle Royal Nuvola
Seatpost
CUBE Suspension Seatpost, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active (40Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.66 mm | 1.64 mm | 1.65 mm | 1.67 mm |
| Front Center | 641 mm | 642 mm | 654 mm | 666 mm | 678 mm |
| Rake | 42 mm | 42 mm | 41 mm | 41 mm | 42 mm |
| Trail | 89 mm | 82 mm | 83 mm | 83 mm | 82 mm |
| Stack | 635 mm | 644 mm | 654 mm | 668 mm | 686 mm |
| Reach | 380 mm | 389 mm | 398 mm | 405 mm | 410 mm |
| Top Tube Length | 584 mm | 596 mm | 608 mm | 620 mm | 632 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 420 mm | 465 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 165 mm | 175 mm | 190 mm | 210 mm |
| Chainstay Length | 543 mm | 543 mm | 543 mm | 543 mm | 543 mm |
| Wheelbase | 1176 mm | 1177 mm | 1189 mm | 1201 mm | 1213 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
TOWN HYBRID ONE RT 400 completes the Cube E Town model. CUBE launched 72 e-bikes of this model so far. Take a sneak peek at all Cube E Town e-bikes models from 2018, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Comfort e-bikes
According to our math, the average price for a trustworthy Comfort e-bike is 1957$. However, this doesn’t mean that if you spend less money on a Comfort e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Comfort e-bikes
The average weight for Comfort e-bikes is 24.38 kg (53.75 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
CUBE TOWN HYBRID ONE RT 400 it’s weighing 23.8 kg (52.47 lbs). At this weight, is slightly lighter than average. To sum up, it’s 2.44% lighter than the average weight of Comfort e-bikes.
TOWN HYBRID ONE RT 400 components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 50mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, CUBE TOWN HYBRID ONE RT 400 2018, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Coaster brakes. Coaster brakes are among the oldest brake types you can find on a bike. However, they have flaws, especially if the chain falls off.
