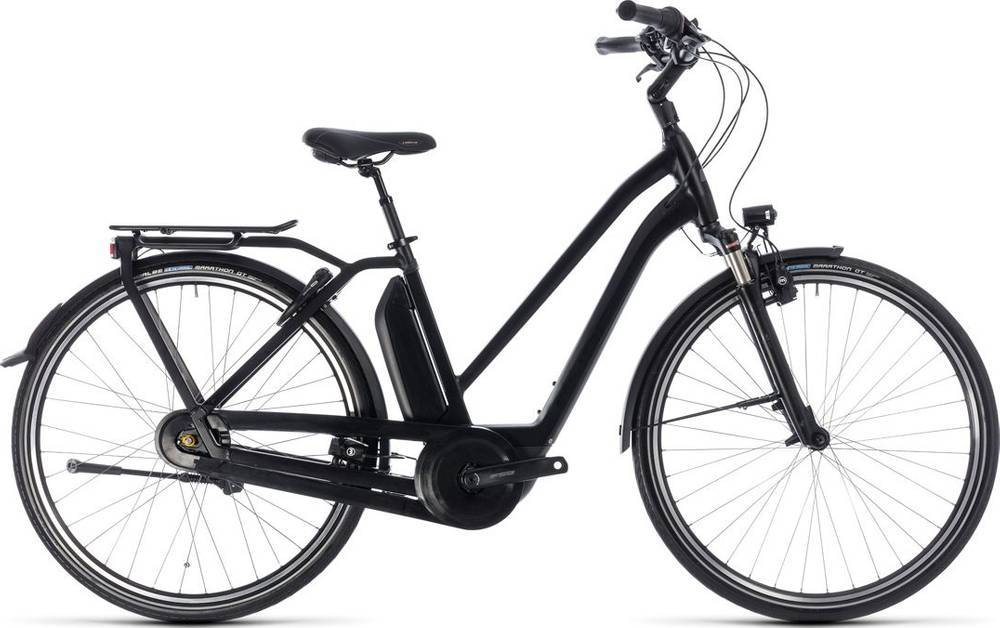

CUBE TOWN HYBRID Pro 500 Trapeze 2018
2018 E-bike
Weight | 25.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork SunTour NCX
-
Groupset Nexus, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Premium Comfort, IC 2.0, Double Butted
Suspension Fork
SR Suntour NCX D LO Air, 50mm, Lockout
Drivetrain
Shift Levers
Shimano Nexus SL-C6000-8, Revoshift
Cassette
Shimano Nexus, 20T
Crank
FSA Metropolis Comfort, 40T
Chain
KMC Z610, EcoProTeQ
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano Deore HB-T610, QR
Rear Hub
Shimano Nexus SG-C6001-8V, 8-Speed, Nut
Rims
CUBE ZX24, 36H, V-Brake
Tires
Schwalbe Marathon GT, Performance, Dualguard, 40-622
Brakes
Brakes
Magura HS11, Hydr. Caliper Brake
Cockpit
Stem
Satori Up2 Plus, 31.8mm, Adjustable
Handlebar
CUBE Comfort Shape Bar
Grips
RFR Comfort
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
Selle Royal Lookin Classic, Royalgel™
Seatpost
CUBE Suspension Seatpost, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.65 mm | 1.66 mm |
| Front Center | 642 mm | 654 mm | 666 mm |
| Rake | 42 mm | 41 mm | 41 mm |
| Trail | 82 mm | 83 mm | 83 mm |
| Stack | 638 mm | 648 mm | 662 mm |
| Reach | 383 mm | 392 mm | 399 mm |
| Top Tube Length | 590 mm | 602 mm | 614 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 465 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 165 mm | 175 mm | 190 mm |
| Chainstay Length | 537 mm | 537 mm | 537 mm |
| Wheelbase | 1171 mm | 1183 mm | 1195 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 |
About this model
TOWN HYBRID Pro 500 Trapeze completes the Cube E Town model. CUBE launched 72 e-bikes of this model so far. Take a sneak peek at all Cube E Town e-bikes models from 2018, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Comfort e-bikes average price
According to our math, the average price for a trustworthy Comfort e-bike is 1957$. However, even if your budget is less than the average, you might still be able to get a top-quality Comfort e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Comfort e-bikes average weight
On a deeper look, we notice that the average weight of a Comfort e-bike is 24.38 kg (53.75 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 25.2 kg (55.56 lbs), CUBE e-bike is slightly heavier than average. In conclusion, the average Comfort e-bike weighs 3.36% less than TOWN HYBRID Pro 500 Trapeze.
Overview of components
Fork
The fork installed on this bike is the SunTour NCX model. The travel on this model is 50mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the TOWN HYBRID Pro 500 Trapeze e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Rim brakes. They are a bit expensive, and don’t deliver such a great performance. In short, search for a bike that has hydraulic brakes, as they deliver way better performance.
