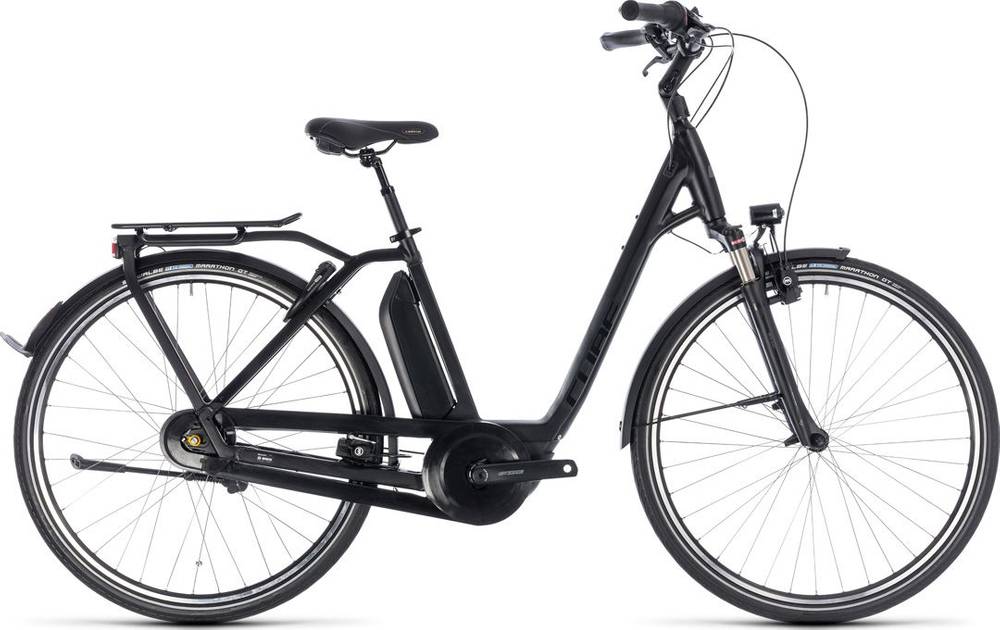

CUBE TOWN HYBRID Pro RT 500 2018
2018 E-bike
Weight | 25.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork SunTour NCX
-
Groupset Nexus, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain Internally Geared Hub -
Brakes Coaster
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Premium Comfort, IC 2.0, Double Butted
Suspension Fork
SR Suntour NCX D LO Air, 50mm, Lockout
Drivetrain
Shift Levers
Shimano Nexus SL-C6000-8, Revoshift
Cassette
Shimano Nexus, 20T
Crank
FSA Metropolis Comfort, 40T
Chain
KMC Z610, EcoProTeQ
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano Deore HB-T610, QR
Rear Hub
Shimano Nexus SG-C6001-8V, 8-Speed, Coaster Brake, Nut
Rims
CUBE ZX24, 36H, V-Brake
Tires
Schwalbe Marathon GT, Performance, Dualguard, 40-622
Brakes
Brakes
Magura HS11, Hydr. Caliper Brake, Coaster Brake
Cockpit
Stem
Satori Up2 Plus, 31.8mm, Adjustable
Handlebar
CUBE Comfort Shape Bar
Grips
RFR Comfort
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
Selle Royal Lookin Classic, Royalgel™
Seatpost
CUBE Suspension Seatpost, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.66 mm | 1.64 mm | 1.65 mm | 1.67 mm |
| Front Center | 641 mm | 642 mm | 654 mm | 666 mm | 678 mm |
| Rake | 42 mm | 42 mm | 41 mm | 41 mm | 42 mm |
| Trail | 89 mm | 82 mm | 83 mm | 83 mm | 82 mm |
| Stack | 635 mm | 644 mm | 654 mm | 668 mm | 686 mm |
| Reach | 380 mm | 389 mm | 398 mm | 405 mm | 410 mm |
| Top Tube Length | 584 mm | 596 mm | 608 mm | 620 mm | 632 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 420 mm | 465 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 165 mm | 175 mm | 190 mm | 210 mm |
| Chainstay Length | 543 mm | 543 mm | 543 mm | 543 mm | 543 mm |
| Wheelbase | 1176 mm | 1177 mm | 1189 mm | 1201 mm | 1213 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
TOWN HYBRID Pro RT 500 completes the Cube E Town model. There are 72 e-bikes that carry this model name. You can easily view all of the Cube E Town e-bikes models from 2018, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Comfort e-bikes average price
If you want to purchase a solid Comfort e-bike, it is important to know that the average cost is 1957$. However, this doesn’t mean that if you spend less money on a Comfort e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Comfort e-bikes
The average weight for Comfort e-bikes is 24.38 kg (53.75 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 25.2 kg (55.56 lbs), CUBE e-bike is slightly heavier than average. In short, the average Comfort e-bike weight is 3.36% lower than this one.
TOWN HYBRID Pro RT 500 components
Fork
The TOWN HYBRID Pro RT 500 comes factory-installed with the SunTour NCX fork. This has a travel range of 50mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the TOWN HYBRID Pro RT 500 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The TOWN HYBRID Pro RT 500 has Coaster brakes. Coaster brakes are among the oldest brake types you can find on a bike. However, if your chain falls off or snaps, your coaster brakes won’t function anymore.
