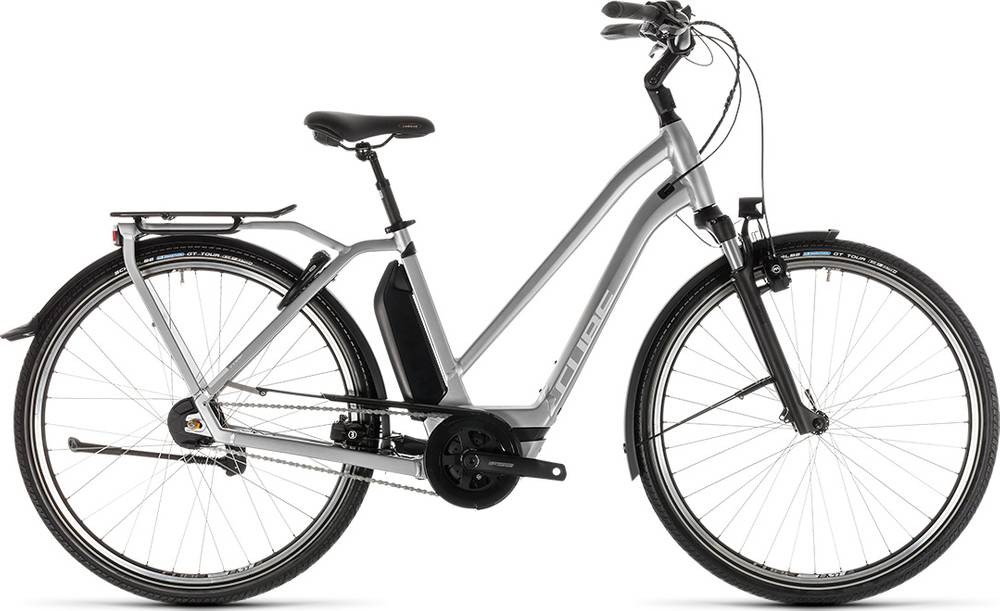

CUBE TOWN HYBRID SL 500 Trapeze 2019
2019 E-bike
Estimate price |
3,440$
Weight | 25.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork RockShox Paragon Gold RL
-
Groupset Shimano, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Comfort Ride Geometry, Premium Comfort And Safety, Integrated Carrier 2.0, Double Butted
Suspension Fork
RockShox Paragon Gold Air, 50mm, Lockout
Drivetrain
Shift Levers
Shimano SW-E6010-R, Di2
Cassette
Shimano Nexus, 18T
Crank
FSA Metropolis Comfort, 38T, 165mm
Chain
KMC Z610, EcoProTeQ
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano Deore HB-T610, QR
Rear Hub
Shimano Nexus SG-C6061-8V Premium, Di2, 8-Speed, Nut
Rims
CUBE ZX27, 36H, V-Brake
Tires
Schwalbe Marathon GT Tour, Performance, Dualguard, 47-622
Brakes
Brakes
Magura HS11, Hydr. Caliper Brake
Cockpit
Stem
Satori Up2 Plus, 31.8mm, Adjustable
Handlebar
CUBE Comfort Shape Bar
Grips
Natural Fit GRIP Comfort
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
Selle Royal Lookin Classic, Royalgel™
Seatpost
CUBE Suspension Seatpost, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Intuvia
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.65 mm | 1.66 mm |
| Front Center | 642 mm | 654 mm | 666 mm |
| Rake | 42 mm | 41 mm | 41 mm |
| Trail | 82 mm | 83 mm | 83 mm |
| Stack | 638 mm | 648 mm | 662 mm |
| Reach | 383 mm | 392 mm | 399 mm |
| Top Tube Length | 590 mm | 602 mm | 614 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 465 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 165 mm | 175 mm | 190 mm |
| Chainstay Length | 537 mm | 537 mm | 537 mm |
| Wheelbase | 1171 mm | 1183 mm | 1195 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 |
Model Overview
TOWN HYBRID SL 500 Trapeze completes the Cube E Town model. CUBE launched 72 e-bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the CUBE TOWN HYBRID ONE 400 2019 has a starting price of 1910$. CUBE TOWN SPORT HYBRID SL 500 Trapeze 2019 on the other hand is the most expensive at 3184$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Comfort e-bikes
If you want an acceptable Comfort e-bike you should know that the average price is 1957$. However, even though the average price of a Comfort e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2019 for 3184$. Comparing this to the average Comfort e-bike price, we see that the price is 62.7% higher.
Comfort e-bikes average weight
On a deeper look, we notice that the average weight of a Comfort e-bike is 24.38 kg (53.75 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 25.4 kg (56 lbs), the TOWN HYBRID SL 500 Trapeze model is slightly heavier than average. In short, the average Comfort e-bike weight is 4.18% lower than this one.
Overview of components
Fork
The TOWN HYBRID SL 500 Trapeze comes factory-installed with the RockShox Paragon Gold RL fork. This has a travel range of 50mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The TOWN HYBRID SL 500 Trapeze 2019 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Rim brakes. These brakes are pretty rare, and you will find them on very few bike models. In short, you can look for a bike with disk or hydraulic disk brakes.
