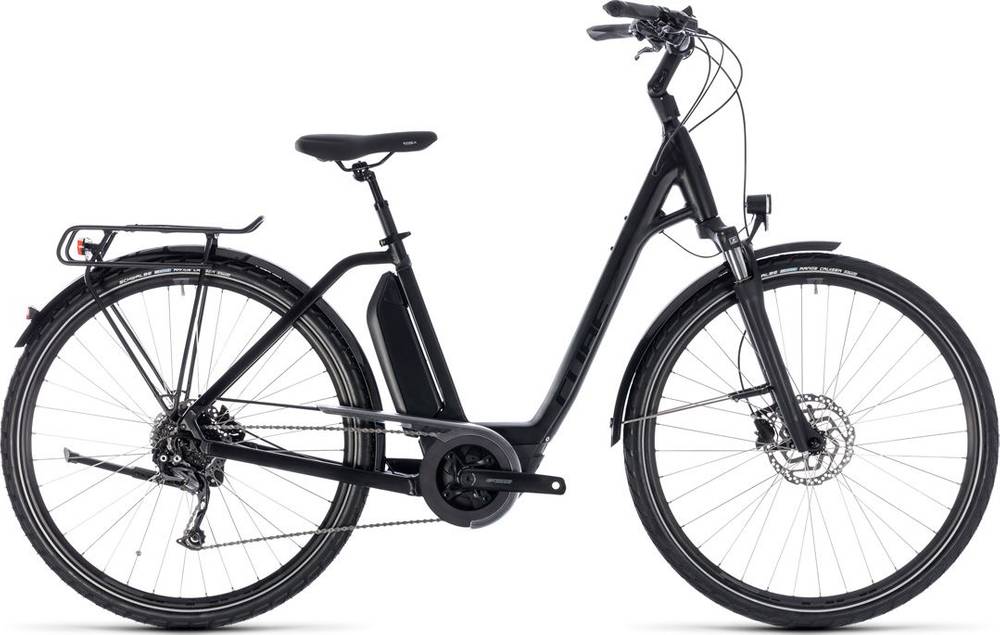

CUBE TOWN HYBRID Sport 400 2018
2018 E-bike
Weight | 23.9 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork SunTour NEX
-
Groupset Alivio, Shimano -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Premium Comfort, Double Butted
Suspension Fork
SR Suntour NEX-E25, 50mm
Drivetrain
Rear Derailleur
Shimano RD-M4000-DSGS, 9-Speed
Shift Levers
Shimano SL-M2000, Rapidfire-Plus
Cassette
Shimano CS-HG200, 11-34T
Crank
FSA Metropolis Comfort, 38T
Chain
KMC X9
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE SX20, 36H, Disc
Tires
Schwalbe Range Cruiser, Active, K-Guard, 47x622
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/160)
Cockpit
Stem
Satori Up2 Plus, 31.8mm, Adjustable
Handlebar
CUBE Comfort Shape Bar
Grips
CUBE Natural Fit Comfort
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
Selle Royal Nuvola
Seatpost
CUBE Suspension Seatpost, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.66 mm | 1.64 mm | 1.65 mm | 1.67 mm |
| Front Center | 641 mm | 642 mm | 654 mm | 666 mm | 678 mm |
| Rake | 42 mm | 42 mm | 41 mm | 41 mm | 42 mm |
| Trail | 89 mm | 82 mm | 83 mm | 83 mm | 82 mm |
| Stack | 635 mm | 644 mm | 654 mm | 668 mm | 686 mm |
| Reach | 380 mm | 389 mm | 398 mm | 405 mm | 410 mm |
| Top Tube Length | 584 mm | 596 mm | 608 mm | 620 mm | 632 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 420 mm | 465 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 165 mm | 175 mm | 190 mm | 210 mm |
| Chainstay Length | 543 mm | 543 mm | 543 mm | 543 mm | 543 mm |
| Wheelbase | 1176 mm | 1177 mm | 1189 mm | 1201 mm | 1213 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
TOWN HYBRID Sport 400 is a Cube E Town model. CUBE released 72 e-bikes variations of this model so far. You can easily view all of the Cube E Town e-bikes models from 2018, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Comfort e-bikes
If you want to purchase a solid Comfort e-bike, it is important to know that the average cost is 1957$. However, even if your budget is less than the average, you might still be able to get a top-quality Comfort e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Comfort e-bikes average weight
On a deeper look, we notice that the average weight of a Comfort e-bike is 24.38 kg (53.75 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 23.9 kg (52.69 lbs), the TOWN HYBRID Sport 400 model is slightly lighter than average. In other words, this model is 2.01% lighter than the average Comfort e-bike.
Overview of components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 50mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the TOWN HYBRID Sport 400 e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE TOWN HYBRID Sport 400 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
