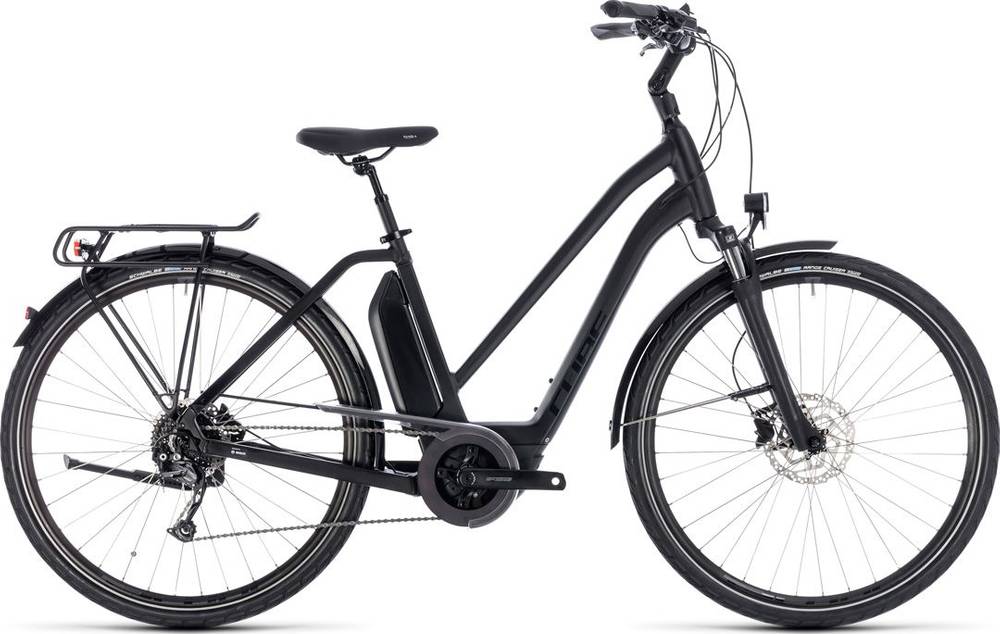

CUBE TOWN HYBRID Sport 400 Trapeze 2018
2018 E-bike
Weight | 23.9 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork SunTour NEX
-
Groupset Alivio, Shimano -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Premium Comfort, Double Butted
Suspension Fork
SR Suntour NEX-E25, 50mm
Drivetrain
Rear Derailleur
Shimano RD-M4000-DSGS, 9-Speed
Shift Levers
Shimano SL-M2000, Rapidfire-Plus
Cassette
Shimano CS-HG200, 11-34T
Crank
FSA Metropolis Comfort, 38T
Chain
KMC X9
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE SX20, 36H, Disc
Tires
Schwalbe Range Cruiser, Active, K-Guard, 47x622
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/160)
Cockpit
Stem
Satori Up2 Plus, 31.8mm, Adjustable
Handlebar
CUBE Comfort Shape Bar
Grips
CUBE Natural Fit Comfort
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
Selle Royal Nuvola
Seatpost
CUBE Suspension Seatpost, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.65 mm | 1.66 mm |
| Front Center | 642 mm | 654 mm | 666 mm |
| Rake | 42 mm | 41 mm | 41 mm |
| Trail | 82 mm | 83 mm | 83 mm |
| Stack | 638 mm | 648 mm | 662 mm |
| Reach | 383 mm | 392 mm | 399 mm |
| Top Tube Length | 590 mm | 602 mm | 614 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 465 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 165 mm | 175 mm | 190 mm |
| Chainstay Length | 537 mm | 537 mm | 537 mm |
| Wheelbase | 1171 mm | 1183 mm | 1195 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 |
About this model
TOWN HYBRID Sport 400 Trapeze is a Cube E Town model. CUBE released 72 e-bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Comfort e-bikes
If you want to purchase a solid Comfort e-bike, it is important to know that the average cost is 1957$. However, you could also get a good Comfort e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Comfort e-bikes
If we make a quick analysis of the average weight of a Comfort e-bike, we get 24.38 kg (53.75 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 23.9 kg (52.69 lbs), CUBE e-bike is slightly lighter than average. To sum up, it’s 2.01% lighter than the average weight of Comfort e-bikes.
Overview of components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 50mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the TOWN HYBRID Sport 400 Trapeze e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The TOWN HYBRID Sport 400 Trapeze has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
