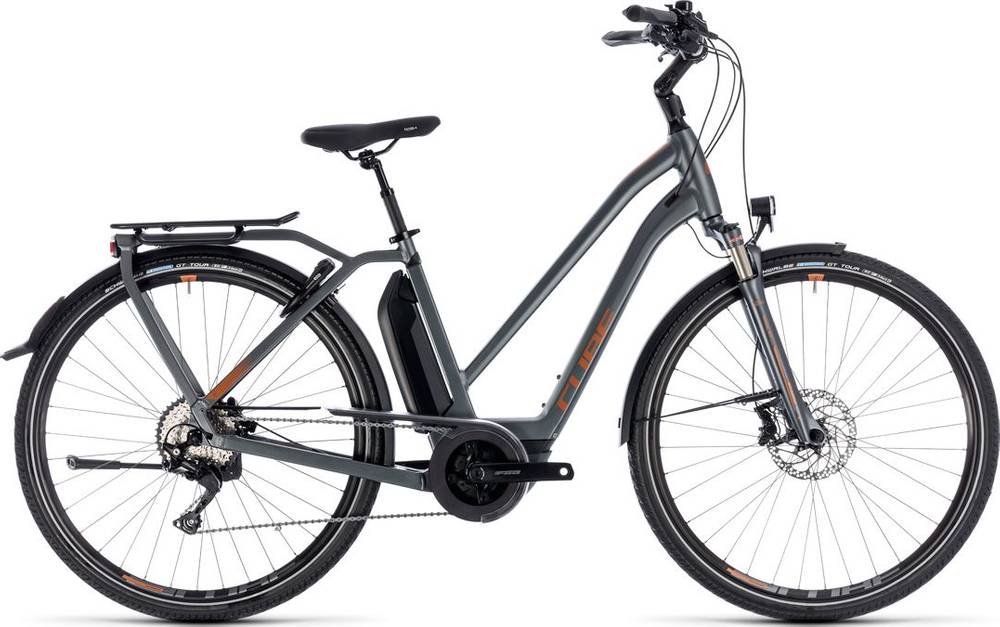

CUBE TOWN HYBRID Sport Pro 400 Trapeze 2018
2018 E-bike
Weight | 24.3 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork SunTour NCX
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Premium Comfort, IC 2.0, Double Butted
Suspension Fork
SR Suntour NCX D LO Air, 50mm, Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M6000-DGS, ShadowPlus, 10-Speed
Shift Levers
Shimano Deore SL-M6000, Rapidfire-Plus
Cassette
Shimano Deore CS-HG500, 11-42T
Crank
FSA Metropolis Comfort, 38T
Chain
KMC X10e
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano Deore HB-M6000, QR, Centerlock
Rear Hub
Shimano Deore FH-M6000, QR, Centerlock
Rims
CUBE SX20, 36H, Disc
Tires
Schwalbe Marathon GT Tour, Performance, Dualguard, 47-622
Brakes
Brakes
Shimano Deore BR-M6000, Hydr. Disc Brake (180/160)
Cockpit
Stem
Satori Up2 Plus, 31.8mm, Adjustable
Handlebar
CUBE Comfort Shape Bar
Grips
CUBE Natural Fit Comfort
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
Selle Royal Nuvola
Seatpost
CUBE Suspension Seatpost, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.65 mm | 1.66 mm |
| Front Center | 642 mm | 654 mm | 666 mm |
| Rake | 42 mm | 41 mm | 41 mm |
| Trail | 82 mm | 83 mm | 83 mm |
| Stack | 638 mm | 648 mm | 662 mm |
| Reach | 383 mm | 392 mm | 399 mm |
| Top Tube Length | 590 mm | 602 mm | 614 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 465 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 165 mm | 175 mm | 190 mm |
| Chainstay Length | 537 mm | 537 mm | 537 mm |
| Wheelbase | 1171 mm | 1183 mm | 1195 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 |
Model Overview
TOWN HYBRID Sport Pro 400 Trapeze is part of the Cube E Town model. 72 e-bikes variations carry this model name so far. You can easily view all of the Cube E Town e-bikes models from 2018, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Comfort e-bikes average price
If you want to purchase a solid Comfort e-bike, it is important to know that the average cost is 1957$. However, even though the average price of a Comfort e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Comfort e-bikes average weight
Comfort e-bikes have an average weight of 24.38 kg (53.75 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
CUBE TOWN HYBRID Sport Pro 400 Trapeze it’s weighing 24.3 kg (53.57 lbs). At this weight, is slightly lighter than average. In conclusion, the average Comfort e-bike weighs 0.33% more than TOWN HYBRID Sport Pro 400 Trapeze.
Overview of components
Fork
The SunTour NCX is included from the factory. It has a travel distance of 50mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the TOWN HYBRID Sport Pro 400 Trapeze model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE TOWN HYBRID Sport Pro 400 Trapeze is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
