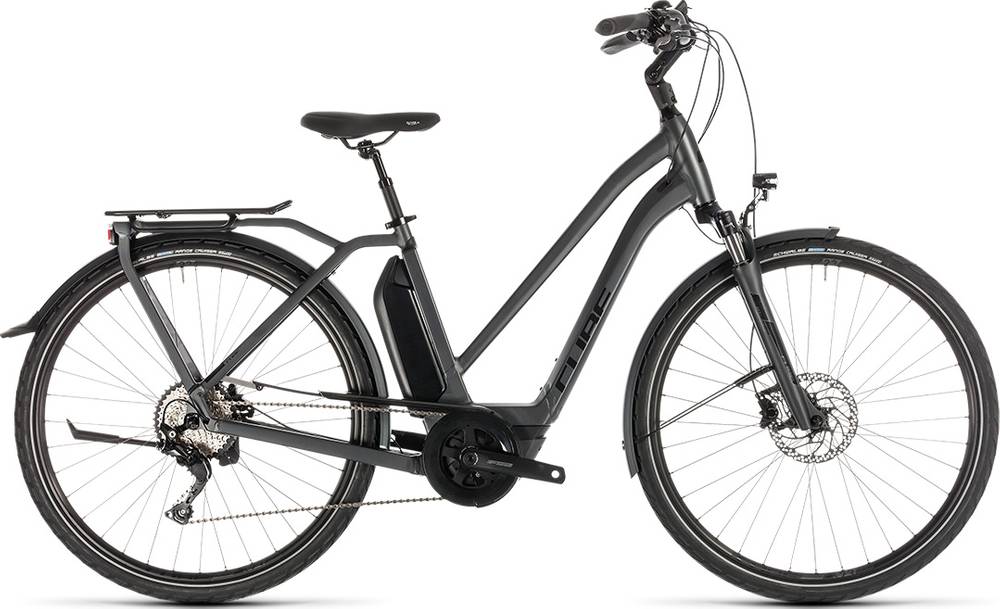

CUBE TOWN SPORT HYBRID Pro 500 Trapeze 2019
2019 E-bike
Estimate price |
2,752$
Weight | 24.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork SunTour NEX
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Comfort Ride Geometry, Premium Comfort And Safety, Integrated Carrier 2.0, Double Butted
Suspension Fork
SR Suntour NEX-E25 HLO, 50mm, Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M6000-DGS, ShadowPlus, 10-Speed
Shift Levers
Shimano Deore SL-M6000, Rapidfire-Plus
Cassette
Shimano Deore CS-HG500, 11-42T
Crank
FSA Metropolis Comfort, 38T, 165mm
Chain
KMC X10e
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Range Cruiser, Active, K-Guard, 47-622
Brakes
Brakes
Shimano BR-MT400, Hydr. Disc Brake (180/160)
Cockpit
Stem
Satori Up2 Plus, 31.8mm, Adjustable
Handlebar
CUBE Comfort Shape Bar
Grips
Natural Fit GRIP Comfort
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
Selle Royal Nuvola
Seatpost
CUBE Suspension Seatpost, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Intuvia
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.65 mm | 1.66 mm |
| Front Center | 642 mm | 654 mm | 666 mm |
| Rake | 42 mm | 41 mm | 41 mm |
| Trail | 82 mm | 83 mm | 83 mm |
| Stack | 638 mm | 648 mm | 662 mm |
| Reach | 383 mm | 392 mm | 399 mm |
| Top Tube Length | 590 mm | 602 mm | 614 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 465 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 165 mm | 175 mm | 190 mm |
| Chainstay Length | 537 mm | 537 mm | 537 mm |
| Wheelbase | 1171 mm | 1183 mm | 1195 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 |
Model Overview
TOWN SPORT HYBRID Pro 500 Trapeze is a Cube E Town model. 72 e-bikes variations carry this model name so far. You can easily view all of the Cube E Town e-bikes models from 2019, here.
Model range prices
The most economical model, the CUBE TOWN HYBRID ONE 400 2019 has a starting price of 1910$. CUBE TOWN SPORT HYBRID SL 500 Trapeze 2019 on the other hand is the most expensive at 3184$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Comfort e-bikes
Our math shows that the average cost of a dependable Comfort e-bike is 1957$. However, even though the average price of a Comfort e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, CUBE TOWN SPORT HYBRID Pro 500 Trapeze price was 2547$. If we compare this with the average Comfort e-bike cost we notice that the price is 30.15% higher.
Average weight for Comfort e-bikes
Comfort e-bikes weigh an average of 24.38 kg (53.75 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
TOWN SPORT HYBRID Pro 500 Trapeze weighs 24.6 kg (54.23 lbs) and is slightly heavier than the average. In other words, this model is 0.9% heavier than the average Comfort e-bike.
Overview of components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is 50mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on TOWN SPORT HYBRID Pro 500 Trapeze are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE TOWN SPORT HYBRID Pro 500 Trapeze is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
