Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Groupset XT, Deore -
Suspension Rigid -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite Trekking Sport 29 Taper Double Butted
Suspension Fork
Aluminium Rigid Fork 29" Tapered
Drivetrain
Rear Derailleur
Shimano XT RD-T8000, 10-Speed
Front Derailleur
Shimano Deore FD-T6000, Top-Swing, 31.8mm
Shift Levers
Shimano Deore SL-M6000, Rapidfire-Plus
Cassette
Shimano CS-HG500, 11-34T
Crank
Shimano FC-T551, Hollowtech II, 48x36x26T, 175mm, Integrated BB, Chainguard
Chain
KMC X10
Pedals
Trekking Gummiert
Wheels
Front Hub
Shimano DH-3D37, Hub Dynamo, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX21, 32H, Disc, Tubeless Ready
Tires
Schwalbe Big Apple, Performance, 29x2.15
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Natural Fit Comfort
Headset
FSA Orbit 1.5B ZS-1, Semi-Integrated, Top 1 1/8" Bottom 1 1/2"
Seat
Saddle
Selle Royal Ariel
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.51 mm | 1.56 mm | 1.6 mm | 1.64 mm |
| Front Center | 637 mm | 637 mm | 637 mm | 647 mm | 658 mm |
| Rake | 44 mm | 44 mm | 45 mm | 45 mm | 45 mm |
| Trail | 82 mm | 75 mm | 68 mm | 68 mm | 68 mm |
| Stack | 581 mm | 604 mm | 627 mm | 646 mm | 669 mm |
| Reach | 398 mm | 400 mm | 402 mm | 405 mm | 408 mm |
| Top Tube Length | 557 mm | 571 mm | 586 mm | 601 mm | 611 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 69 ° | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 115 mm | 135 mm | 155 mm | 175 mm | 200 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1104 mm | 1104 mm | 1104 mm | 1114 mm | 1125 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

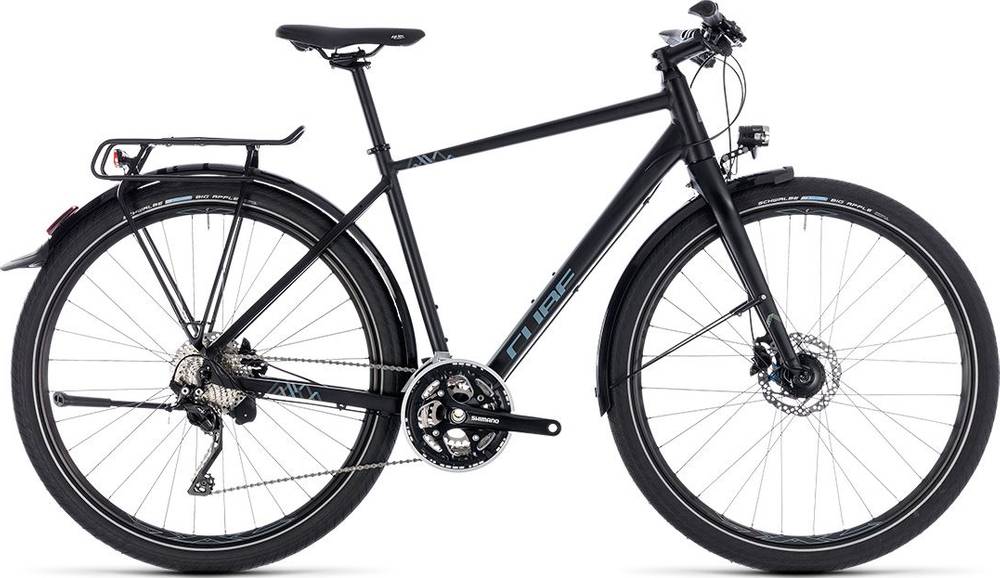

TRAVEL Exc is a Cube Travel model. 56 bikes variations carry this model name so far. Take a sneak peek at all Cube Travel bikes models from 2018, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Touring bikes
If you want an acceptable Touring bike you should know that the average price is 1007$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Touring bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Touring bikes average weight
If we make a quick analysis of the average weight of a Touring bike, we get 13.35 kg (29.43 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
considerably heavier than average, TRAVEL Exc has a weight of 15.3 kg (33.73 lbs). In other words, this model is 14.61% heavier than the average Touring bike.
TRAVEL Exc components
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
When leaving the production line, the TRAVEL Exc model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The TRAVEL Exc comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
