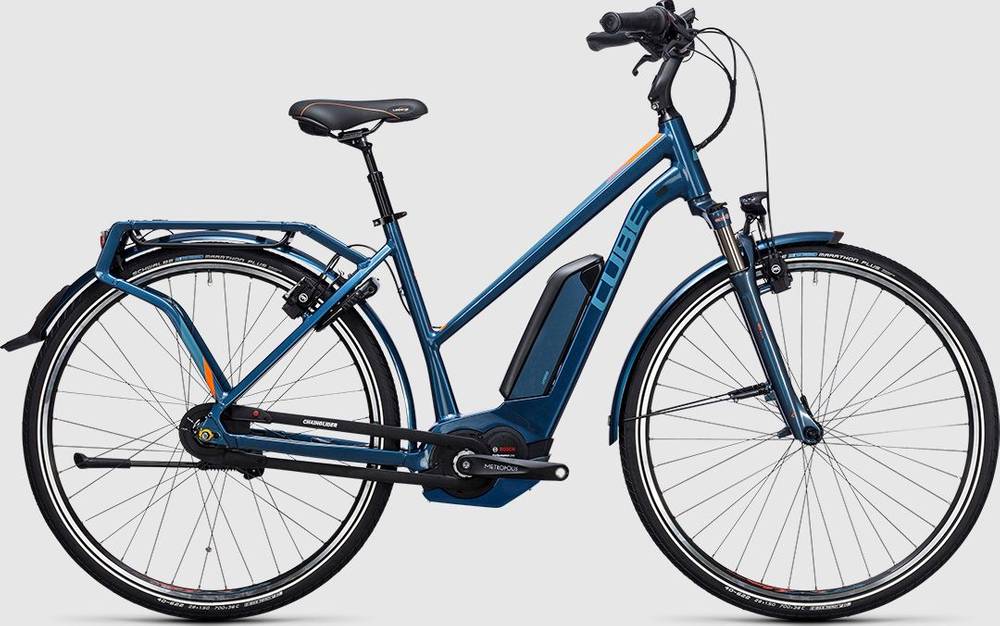

CUBE TRAVEL HYBRID Pro 400 2017
2017 E-bike
Weight | 25.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork SunTour NCX
-
Groupset Nexus, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Hybrid Premium Comfort, IC, Double Butted
Suspension Fork
SR Suntour NCX D LO Air, 75mm
Drivetrain
Shift Levers
Shimano Nexus SL-8S31, Revoshift
Crank
FSA Metropolis Urban AL-8, 18T
Chain
KMC Z610, EcoProTeQ
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano Deore HB-T610, QR
Rear Hub
Shimano Nexus SG-C6001-8V, 8-Speed, Nut
Rims
CUBE ZX24, 36H, Disc
Tires
Schwalbe Marathon Plus, Flatless, 40-622
Brakes
Brakes
Magura HS11, Hydr. Caliper Brake
Cockpit
Stem
CUBE Comfort City Stem, 31.8mm
Handlebar
CUBE Comfort Shape Bar
Grips
RFR Comfort
Headset
FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm); EE: FSA No.10, Semi-Integrated
Seat
Saddle
Selle Royal Lookin Classic, Royalgel™
Seatpost
CUBE Suspension Seatpost, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Performance (63Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.6 mm | 1.68 mm |
| Front Center | 637 mm | 644 mm | 651 mm |
| Rake | 42 mm | 42 mm | 47 mm |
| Trail | 86 mm | 82 mm | 70 mm |
| Stack | 631 mm | 633 mm | 668 mm |
| Reach | 384 mm | 396 mm | 397 mm |
| Top Tube Length | 575 mm | 588 mm | 599 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 71 ° |
| Head Tube Length | 150 mm | 150 mm | 185 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1106 mm | 1113 mm | 1120 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
Model Overview
TRAVEL HYBRID Pro 400 belongs to the Cube E Travel model. CUBE released 17 e-bikes variations of this model so far. You can easily view all of the Cube E Travel e-bikes models from 2017, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Comfort e-bikes average price
If you want an acceptable Comfort e-bike you should know that the average price is 1957$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Comfort e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Comfort e-bikes
The average weight for Comfort e-bikes is 24.38 kg (53.75 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
CUBE TRAVEL HYBRID Pro 400 it’s weighing 25.2 kg (55.56 lbs). At this weight, is slightly heavier than average. To sum up, it’s 3.36% heavier than the average weight of Comfort e-bikes.
Overview of components
Fork
This e-bike has the SunTour NCX fork installed. The fork’s travel is 75mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the TRAVEL HYBRID Pro 400 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE TRAVEL HYBRID Pro 400 is equipped with Hydraulic Rim brakes. They are a bit expensive, and don’t deliver such a great performance. In short, you can look for a bike with disk or hydraulic disk brakes.
