Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Nexus, FSA -
Suspension Hardtail -
Motor Bosch 250W 48Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain Internally Geared Hub -
Brakes Coaster
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Hybrid Comfort, Double Butted
Suspension Fork
SR Suntour NEX-E25, 63mm
Drivetrain
Shift Levers
Shimano Nexus SL-8S31, Revoshift
Crank
FSA Metropolis Urban AL-8, 18T
Chain
KMC Z610, EcoProTeQ
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano HB-TX800, QR
Rear Hub
Shimano Nexus SG-C6001-8C, 8-Speed, Coaster Brake, Nut
Rims
CUBE ZX24, 36H, V-Brake
Tires
Schwalbe Spicer, Active, 40x622
Brakes
Brakes
Magura HS11, Hydr. Caliper Brake
Cockpit
Stem
Humpert Octopus50 Ahead, Adjustable, 31.8mm
Handlebar
CUBE Comfort Shape Bar
Grips
RFR Comfort
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
CUBE Comfort City 1.2
Seatpost
CUBE Suspension Seatpost, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active (48Nm) Cruise (250Watt) Back Pedal Brake
Battery
Bosch PowerPack 500
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.67 mm | 1.73 mm | 1.78 mm |
| Front Center | 638 mm | 646 mm | 652 mm | 646 mm |
| Rake | 41 mm | 42 mm | 48 mm | 32 mm |
| Trail | 87 mm | 82 mm | 69 mm | 86 mm |
| Stack | 652 mm | 654 mm | 680 mm | 706 mm |
| Reach | 379 mm | 391 mm | 394 mm | 396 mm |
| Top Tube Length | 576 mm | 589 mm | 600 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 475 mm | 500 mm | 540 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 160 mm | 160 mm | 185 mm | 210 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1118 mm | 1126 mm | 1132 mm | 1126 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model

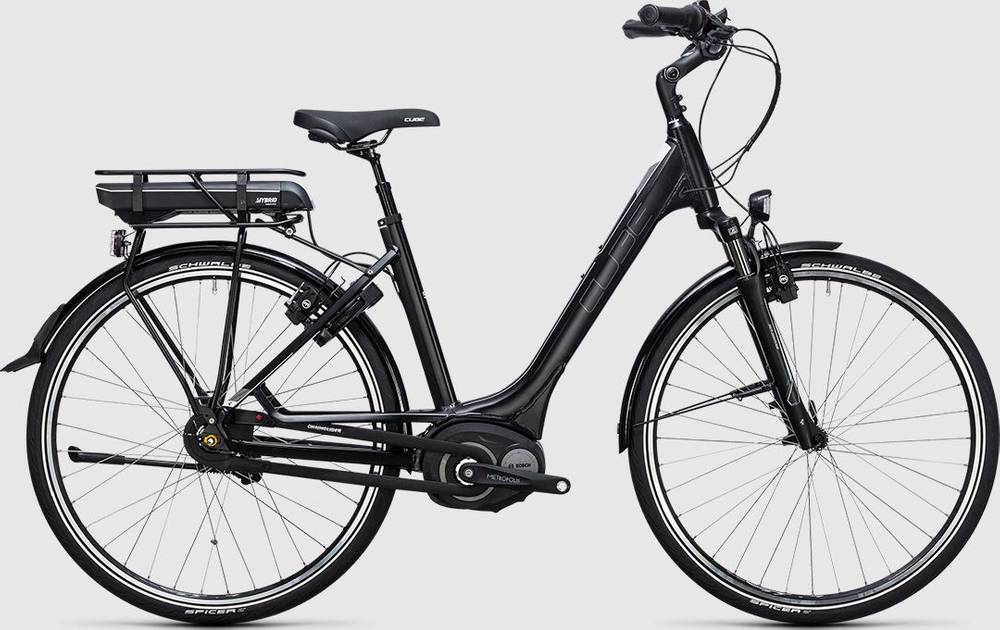

TRAVEL HYBRID RT 500 is a Cube E Travel model. CUBE launched 17 e-bikes of this model so far. Take a sneak peek at all Cube E Travel e-bikes models from 2017, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Comfort e-bikes
According to our math, the average price for a trustworthy Comfort e-bike is 1957$. However, this doesn’t mean that if you spend less money on a Comfort e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Comfort e-bikes
Comfort e-bikes have an average weight of 24.38 kg (53.75 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
TRAVEL HYBRID RT 500 weighs 25.3 kg (55.78 lbs) and is slightly heavier than the average. In conclusion, the average Comfort e-bike weighs 3.77% less than TRAVEL HYBRID RT 500.
TRAVEL HYBRID RT 500 components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, CUBE TRAVEL HYBRID RT 500 2017, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Coaster brakes. These brakes are pretty efficient, and they’re not so pricey. However, they have flaws, especially if the chain falls off.
