Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Alfine -
Suspension Rigid -
Drivetrain Belt Drive, IGH -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite Urban Double Butted
Suspension Fork
Aluminium Rigid Fork
Drivetrain
Shift Levers
Shimano Alfine SL-S7000
Cassette
Gates CDN, 22T
Crank
Gates S150 CDN, 46T, 170mm, BB Thun Zumba
Chain
Gates CDN, 111T
Pedals
VP 615M
Wheels
Front Hub
Shimano DH-3D37, Hub Dynamo, QR
Rear Hub
Shimano Alfine SG-S700, 8-Speed, Nut
Rims
CUBE EX21, 32H, Disc, Tubeless Ready
Tires
Schwalbe Marathon Supreme, Kevlar, 42x622
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Natural Fit Comfort
Headset
FSA Orbit Z semi-integrated 1 1/8"
Seat
Saddle
Selle Royal Ariel
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.37 mm | 1.39 mm | 1.42 mm | 1.45 mm |
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 286 mm | 286 mm |
| Front Center | 631 mm | 632 mm | 639 mm | 649 mm | 660 mm |
| Rake | 52 mm | 53 mm | 54 mm | 53 mm | 53 mm |
| Trail | 67 mm | 60 mm | 52 mm | 53 mm | 53 mm |
| Stack | 540 mm | 557 mm | 580 mm | 599 mm | 618 mm |
| Reach | 403 mm | 407 mm | 416 mm | 421 mm | 426 mm |
| Top Tube Length | 566 mm | 576 mm | 592 mm | 602 mm | 613 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 115 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1057 mm | 1058 mm | 1065 mm | 1075 mm | 1086 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

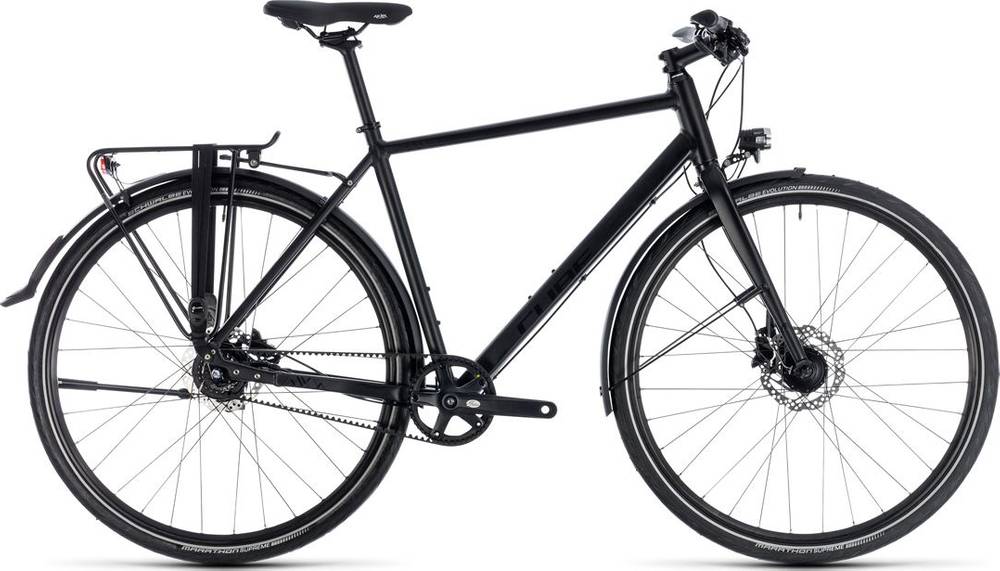

TRAVEL SL is a Cube Travel model. 56 bikes variations carry this model name so far. Take a sneak peek at all Cube Travel bikes models from 2018, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Touring bikes
According to our math, the average price for a trustworthy Touring bike is 1007$. However, even if your budget is less than the average, you might still be able to get a top-quality Touring bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Touring bikes average weight
Touring bikes have an average weight of 13.35 kg (29.43 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 13.7 kg (30.2 lbs), the TRAVEL SL model is slightly heavier than average. To sum up, it’s 2.62% heavier than the average weight of Touring bikes.
Overview of components
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
The wheels on TRAVEL SL are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
