Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Alfine -
Suspension Rigid -
Drivetrain Belt Drive, IGH -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite Urban Double Butted
Suspension Fork
Aluminium Rigid Fork
Drivetrain
Shift Levers
Shimano Alfine SL-S7000
Cassette
Gates CDN, 22T
Crank
Gates S150 CDN, 46T, 170mm, BB Thun Zumba
Chain
Gates CDN, 111T
Pedals
VP 615M
Wheels
Front Hub
Shimano DH-3D37, Hub Dynamo, QR
Rear Hub
Shimano Alfine SG-S700, 8-Speed, Nut
Rims
CUBE EX21, 32H, Disc, Tubeless Ready
Tires
Schwalbe Marathon Supreme, Kevlar, 42x622
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Natural Fit Comfort
Headset
FSA Orbit Z semi-integrated 1 1/8"
Seat
Saddle
Selle Royal Ariel
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.42 mm | 1.44 mm |
| Front Center | 632 mm | 633 mm | 639 mm |
| Rake | 53 mm | 54 mm | 54 mm |
| Trail | 71 mm | 63 mm | 57 mm |
| Stack | 553 mm | 571 mm | 593 mm |
| Reach | 399 mm | 403 mm | 412 mm |
| Top Tube Length | 566 mm | 576 mm | 592 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 71 ° | 72 ° |
| Head Tube Length | 125 mm | 140 mm | 160 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1058 mm | 1059 mm | 1065 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm |
| Wheels | 700 | 700 | 700 |
About this model

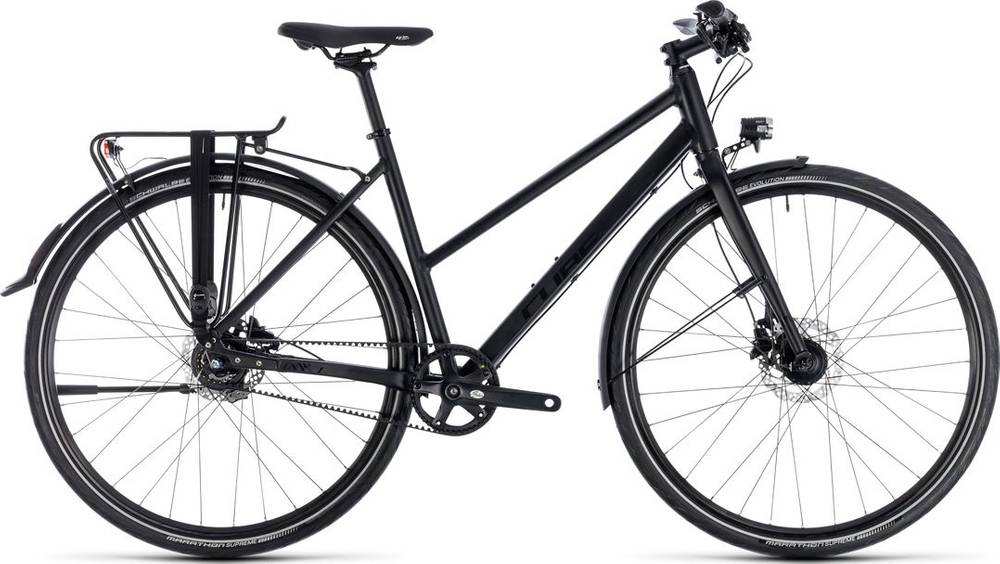

TRAVEL SL Trapeze belongs to the Cube Travel model. CUBE launched 56 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid bikes
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Hybrid bikes average weight
Hybrid bikes weigh an average of 13.85 kg (30.53 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 13.7 kg (30.2 lbs), the TRAVEL SL Trapeze model is slightly lighter than average. In other words, this model is 1.09% lighter than the average Hybrid bike.
Overview of components
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
As for the wheels, CUBE TRAVEL SL Trapeze 2018, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE TRAVEL SL Trapeze has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
