Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox Yari RC
-
Groupset NX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Yari RC, Boost
Rear Shock
RockShox Monarch Plus R DebonAir, 216mm x 63mm
Drivetrain
Rear Derailleur
SRAM NX
Front Derailleur
N/A
Shift Levers
SRAM NX, 11-speed
Cassette
SRAM PG-1130, 11-42 tooth, 11-speed
Crank
Dartmoor Tribe, 175mm length
Bottom Bracket
Dartmoor threaded
Chain
SRAM PC-1110
Chain Guide
N/A
Pedals
Dartmoor Stream OEM
Wheels
Front Hub
Front: Dartmoor Reel Pro, Boost 15mm x 110, Rear: Dartmoor Reel Pro, 12mm x 142mm
Rear Hub
Front: Dartmoor Reel Pro, Boost 15mm x 110, Rear: Dartmoor Reel Pro, 12mm x 142mm
Rims
Dartmoor Raider, 32 hole, F/V
Spokes
Sandvik T302 stainless steel
Tires
Maxxis Minion DHF, 2.5” EXO TR
Brakes
Brakes
SRAM Level with 180mm rotors
Brake Levers
SRAM Level
Cockpit
Stem
Dartmoor Trail, 50mm length, 31.8mm clamp
Handlebar
Dartmoor Tornado, 780mm width, 31.8mm diameter
Grips
Dartmoor Maze
Headset
Dartmoor Blink
Seat
Saddle
Dartmoor Trail Racing
Seatpost
Kind Shock E20 Integrated, 125mm or 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.39 mm | 1.31 mm | 1.25 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 722 mm | 757 mm | 782 mm | 807 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 119 mm | 119 mm | 119 mm | 119 mm |
| Stack | 611 mm | 611 mm | 611 mm | 611 mm |
| Reach | 405 mm | 440 mm | 465 mm | 490 mm |
| Top Tube Length | 557 mm | 592 mm | 617 mm | 642 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 405 mm | 430 mm | 455 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1152 mm | 1187 mm | 1212 mm | 1237 mm |
| Bottom Bracket Drop | 14 mm | 14 mm | 14 mm | 14 mm |
| Standover Height | 795 mm | 795 mm | 795 mm | 795 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

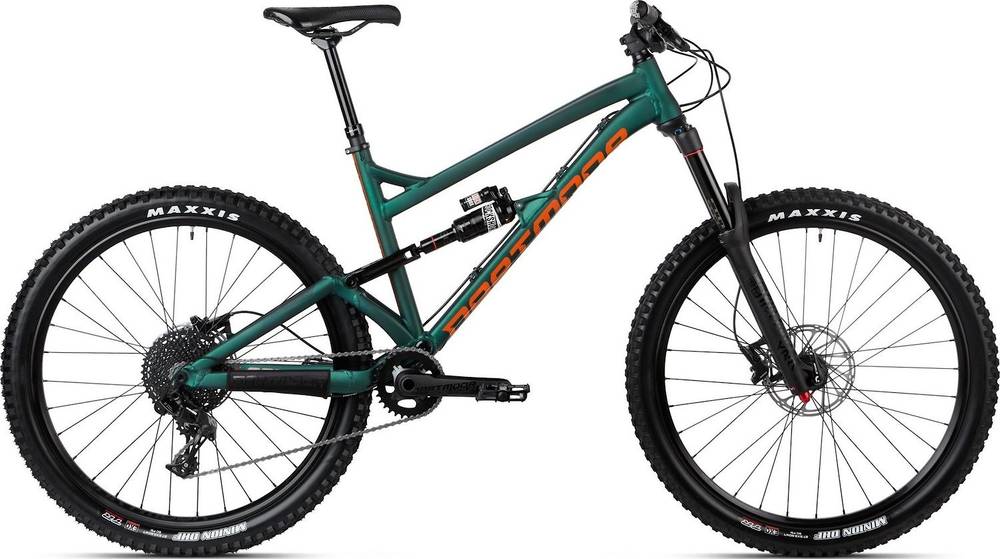

Model Overview
Blackbird Evo is a Dartmoor Blackbird model. Dartmoor released 16 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Enduro bikes average weight
The average weight for Enduro bikes is 14.27 kg (31.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 15.5 kg (34.17 lbs), Dartmoor bike is a bit heavier than average. In other words, this model is 8.62% heavier than the average Enduro bike.
Overview of components
Fork
The RockShox Yari RC is included from the factory. It has a travel distance of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Blackbird Evo has a rear shock with a travel of 160mm. The model RockShox Monarch Plus R DebonAir is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Dartmoor Blackbird Evo 2018, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Blackbird Evo has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Dartmoor Blackbird Evo bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
