Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork X Fusion
-
Groupset microSHIFT Advent, Deore -
Suspension Full -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
X-Fusion Sweep RC
Rear Shock
X-Fusion O2 Pro R, 230mm x 65mm
Drivetrain
Rear Derailleur
Microshift Advent M6195M, with clutch, 9–speed
Front Derailleur
None
Shift Levers
Microshift Advent Trail Pro M9295-R, 9–speed
Cassette
Microshift Advent H093, 9-speed, 11-46 tooth
Crank
Shimano Deore M5100, forged aluminum, Length: 170mm (SM/MD), 175mm (LG/XL)
Chain
SunRace CNM94, 9-speed
Chain Guide
None
Pedals
Dartmoor Stream
Wheels
Front Hub
Dartmoor Reel, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rear Hub
Dartmoor Reel, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rims
Dartmoor Tomcat, 32 hole, tubeless ready
Spokes
Dartmoor wheelset
Tires
WTB Vigilante, Comp, 27.5" x 2.3"
Brakes
Brakes
Front: Shimano MT420, 4-piston, 180mm rotor, Front: Shimano MT410, 2-piston, 180mm rotor
Brake Levers
Shimano MT401
Cockpit
Stem
Dartmoor Beetle, 33mm length, 31.8mm bar clamp
Handlebar
Dartmoor Tornado Hi, 780mm width, 31.8mm clamp diameter
Grips
Dartmoor Maze Lite, slip-on
Headset
Dartmoor Blink
Seat
Saddle
WTB Volt Medium, CrMo rails
Seatpost
6061 aluminum, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.39 mm | 1.31 mm | 1.25 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 722 mm | 757 mm | 782 mm | 807 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 119 mm | 119 mm | 119 mm | 119 mm |
| Stack | 611 mm | 611 mm | 611 mm | 611 mm |
| Reach | 405 mm | 440 mm | 465 mm | 490 mm |
| Top Tube Length | 557 mm | 592 mm | 617 mm | 642 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 405 mm | 430 mm | 455 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1156 mm | 1191 mm | 1216 mm | 1241 mm |
| Bottom Bracket Drop | 14 mm | 14 mm | 14 mm | 14 mm |
| Standover Height | 795 mm | 795 mm | 795 mm | 795 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

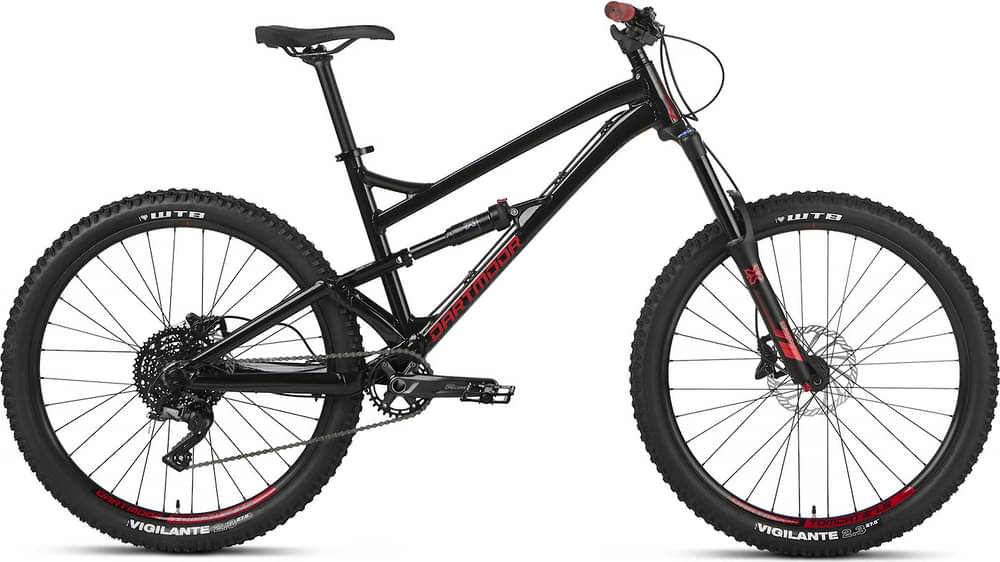

About this model
Blackbird Intro 27.5 is a Dartmoor Blackbird model. There are 16 bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Blackbird Intro 27.5 components
Fork
The X Fusion is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the X-Fusion O2 Pro R rear shock model, which has a travel of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on Blackbird Intro 27.5 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Blackbird Intro 27.5 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
