Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Sektor
-
Groupset NX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Sektor Silver RL, Boost 15mm x 110mm
Rear Shock
RockShox Monarch RL Solo Air, lock out, 190/51mm, 22.2x8mm shock hardware
Drivetrain
Rear Derailleur
SRAM NX, 11-speed
Front Derailleur
N/A
Shift Levers
SRAM NX, 11-speed
Cassette
SRAM PG-1130, 11-42 tooth, 11-speed
Crank
SRAM NX Power Spline, 175mm length
Bottom Bracket
Euro73
Chain
SRAM PC-1110
Chain Guide
N/A
Pedals
Dartmoor Stream OEM
Wheels
Front Hub
Front: Dartmoor Reel, Boost 15mm x 110mm, 32 hole, Rear: Dartmoor Reel, Boost 12mm x 148mm, 32 hole
Rear Hub
Front: Dartmoor Reel, Boost 15mm x 110mm, 32 hole, Rear: Dartmoor Reel, Boost 12mm x 148mm, 32 hole
Rims
Dartmoor Raider 29”, 32 hole, F/V
Spokes
Dartmoor Raider 29”, 32 hole, F/V
Tires
Maxxis Ardent, 29" x 2.25”
Brakes
Brakes
SRAM Level with 180mm rotors
Brake Levers
SRAM Level
Cockpit
Stem
Dartmoor Trail, 50mm length, Ø31.8mm
Handlebar
Dartmoor Tornado, 750mm width, Ø31.8mm
Grips
Dartmoor Maze
Headset
Integrated IS42/IS52
Seat
Saddle
Dartmoor Trail Racing
Seatpost
KS E-TEN Integrated, 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.515 mm | 1.393 mm | 1.317 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Front Center | 700 | 735 mm | 760 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 114 mm | 114 mm | 114 mm |
| Stack | 606 mm | 606 mm | 606 mm |
| Reach | 400 mm | 435 mm | 460 mm |
| Top Tube Length | 525 mm | 557 mm | 582 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 400 mm | 450 mm | 475 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1128 mm | 1163 mm | 1188 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 805 mm | 805 mm | 805 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

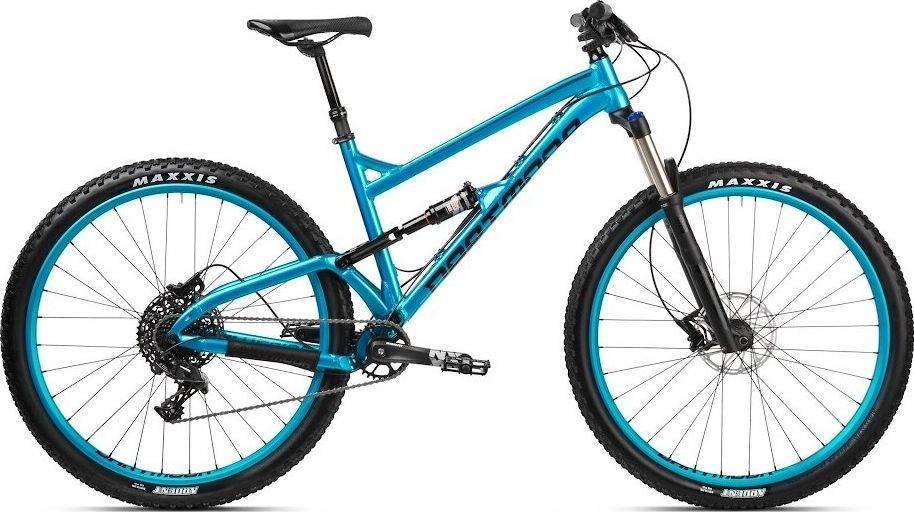

Bluebird 29 completes the Dartmoor Bluebird model. Dartmoor released 11 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 7.17 kg (15.81 lbs), Dartmoor bike is much lighter than average. To sum up, it’s 81.03% lighter than the average weight of Trail bikes.
Overview of components
Fork
The RockShox Sektor is included from the factory. It has a travel distance of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Dartmoor Bluebird 29 bike has the RockShox Monarch RL Solo Air model installed, and has a travel of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The Bluebird 29 2018 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Bluebird 29 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Bluebird 29. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
