Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork X Fusion
-
Groupset SX Eagle, Suntour SR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
X-Fusion Slide Boost RC 29", 15mm axle, tapered
Rear Shock
X-Fusion O2 Pro R, 210mm x 50mm
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM PG-1210 SX Eagle, 11-50 tooth, 12-speed
Crank
SR Suntour Zeron 1x, 175mm on L/XL, 170mm on M
Bottom Bracket
BSA, 73mm
Chain
SRAM SX Eagle, 12-speed
Chain Guide
None
Pedals
Dartmoor Stream OEM
Wheels
Front Hub
Front: Dartmoor Reel, Boost 110mm x 15mm, Rear: Dartmoor Reel, Boost 148mm x 12mm
Rear Hub
Front: Dartmoor Reel, Boost 110mm x 15mm, Rear: Dartmoor Reel, Boost 148mm x 12mm
Rims
Dartmoor Tomcat 29", 32 hole, F/V
Tires
WTB Trail Boss G2 29" x 2.4", Comp
Brakes
Brakes
Tektro HD-M275, 180mm rotors
Brake Levers
Tektro HD-M275
Cockpit
Stem
Dartmoor Beetle, 33mm
Handlebar
Dartmoor Tornado Low 780mm, 31.8mm diameter
Grips
Dartmoor Maze Lite, without lock ring
Headset
Dartmoor Blink
Seat
Saddle
Dartmoor Arrow
Seatpost
X-Fusion Manic, Travel: 150mm on M, 170mm on L/XL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.34 mm | 1.27 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm |
| Front Center | 741 mm | 766 mm | 791 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 121 mm | 121 mm | 121 mm |
| Stack | 617 mm | 617 mm | 617 mm |
| Reach | 434 mm | 459 mm | 484 mm |
| Top Tube Length | 586 mm | 611 mm | 636 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 450 mm | 460 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1177 mm | 1202 mm | 1227 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm |
| Standover Height | 819 mm | 819 mm | 819 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

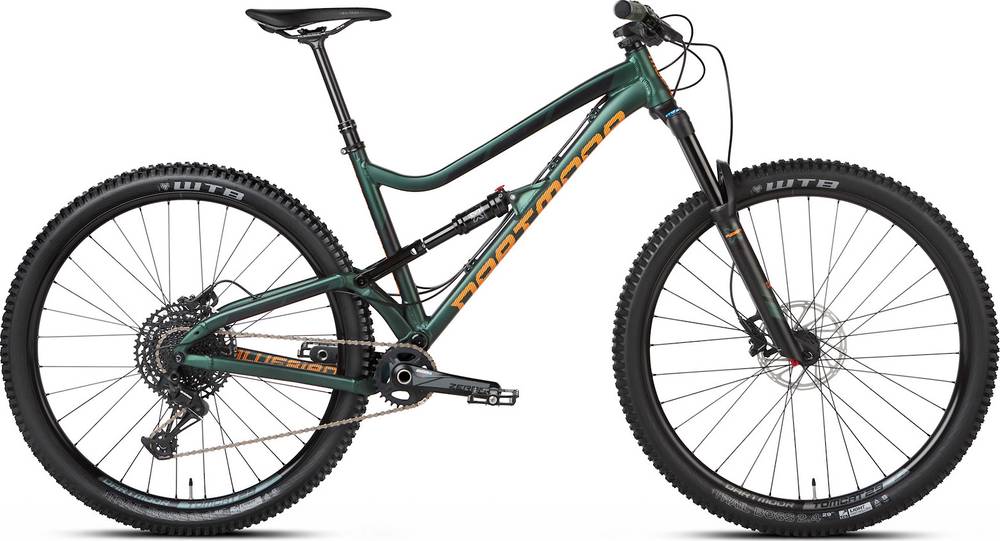

Bluebird EVO 29 completes the Dartmoor Bluebird model. There are 11 bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 16.25 kg (35.83 lbs), Dartmoor bike is much heavier than average. In conclusion, the average Trail bike weighs 25.19% less than Bluebird EVO 29.
Overview of components
Fork
The X Fusion is included from the factory. It has a travel distance of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Bluebird EVO 29 has a rear shock with a travel of 130mm. The model X-Fusion O2 Pro R is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Dartmoor Bluebird EVO 29 2020, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Dartmoor Bluebird EVO 29 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Dartmoor Bluebird EVO 29 bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Dartmoor Bluebird EVO 29 includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
