Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork X Fusion
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
X-Fusion Slide RC
Rear Shock
X-Fusion O2 Pro R, 210mm x 50mm
Drivetrain
Rear Derailleur
Shimano Deore M5100, 11–speed
Front Derailleur
None
Shift Levers
Shimano Deore M5100, 11–speed
Cassette
Shimano Deore M5100, 11–speed, 11-51 tooth
Crank
Shimano Deore M5100, forged aluminum, Length: 170mm (MD), 175mm (LG/XL)
Chain
SunRace CN11A, 11-speed
Chain Guide
None
Pedals
Dartmoor Stream
Wheels
Front Hub
Dartmoor Reel, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rear Hub
Dartmoor Reel, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rims
Dartmoor Tomcat, 32 hole, tubeless ready
Spokes
Dartmoor wheelset
Tires
WTB Trail Boss, G2, Comp, 29" x 2.4"
Brakes
Brakes
Shimano MT410, 2-piston, 180mm rotors
Brake Levers
Shimano MT410
Cockpit
Stem
Dartmoor Trail v.2, 50mm length, 31.8mm bar clamp
Handlebar
Dartmoor Tornado Low, 780mm width, 31.8mm clamp diameter
Grips
Dartmoor Maze Lite, slip-on
Headset
Dartmoor Blink
Seat
Saddle
WTB Volt Medium, CrMo rails
Seatpost
X-Fusion Manic dropper, Drop: 150mm (MD), 170mm (LG/XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.34 mm | 1.27 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm |
| Front Center | 741 mm | 766 mm | 791 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 121 mm | 121 mm | 121 mm |
| Stack | 617 mm | 617 mm | 617 mm |
| Reach | 434 mm | 459 mm | 484 mm |
| Top Tube Length | 586 mm | 611 mm | 636 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 450 mm | 460 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1177 mm | 1202 mm | 1227 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm |
| Standover Height | 819 mm | 819 mm | 819 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

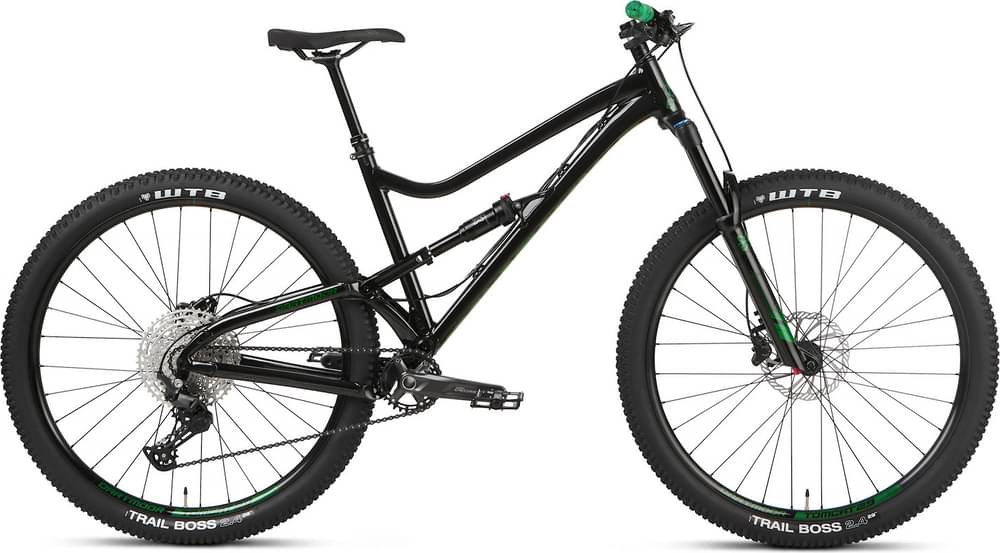

Bluebird EVO 29 is a Dartmoor Bluebird model. 11 bikes variations carry this model name so far. Take a sneak peek at all Dartmoor Bluebird bikes models from 2021, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 15.95 kg (35.16 lbs), the Bluebird EVO 29 model is much heavier than average. In other words, this model is 22.88% heavier than the average Trail bike.
Bluebird EVO 29 components
Fork
The fork installed on this bike is the X Fusion model. The travel on this model is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Dartmoor Bluebird EVO 29 bike has the X-Fusion O2 Pro R model installed, and has a travel of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on Bluebird EVO 29 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Bluebird EVO 29 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Bluebird EVO 29 comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
Dartmoor Bluebird EVO 29 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
