Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork X Fusion
-
Groupset SX Eagle, Suntour SR -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
X-Fusion Slide Boost RC 27.5", 15mm axle, tapered
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM PG-1210 SX Eagle, 11-50 tooth, 12-speed
Crank
SR Suntour Zeron 1x, 175mm on L/XL, 170mm on S/M
Bottom Bracket
BSA, 73mm
Chain
SRAM SX Eagle, 12-speed
Chain Guide
None
Pedals
Dartmoor Stream OEM
Wheels
Front Hub
Front: Dartmoor Reel, Boost 110mm x 15mm, Rear: Dartmoor Reel, Boost 148mm x 12mm
Rear Hub
Front: Dartmoor Reel, Boost 110mm x 15mm, Rear: Dartmoor Reel, Boost 148mm x 12mm
Rims
Dartmoor Cruiser 27.5"+, 32 hole, F/V
Tires
WTB Trail Boss G2 27.5" x 2.6", Comp
Brakes
Brakes
Tektro HD-M275, 180mm rotors
Brake Levers
Tektro HD-M275
Cockpit
Stem
Dartmoor Beetle, 33mm
Handlebar
Dartmoor Tornado Low 780mm, 31.8mm diameter
Grips
Dartmoor Maze Lite, without lock ring
Headset
Dartmoor Blink
Seat
Saddle
Dartmoor Arrow
Seatpost
6061 alloy, 350mm on S/M, 400mm on L/XL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.43 mm | 1.37 mm | 1.31 mm |
| Bottom Bracket Height | 293 mm | 293 mm | 293 mm | 293 mm |
| Front Center | 732 mm | 752 mm | 772 mm | 792 mm |
| Rake | 72 mm | 72 mm | 72 mm | 72 mm |
| Trail | 76 mm | 76 mm | 76 mm | 76 mm |
| Stack | 618 mm | 618 mm | 618 mm | 618 mm |
| Reach | 411 mm | 431 mm | 451 mm | 471 mm |
| Top Tube Length | 594 mm | 614 mm | 634 mm | 654 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 435 mm | 455 mm | 475 mm | 495 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 115 mm | 115 mm | 115 mm | 115 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1146 mm | 1166 mm | 1186 mm | 1206 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 791 mm | 791 mm | 791 mm | 791 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

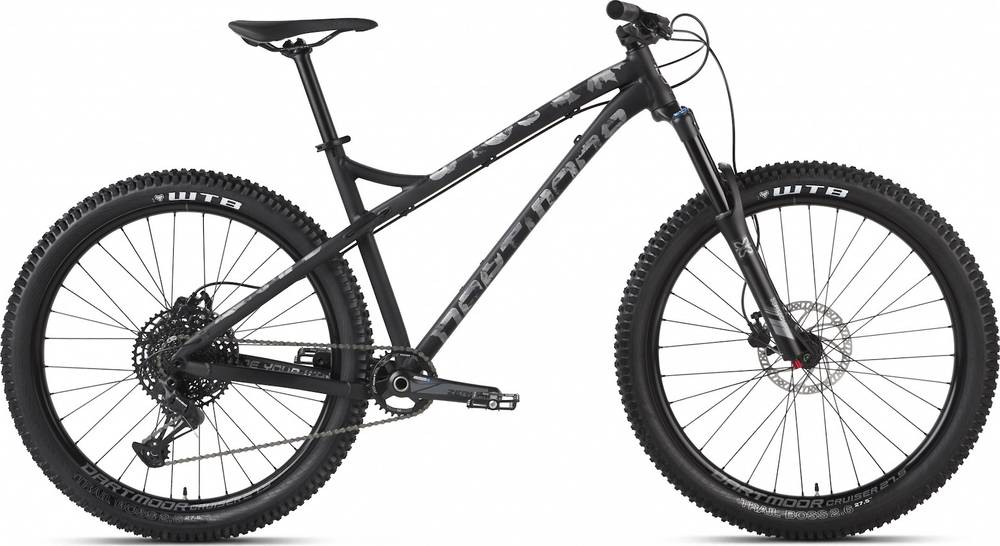

Primal EVO 27.5 belongs to the Dartmoor Primal model. Dartmoor released 16 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Trail bikes
Trail bikes have an average weight of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 14.5 kg (31.97 lbs), Dartmoor bike is considerably heavier than average. In short, the average Trail bike weight is 11.71% lower than this one.
Primal EVO 27.5 components
Fork
This bike has the X Fusion fork installed. The fork’s travel is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on Primal EVO 27.5 are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
