Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Fork SunTour AION
-
Groupset NX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Suntour Aion35-Boost LOR
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM NX
Front Derailleur
N/A
Shift Levers
SRAM NX, 11-speed
Cassette
Sunrace CSMS8, 11-46 tooth, 11-speed
Crank
Dartmoor Tribe, 175mm length, Boost
Bottom Bracket
Dartmoor threaded, 73mm
Chain
SRAM PC-1110
Chain Guide
N/A
Pedals
Dartmoor Stream OEM
Wheels
Front Hub
Front: Dartmoor Reel, Boost 15mm x 110mm, Rear: Dartmoor Reel, Boost 12mm x 148mm
Rear Hub
Front: Dartmoor Reel, Boost 15mm x 110mm, Rear: Dartmoor Reel, Boost 12mm x 148mm
Rims
Dartmoor Sniper, 32 hole, F/V
Spokes
Sandvik T302 stainless steel
Tires
Schwalbe Hans Dampf, 2.35”, Snake Skin, TL-Easy, Addix Speedgrip
Brakes
Brakes
SRAM Level with 180mm rotors
Brake Levers
SRAM Level
Cockpit
Stem
Dartmoor Trail, 50mm length, 31.8mm clamp
Handlebar
Dartmoor Tornado Low, 780mm width, 31.8mm diameter
Grips
Dartmoor Maze
Headset
Dartmoor Blink
Seat
Saddle
Dartmoor Trail Racing
Seatpost
Kind Shock E20 Integrated, 125mm or 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.48 mm | 1.41 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm |
| Front Center | 727 mm | 747 mm | 767 mm |
| Rake | 54 mm | 54 mm | 54 mm |
| Trail | 108 mm | 108 mm | 108 mm |
| Stack | 637 mm | 637 mm | 637 mm |
| Reach | 411 mm | 431 mm | 451 mm |
| Top Tube Length | 601 mm | 621 mm | 641 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 435 mm | 455 mm | 475 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1151 mm | 1171 mm | 1191 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Standover Height | 791 mm | 791 mm | 791 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

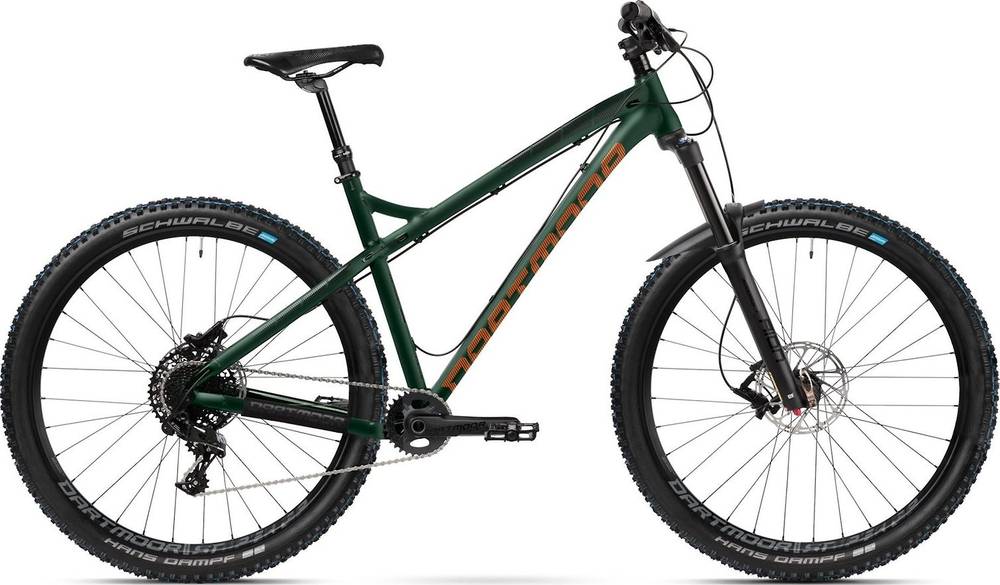

Model Overview
Primal Pro 29 is part of the Dartmoor Primal model. There are 16 bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
a bit heavier than average, Primal Pro 29 has a weight of 13.7 kg (30.2 lbs). In other words, this model is 5.55% heavier than the average Trail bike.
Overview of components
Fork
The SunTour AION is included from the factory. It has a travel distance of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Dartmoor Primal Pro 29 2018, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Primal Pro 29 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Primal Pro 29 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Dartmoor Primal Pro 29 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
