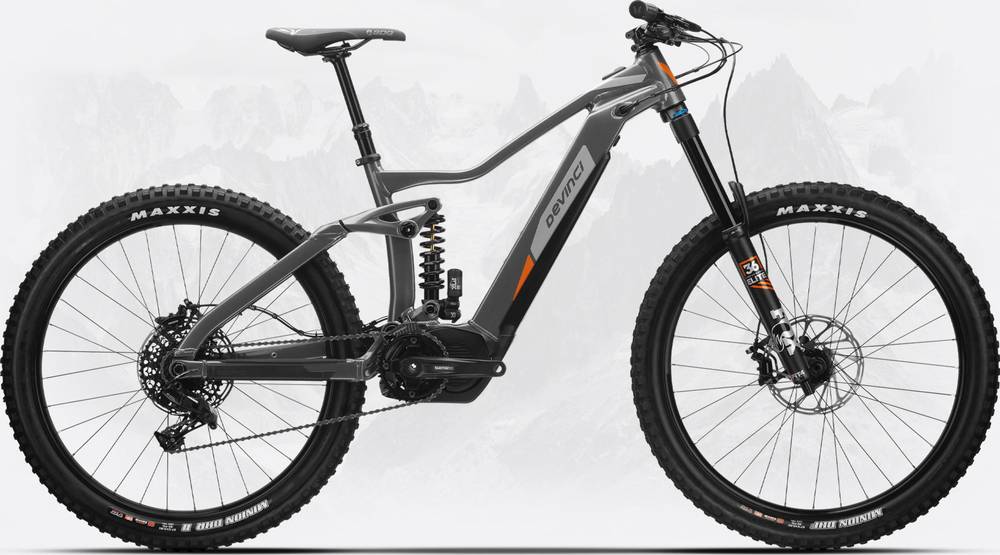

Devinci AC NX 11S 2020
2020 E-bike
Estimate price |
6,099$
Weight | 24.68 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 170mm -
Fork Fox Performance Elite Float 36
-
Groupset NX, GX -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano STEPS E8035 504Wh Lithium-ion -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G04 170mm, Handcrafted in Canada / Fabriqué à la main au Canada
Suspension Fork
Fox Float 36 Performance Elite Evol 27.5+ B110 180mm 44OS
Rear Shock
Float DHX2 Performance Series 205x65 400 Std Coil
Drivetrain
Rear Derailleur
SRAM NX 11s
Shift Levers
SRAM GX 11s Single Click
Cassette
SRAM PG1130-11s 11-42T
Crank
Shimano E8000
Chain
Shimano HG601 11s
Chain Guide
E13 Chain Guide for Steps
Wheels
Front Hub
SRAM MTH716 TA 15x110
Rear Hub
SRAM MTH746 TA 12x148 BOOST
Rims
V2 Comp Wide db Tubeless ready | 36mm inner
Spokes
Stainless 14G w/Nylok
Tires
Maxxis Minion DHF 27.5x2.8" 3C MaxxTerra EXO+ TR
Brakes
Brakes
SRAM Guide RE
Disk Rotors
SRAM Centerline 200mm
Cockpit
Stem
V2 Pro 35 | 50mm
Handlebar
V2 Pro 35 Riserbar15mm | 780mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack
Seat
Saddle
SDG Radar
Seatpost
TranzX Dropper 31.6mm 1xLever
Motor & Battery
Motor
Shimano STEPS E8000 250W
Battery
Shimano STEPS E8035 504Wh Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.39 mm | 1.32 mm | 1.35 mm | 1.29 mm | 1.31 mm | 1.26 mm | 1.28 mm |
| Bottom Bracket Height | 364 mm | 357.5 mm | 364 mm | 357.5 mm | 364 mm | 357.5 mm | 364 mm | 357.5 mm |
| Stack | 591 mm | 595 mm | 600 mm | 604 mm | 609 mm | 613 mm | 622 mm | 626 mm |
| Reach | 433 mm | 428 mm | 453 mm | 448 mm | 473 mm | 468 mm | 493 mm | 488 mm |
| Top Tube Length | 575 mm | 577 mm | 598 mm | 600 mm | 621 mm | 623 mm | 645 mm | 647 mm |
| Seat Tube Angle | 76.6 ° | 76.1 ° | 76.5 ° | 76 ° | 76.4 ° | 75.9 ° | 76.3 ° | 75.8 ° |
| Seat Tube Length | 410 mm | 410 mm | 420 mm | 420 mm | 455 mm | 455 mm | 495 mm | 495 mm |
| Head Tube Angle | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm | 140 mm | 140 mm |
| Chainstay Length | 441 mm | 443 mm | 441 mm | 443 mm | 441 mm | 443 mm | 441 mm | 443 mm |
| Wheelbase | 1202 mm | 1204 mm | 1226 mm | 1228 mm | 1250 mm | 1252 mm | 1277 mm | 1279 mm |
| Bottom Bracket Drop | -9 mm | -2 mm | -9 mm | -2 mm | -9 mm | -2 mm | -9 mm | -2 mm |
| Standover Height | 734 mm | 728 mm | 743 mm | 737 mm | 771 mm | 765 mm | 800 mm | 794 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview
AC NX 11S completes the Devinci E Ac model. There are 8 e-bikes that carry this model name. You can easily view all of the Devinci E Ac e-bikes models from 2020, here.
Model range prices
The most economical model, the Devinci AC NX 11S 2020 has a starting price of 6099$. Devinci AC GX 11S 2020 on the other hand is the most expensive at 7099$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Devinci AC NX 11S price was 6099$. Comparing the average cost of an Enduro e-bike to this one, you will see that AC NX 11S price is 27.46% higher.
Average weight for Enduro e-bikes
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 24.68 kg (54.41 lbs), Devinci e-bike is a bit heavier than average. In other words, this model is 5.38% heavier than the average Enduro e-bike.
AC NX 11S components
Fork
This e-bike has the Fox Performance Elite Float 36 fork installed. The fork’s travel is 180mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this e-bike has the Float DHX2 Performance Series 205×65 400 Std Coil model, with a travel of 170mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The AC NX 11S 2020 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Devinci AC NX 11S has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the AC NX 11S. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
