Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 170mm -
Fork Fox Factory Float 36
-
Groupset XT, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano STEPS E8020 504Wh Lithium-ion -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G04 170mm, Handcrafted in Canada / Fabriqué à la main au Canada
Suspension Fork
Fox Float 36 Factory Fit4 27.5 Boost 110 180mm 44OS
Rear Shock
Float DHX2 Performance Series 205x65 400 Std Coil
Drivetrain
Rear Derailleur
Shimano XT M8000 11s
Shift Levers
Shimano XT M8000
Cassette
Shimano M8000-11s 11-46T
Crank
Shimano E8050 HollowTech
Chain
Shimano HG701-11s
Chain Guide
E13 Chain Guide for Steps
Wheels
Rims
DT Swiss H1700 27.5 15x110mm TL Ready | 35mm inner
Tires
Maxxis Minion DHF 27.5x2.8" 3C, EXO, TR
Brakes
Brakes
Shimano M8020 XT 4 piston
Cockpit
Stem
Race Face Turbine R 35 | 50mm
Handlebar
Race Face Turbine R35 20mm Riserbar | 800mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack
Seat
Saddle
SDG Fly Mtn
Seatpost
Fox Transfer Perfomance 31.6 1xLever SM:100 MD:125 LG-XL:150
Motor & Battery
Motor
Shimano STEPS E8000 250W
Battery
Shimano STEPS E8020 504Wh Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.42 mm | 1.35 mm | 1.38 mm | 1.32 mm | 1.34 mm | 1.29 mm | 1.31 mm |
| Bottom Bracket Height | 364 mm | 357.5 mm | 364 mm | 357.5 mm | 364 mm | 357.5 mm | 364 mm | 357.5 mm |
| Stack | 591 mm | 595 mm | 600 mm | 604 mm | 609 mm | 613 mm | 622 mm | 626 mm |
| Reach | 423 mm | 418 mm | 443 mm | 438 mm | 463 mm | 458 mm | 483 mm | 478 mm |
| Top Tube Length | 575 mm | 577 mm | 598 mm | 600 mm | 621 mm | 623 mm | 646 mm | 648 mm |
| Seat Tube Angle | 75.7 ° | 75.2 ° | 75.6 ° | 75.1 ° | 75.6 ° | 75.1 ° | 75.5 ° | 75 ° |
| Seat Tube Length | 410 mm | 410 mm | 420 mm | 420 mm | 455 mm | 455 mm | 495 mm | 495 mm |
| Head Tube Angle | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm | 140 mm | 140 mm |
| Chainstay Length | 441 mm | 443 mm | 441 mm | 443 mm | 441 mm | 443 mm | 441 mm | 443 mm |
| Wheelbase | 1195 mm | 1197 mm | 1219 mm | 1221 mm | 1243 mm | 1245 mm | 1270 mm | 1272 mm |
| Bottom Bracket Drop | -9 mm | -2 mm | -9 mm | -2 mm | -9 mm | -2 mm | -9 mm | -2 mm |
| Standover Height | 726 mm | 720 mm | 743 mm | 737 mm | 771 mm | 765 mm | 800 mm | 794 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |

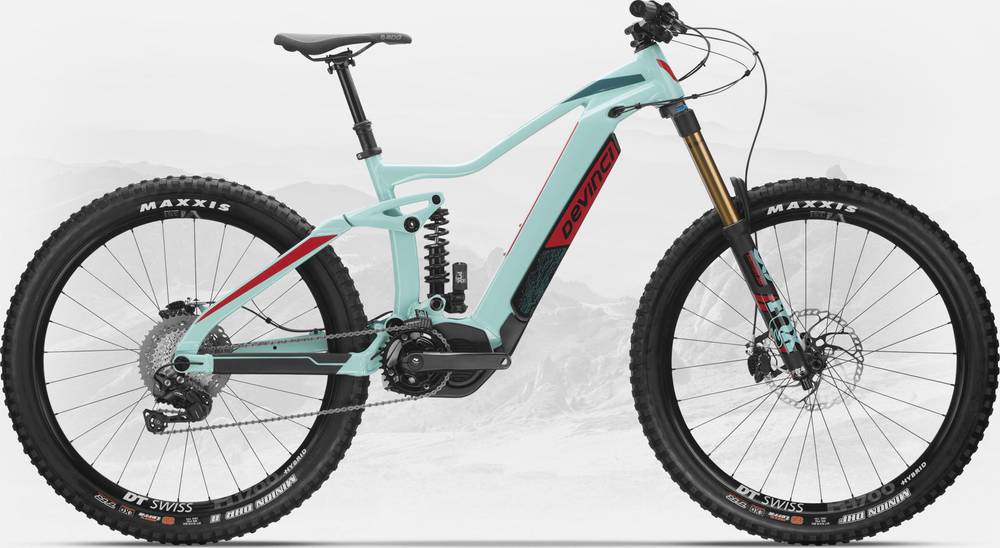

Model Overview
AC XT is a Devinci E Ac model. Devinci launched 8 e-bikes of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Devinci AC NX/GX 2019 is the most economical model, with a starting price of 5899$. Devinci AC XT 2019 on the other hand costs 6669$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Devinci released this model in 2019, its price was 6669$. Comparing the average cost of an Enduro e-bike to this one, you will see that AC XT price is 39.37% more expensive.
AC XT components
Fork
This e-bike has the Fox Factory Float 36 fork installed. The fork’s travel is 180mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Float DHX2 Performance Series 205×65 400 Std Coil rear shock model, which has a travel of 170mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on AC XT are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The AC XT comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
Devinci AC XT includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
