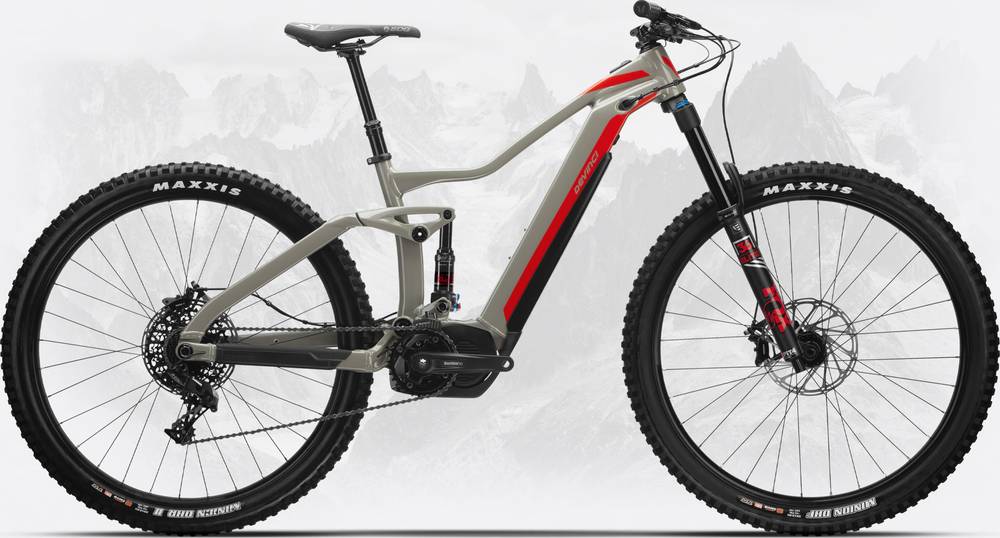

Devinci DC NX 11s 2020
2020 E-bike
Estimate price |
5,799$
Weight | 24.48 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Elite Float 36
-
Groupset NX, GX -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano STEPS E8035 504Wh Lithium-ion -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G04 150mm, Handcrafted in Canada / Fabriqué à la main au Canada
Suspension Fork
Fox Float 36 Performance Elite Evol 29 Boost 110 160mm
Rear Shock
Fox Float DPS Evol LV Factory 185x55
Drivetrain
Rear Derailleur
SRAM NX 11s
Shift Levers
SRAM GX 11s Single Click
Cassette
SRAM PG1130-11s 11-42T
Crank
Shimano E8000
Chain
Shimano HG601 11s
Chain Guide
E13 Chain Guide for Steps
Wheels
Front Hub
SRAM MTH716 TA 15x110
Rear Hub
SRAM MTH746 TA 12x148 BOOST
Rims
V2 Comp Wide db Tubeless ready | 36mm inner
Spokes
Stainless 14G w/Nylok
Tires
Maxxis Minion DHF 29x2.6" 3C MaxxTerra Exo+ TR
Brakes
Brakes
SRAM Guide RE
Disk Rotors
SRAM Centerline 200mm
Cockpit
Stem
V2 Pro 35 | 50mm
Handlebar
V2 Pro 35 Riserbar15mm | 780mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack
Seat
Saddle
SDG Radar
Seatpost
TranzX Dropper 31.6mm 1xLever
Motor & Battery
Motor
Shimano STEPS E8000 250W
Battery
Shimano STEPS E8035 504Wh Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.36 mm | 1.38 mm | 1.31 mm | 1.34 mm | 1.28 mm | 1.3 mm |
| Bottom Bracket Height | 357 mm | 350 mm | 357 mm | 350 mm | 357 mm | 350 mm | 357 mm | 350 mm |
| Stack | 614 mm | 618 mm | 614 mm | 618 mm | 623 mm | 627 mm | 632 mm | 636 mm |
| Reach | 433 mm | 428 mm | 453 mm | 448 mm | 474 mm | 468 mm | 494 mm | 488 mm |
| Top Tube Length | 576 mm | 578 mm | 597 mm | 598 mm | 619 mm | 621 mm | 642 mm | 644 mm |
| Seat Tube Angle | 77 ° | 76.5 ° | 77 ° | 76.5 ° | 77 ° | 76.5 ° | 76.9 ° | 76.4 ° |
| Seat Tube Length | 410 mm | 410 mm | 420 mm | 420 mm | 455 mm | 455 mm | 495 mm | 495 mm |
| Head Tube Angle | 66 ° | 65.5 ° | 66 ° | 65.5 ° | 66 ° | 65.5 ° | 66 ° | 65.5 ° |
| Head Tube Length | 105 mm | 105 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 461 mm | 463 mm | 461 mm | 463 mm | 461 mm | 463 mm | 461 mm | 463 mm |
| Wheelbase | 1216 mm | 1217 mm | 1236 mm | 1237 mm | 1260 mm | 1261 mm | 1284 mm | 1285 mm |
| Bottom Bracket Drop | 17 mm | 24 mm | 17 mm | 24 mm | 17 mm | 24 mm | 17 mm | 24 mm |
| Standover Height | 746 mm | 740 mm | 753 mm | 748 mm | 777 mm | 771 mm | 803 mm | 798 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
DC NX 11s completes the Devinci E Dc model. There are 10 e-bikes that carry this model name. You can easily view all of the Devinci E Dc e-bikes models from 2020, here.
Model range prices
The most economical model, the Devinci DC NX 11s 2020 has a starting price of 5799$. Devinci DC GX 11S 2020 on the other hand is the most expensive at 6899$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Devinci released this model in 2020, its price was 5799$. In conclusion, this e-bike price is 21.19% higher than the price of the average Enduro e-bike.
Enduro e-bikes average weight
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Devinci DC NX 11s it’s weighing 24.48 kg (53.97 lbs). At this weight, is slightly heavier than average. To sum up, it’s 4.53% heavier than the average weight of Enduro e-bikes.
DC NX 11s components
Fork
This e-bike has the Fox Performance Elite Float 36 fork installed. The fork’s travel is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox Float DPS Evol LV Factory 185×55 rear shock model, which has a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on DC NX 11s are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Devinci DC NX 11s has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
Devinci DC NX 11s comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
