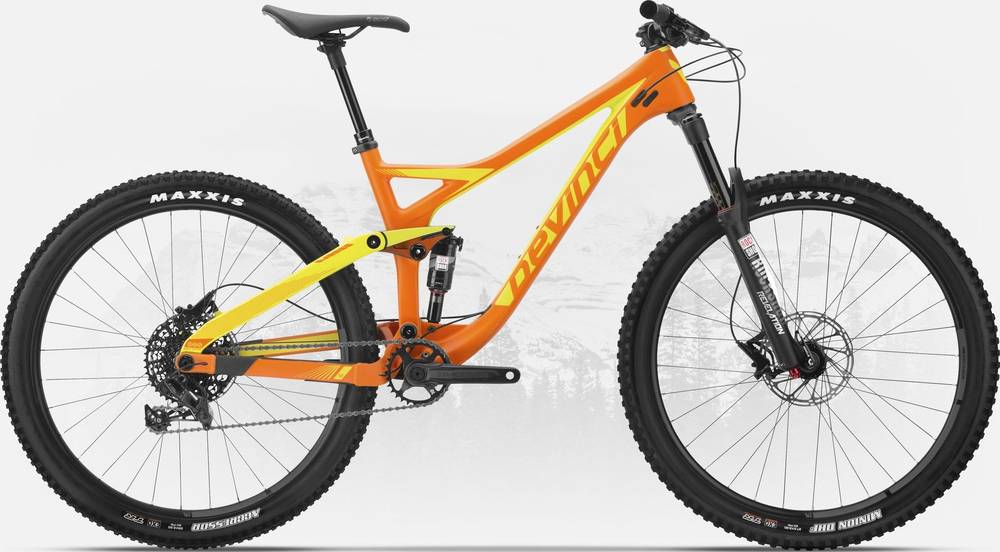

Devinci Django Carbon 27.5 NX 2018
2018 Mountain
Estimate price |
3,849$
Weight | 14.36 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 120mm -
Fork RockShox Revelation RC
-
Groupset NX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 120mm
Suspension Fork
RockShox Revelation RC 27.5 Solo Air 140mm Boost 110x15
Rear Shock
RockShox Monarch RT3 7.25x1.75 Debonair High Volume Eyelet
Drivetrain
Rear Derailleur
SRAM NX 11s
Shift Levers
SRAM NX 11s
Cassette
SRAM PG1130-11s 11-42T
Crank
RaceFace Aeffect DM30T
Chain
Shimano HG601-11s
Wheels
Front Hub
Formula TA 110mm
Rear Hub
Formula Boost148
Rims
V2 Comp db, Tubeless Compatible 29mm inner
Spokes
Stainless 14G w/Nylok
Tires
Maxxis Minion DHF 27.5x2.30" Exo, Tubeless Ready
Brakes
Brakes
SRAM Level T
Disk Rotors
SRAM Centerline 180mm
Cockpit
Stem
V2 Pro 35mm*45mm
Handlebar
V2 Pro Riserbar 35mm 780mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack
Seat
Saddle
SDG Bel-Air 2
Seatpost
FSA ajustable 125mm 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.41 mm | 1.34 mm | 1.36 mm | 1.29 mm | 1.32 mm | 1.28 mm | 1.3 mm |
| Bottom Bracket Height | 340 mm | 334 mm | 340 mm | 334 mm | 340 mm | 334 mm | 340 mm | 334 mm |
| Stack | 577 mm | 581 mm | 586 mm | 590 mm | 595 mm | 599 mm | 609 mm | 613 mm |
| Reach | 418 mm | 413 mm | 437 mm | 433 mm | 461 mm | 453 mm | 477 mm | 473 mm |
| Top Tube Length | 567 mm | 568 mm | 590 mm | 591 mm | 613 mm | 615 mm | 638 mm | 640 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 75 ° | 74.5 ° | 75 ° | 74.5 ° | 75 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 410 mm | 435 mm | 435 mm | 470 mm | 470 mm | 500 mm | 500 mm |
| Head Tube Angle | 68 ° | 67.5 ° | 68 ° | 67.5 ° | 68 ° | 67.5 ° | 68 ° | 67.5 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm | 140 mm | 140 mm |
| Chainstay Length | 418 mm | 420 mm | 418 mm | 420 mm | 418 mm | 420 mm | 418 mm | 420 mm |
| Wheelbase | 1119 mm | 1121 mm | 1143 mm | 1144 mm | 1167 mm | 1168 mm | 1193 mm | 1194 mm |
| Bottom Bracket Drop | 15 mm | 21 mm | 15 mm | 21 mm | 15 mm | 21 mm | 15 mm | 21 mm |
| Standover Height | 697 mm | 691 mm | 709 mm | 703 mm | 727 mm | 721 mm | 738 mm | 732 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview
Django Carbon 27.5 NX is part of the Devinci Django model. Devinci released 66 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Devinci Django 27.5 NX 2018 is the most affordable bike of this model and has a price of 2999$. On the other hand, Devinci Django Carbon 29 X01 12s 2018, is the most expensive and costs 7799$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Devinci released this model in 2018, its price was 3849$. If we compare this with the average Trail bike cost we notice that the price is 39.36% more expensive.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Django Carbon 27.5 NX weighs 14.36 kg (31.66 lbs) and is considerably heavier than the average. To sum up, it’s 10.63% heavier than the average weight of Trail bikes.
Django Carbon 27.5 NX components
Fork
The fork installed on this bike is the RockShox Revelation RC model. The travel on this model is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Devinci Django Carbon 27.5 NX bike has the RockShox Monarch RT3 7.25×1.75 Debonair High Volume Eyelet model installed, and has a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The Django Carbon 27.5 NX 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Devinci Django Carbon 27.5 NX is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
