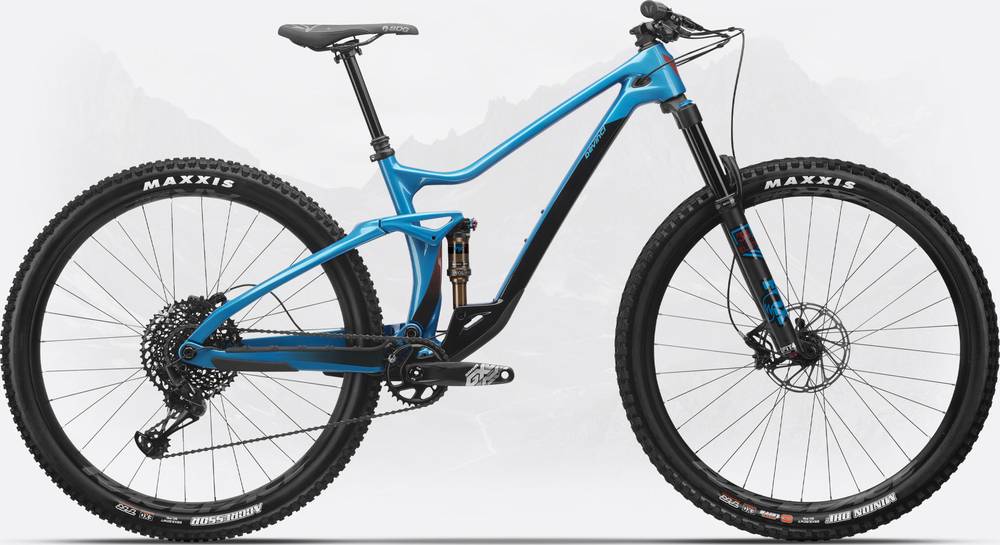

Devinci Django Carbon 29 GX 12s 2020
2020 Mountain
Estimate price |
5,199$
Weight | 13.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork Fox Performance Elite Float 34
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 120mm, Designed & Assembled in Canada / Conçu et assemblé au Canada
Suspension Fork
Fox Float 34 Performance Elite Evol 29 Boost 110 140mm 44OS
Rear Shock
Fox FLoat DPS Factory series 190x45
Drivetrain
Rear Derailleur
SRAM GX Eagle 12s
Shift Levers
SRAM GX EAGLE 12s
Cassette
SRAM XG1275-12s 10-50T XD
Crank
SRAM GX Eagle 32T SuperBoost 157
Bottom Bracket
SRAM DUB 73mm Threaded
Chain
SRAM NX Eagle 12s
Wheels
Front Hub
Novatec Disc D791SB-B15 TA 15x110
Rear Hub
Novatec XDH42SB/A SB157x12
Rims
RaceFace AR35 Offset 29er | 35mm inner
Spokes
Stainless 14G w/Nylok
Tires
Maxxis Minion DHF 29x2.5WT" 3C, EXO, TR
Brakes
Brakes
SRAM Level TL
Disk Rotors
SRAM Centerline 180mm
Cockpit
Stem
V2 Pro 35 | 50mm
Handlebar
Race Face Aeffect R 35 Riserbar 20mm | 780mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack
Seat
Saddle
SDG Radar
Seatpost
Fox Transfer Perf 31.6 1xLever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.51 mm | 1.41 mm | 1.44 mm | 1.37 mm | 1.4 mm | 1.33 mm | 1.36 mm | 1.3 mm | 1.32 mm |
| Bottom Bracket Height | 339 mm | 333 mm | 339 mm | 333 mm | 339 mm | 333 mm | 339 mm | 333 mm | 339 mm | 333 mm |
| Stack | 611 mm | 615 mm | 611 mm | 615 mm | 620 mm | 624 mm | 629 mm | 633 mm | 638 mm | 642 mm |
| Reach | 413 mm | 407 mm | 433 mm | 427 mm | 453 mm | 447 mm | 472 mm | 467 mm | 492 mm | 487 mm |
| Top Tube Length | 541 mm | 543 mm | 561 mm | 563 mm | 585 mm | 587 mm | 609 mm | 611 mm | 633 mm | 634 mm |
| Seat Tube Angle | 78.1 ° | 77.6 ° | 78.1 ° | 77.6 ° | 77.9 ° | 77.4 ° | 77.8 ° | 77.3 ° | 77.6 ° | 77.1 ° |
| Seat Tube Length | 380 mm | 380 mm | 400 mm | 400 mm | 430 mm | 430 mm | 465 mm | 465 mm | 500 mm | 500 mm |
| Head Tube Angle | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm | 435 mm | 437 mm | 440 mm | 442 mm |
| Wheelbase | 1140 mm | 1141 mm | 1160 mm | 1161 mm | 1184 mm | 1185 mm | 1213 mm | 1214 mm | 1242 mm | 1243 mm |
| Bottom Bracket Drop | 35 mm | 41 mm | 35 mm | 41 mm | 35 mm | 41 mm | 35 mm | 41 mm | 35 mm | 41 mm |
| Standover Height | 715 mm | 710 mm | 725 mm | 720 mm | 740 mm | 735 mm | 755 mm | 750 mm | 765 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Django Carbon 29 GX 12s is part of the Devinci Django model. Devinci launched 66 bikes of this model so far. You can easily view all of the Devinci Django bikes models from 2020, here.
Model range prices
The most economical model, the Devinci Django 29 SX/NX 12s 2020 has a starting price of 2699$. Devinci Django Carbon 29 X01 2020 on the other hand is the most expensive at 8399$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2020 and its price was 5199$. Doing a quick comparison, we notice that Django Carbon 29 GX 12s price is 88.23% more expensive than the average cost of a Trail bike.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Django Carbon 29 GX 12s weighs 13.9 kg (30.64 lbs) and is a bit heavier than the average. In conclusion, the average Trail bike weighs 7.09% less than Django Carbon 29 GX 12s.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Elite Float 34 model. The travel on this model is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Django Carbon 29 GX 12s has a rear shock with a travel of 120mm. The model Fox FLoat DPS Factory series 190×45 is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The Django Carbon 29 GX 12s 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Devinci Django Carbon 29 GX 12s has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
