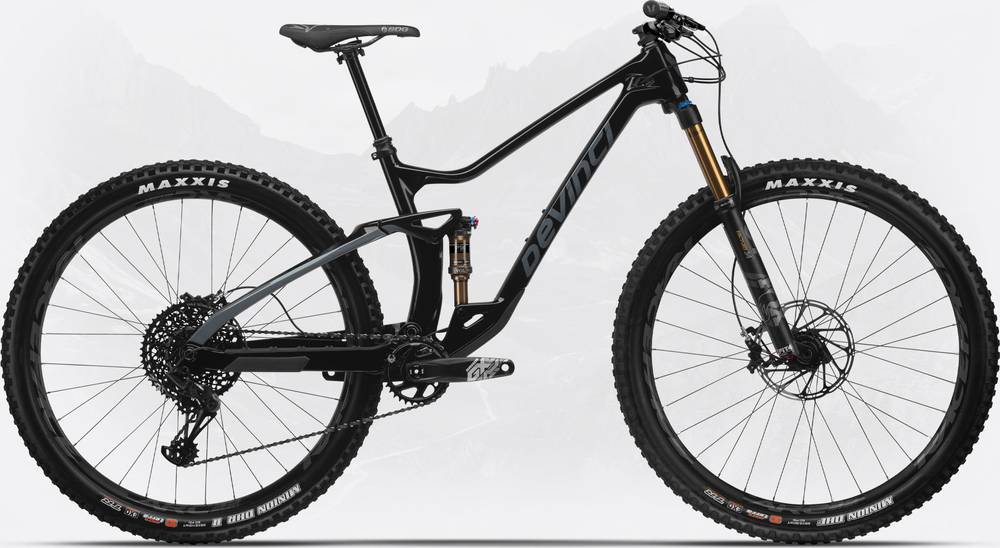

Devinci Django Carbon 29 GX 12s LTD 2020
2020 Mountain
Estimate price |
5,899$
Weight | 13.68 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 120mm, Designed & Assembled in Canada / Conçu et assemblé au Canada
Suspension Fork
Fox Float 34 Factory Evol 29 Boost 110 140mm 44OS
Rear Shock
Fox FLoat DPS Factory series 190x45
Drivetrain
Rear Derailleur
SRAM GX Eagle 12s
Shift Levers
SRAM GX EAGLE 12s
Cassette
SRAM XG1275-12s 10-50T XD
Crank
SRAM GX Eagle 32T SuperBoost 157
Bottom Bracket
SRAM DUB 73mm Threaded
Chain
SRAM GX Eagle 12s
Wheels
Front Hub
RaceFace Vault TA 15x110
Rear Hub
RaceFace Disc Vault SB157x12 XD
Rims
RaceFace ARC35 29er | 35mm inner
Spokes
Stainless 14G w/Nylok
Tires
Maxxis Minion DHF 29x2.5WT" 3C, EXO, TR
Brakes
Brakes
SRAM G2 RSC
Disk Rotors
SRAM Centerline 200mm
Cockpit
Stem
Race Face Turbine R 35 | 50mm | 0deg
Handlebar
Race Face Next R 35 Riserbar 20mm | 800mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack
Seat
Saddle
SDG Radar
Seatpost
Fox Transfer Perf 31.6 1xLever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.51 mm | 1.41 mm | 1.44 mm | 1.37 mm | 1.4 mm | 1.33 mm | 1.36 mm | 1.3 mm | 1.32 mm |
| Bottom Bracket Height | 339 mm | 333 mm | 339 mm | 333 mm | 339 mm | 333 mm | 339 mm | 333 mm | 339 mm | 333 mm |
| Stack | 611 mm | 615 mm | 611 mm | 615 mm | 620 mm | 624 mm | 629 mm | 633 mm | 638 mm | 642 mm |
| Reach | 413 mm | 407 mm | 433 mm | 427 mm | 453 mm | 447 mm | 472 mm | 467 mm | 492 mm | 487 mm |
| Top Tube Length | 541 mm | 543 mm | 561 mm | 563 mm | 585 mm | 587 mm | 609 mm | 611 mm | 633 mm | 634 mm |
| Seat Tube Angle | 78.1 ° | 77.6 ° | 78.1 ° | 77.6 ° | 77.9 ° | 77.4 ° | 77.8 ° | 77.3 ° | 77.6 ° | 77.1 ° |
| Seat Tube Length | 380 mm | 380 mm | 400 mm | 400 mm | 430 mm | 430 mm | 465 mm | 465 mm | 500 mm | 500 mm |
| Head Tube Angle | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm | 435 mm | 437 mm | 440 mm | 442 mm |
| Wheelbase | 1140 mm | 1141 mm | 1160 mm | 1161 mm | 1184 mm | 1185 mm | 1213 mm | 1214 mm | 1242 mm | 1243 mm |
| Bottom Bracket Drop | 35 mm | 41 mm | 35 mm | 41 mm | 35 mm | 41 mm | 35 mm | 41 mm | 35 mm | 41 mm |
| Standover Height | 715 mm | 710 mm | 725 mm | 720 mm | 740 mm | 735 mm | 755 mm | 750 mm | 765 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Django Carbon 29 GX 12s LTD completes the Devinci Django model. Devinci launched 66 bikes of this model so far. Take a sneak peek at all Devinci Django bikes models from 2020, by clicking here.
Model range prices
Devinci Django 29 SX/NX 12s 2020 is the most economical model, with a starting price of 2699$. Devinci Django Carbon 29 X01 2020 on the other hand costs 8399$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Devinci Django Carbon 29 GX 12s LTD price was 5899$. Comparing this to the average Trail bike price, we see that the price is 113.58% more expensive.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 13.68 kg (30.16 lbs), Devinci bike is a bit heavier than average. To sum up, it’s 5.39% heavier than the average weight of Trail bikes.
Overview of components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Devinci Django Carbon 29 GX 12s LTD bike has the Fox FLoat DPS Factory series 190×45 model installed, and has a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the Django Carbon 29 GX 12s LTD model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Devinci Django Carbon 29 GX 12s LTD is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
Devinci Django Carbon 29 GX 12s LTD includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
