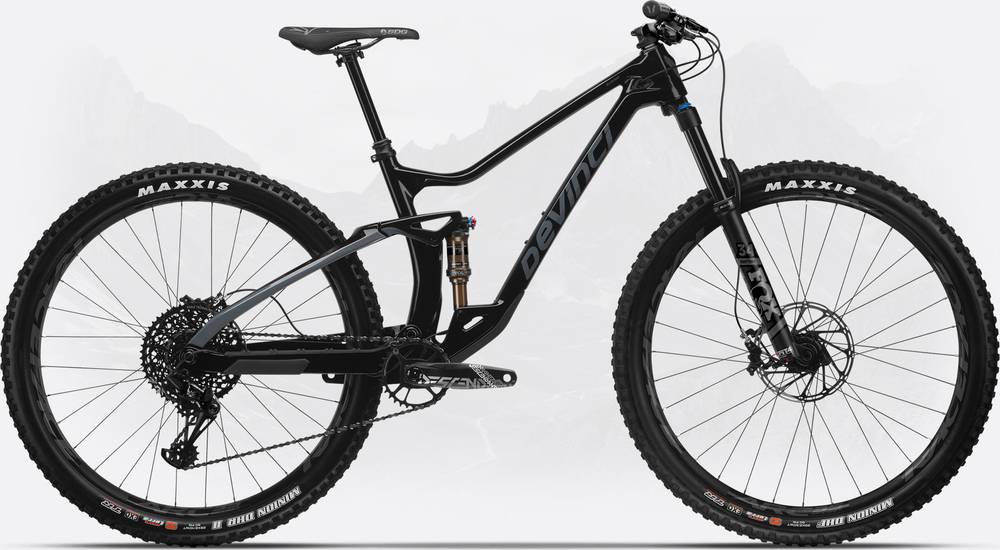

Devinci Django Carbon 29 NX 12s 2020
2020 Mountain
Estimate price |
4,599$
Weight | 15.06 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 120mm, Designed & Assembled in Canada / Conçu et assemblé au Canada
Suspension Fork
Fox Rhythm 34 29 Boost 110 140mm 44OS
Rear Shock
Fox FLoat DPS Factory series 190x45
Drivetrain
Rear Derailleur
SRAM NX Eagle 12s
Shift Levers
SRAM NX Eagle 12s
Cassette
SRAM PG1230-12s 11-50T
Crank
Truvativ Descendant Eagle 32T SuperBoost 157
Bottom Bracket
SRAM DUB 73mm Threaded
Chain
SRAM NX Eagle 12s
Wheels
Front Hub
Novatec Disc D791SB-B15 TA 15x110
Rear Hub
Novatec DH82SB-S5S SB157x12
Rims
V2 Comp Wide db Tubeless ready | 36mm inner
Spokes
Stainless 14G w/Nylok
Tires
Maxxis Minion DHF 29x2.5WT" 3C, EXO, TR
Brakes
Brakes
SRAM Level T
Disk Rotors
SRAM Centerline 180mm
Cockpit
Stem
V2 Pro 35 | 50mm
Handlebar
V2 Pro 35 Riserbar15mm | 780mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack
Seat
Saddle
SDG Radar
Seatpost
Fox Transfer Perf 31.6 1xLever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.51 mm | 1.41 mm | 1.44 mm | 1.37 mm | 1.4 mm | 1.33 mm | 1.36 mm | 1.3 mm | 1.32 mm |
| Bottom Bracket Height | 339 mm | 333 mm | 339 mm | 333 mm | 339 mm | 333 mm | 339 mm | 333 mm | 339 mm | 333 mm |
| Stack | 611 mm | 615 mm | 611 mm | 615 mm | 620 mm | 624 mm | 629 mm | 633 mm | 638 mm | 642 mm |
| Reach | 413 mm | 407 mm | 433 mm | 427 mm | 453 mm | 447 mm | 472 mm | 467 mm | 492 mm | 487 mm |
| Top Tube Length | 541 mm | 543 mm | 561 mm | 563 mm | 585 mm | 587 mm | 609 mm | 611 mm | 633 mm | 634 mm |
| Seat Tube Angle | 78.1 ° | 77.6 ° | 78.1 ° | 77.6 ° | 77.9 ° | 77.4 ° | 77.8 ° | 77.3 ° | 77.6 ° | 77.1 ° |
| Seat Tube Length | 380 mm | 380 mm | 400 mm | 400 mm | 430 mm | 430 mm | 465 mm | 465 mm | 500 mm | 500 mm |
| Head Tube Angle | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm | 435 mm | 437 mm | 440 mm | 442 mm |
| Wheelbase | 1140 mm | 1141 mm | 1160 mm | 1161 mm | 1184 mm | 1185 mm | 1213 mm | 1214 mm | 1242 mm | 1243 mm |
| Bottom Bracket Drop | 35 mm | 41 mm | 35 mm | 41 mm | 35 mm | 41 mm | 35 mm | 41 mm | 35 mm | 41 mm |
| Standover Height | 715 mm | 710 mm | 725 mm | 720 mm | 740 mm | 735 mm | 755 mm | 750 mm | 765 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Django Carbon 29 NX 12s completes the Devinci Django model. 66 bikes variations carry this model name so far. Take a sneak peek at all Devinci Django bikes models from 2020, by clicking here.
Model range prices
Devinci Django 29 SX/NX 12s 2020 is the most economical model, with a starting price of 2699$. Devinci Django Carbon 29 X01 2020 on the other hand costs 8399$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Devinci Django Carbon 29 NX 12s price was 4599$. Doing a quick comparison, we notice that Django Carbon 29 NX 12s price is 66.51% more expensive than the average cost of a Trail bike.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Devinci Django Carbon 29 NX 12s it’s weighing 15.06 kg (33.2 lbs). At this weight, is much heavier than average. In other words, this model is 16.02% heavier than the average Trail bike.
Overview of components
Fork
The Fox Rhythm Float 34 is included from the factory. It has a travel distance of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Devinci Django Carbon 29 NX 12s bike has the Fox FLoat DPS Factory series 190×45 model installed, and has a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Django Carbon 29 NX 12s are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Dropper post
The Devinci model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
