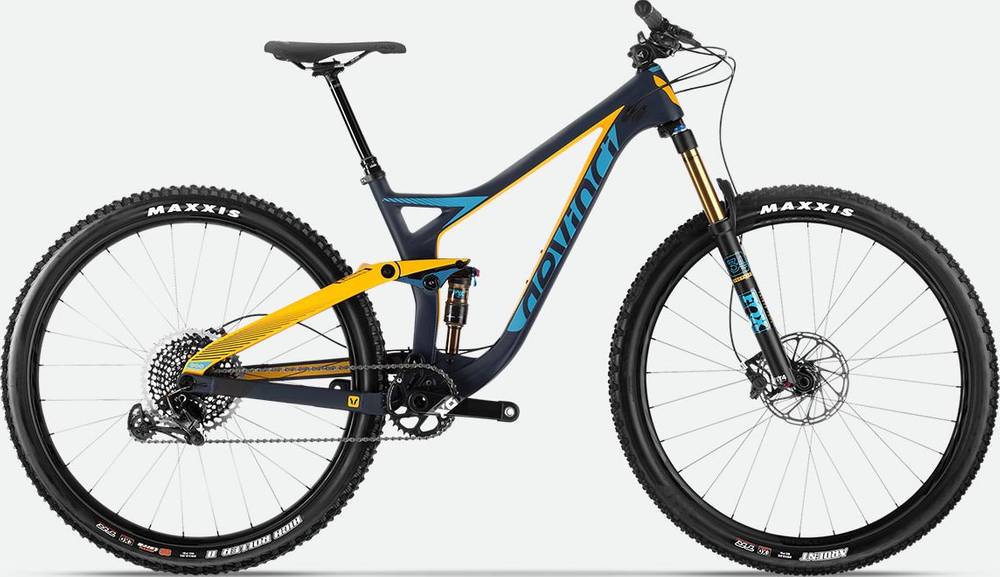

Devinci Django Carbon 29 X01 12s 2017
2017 Mountain
Estimate price |
6,819$
Weight | 12.62 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 120mm
Suspension Fork
Fox Float 34 Factory 29 Boost 110 130mm
Rear Shock
Fox Float Factory Series, 7.25x1.75
Drivetrain
Rear Derailleur
SRAM X01 Eagle 12s
Shift Levers
SRAM X01 Eagle 12s
Cassette
SRAM 12s 10-50T
Crank
SRAM X01 Eagle 34T Boost 148
Bottom Bracket
SRAM BB92
Chain
SRAM X01 Eagle 12s
Wheels
Rims
RaceFace Turrbine R30 29 Boost110x15
Tires
Maxxis High Roller II 29x2.3" 3C Exo TL
Brakes
Brakes
SRAM Level TLM
Cockpit
Stem
Race Face Turbine 35mm
Handlebar
Race Face Sixc 20mm Rise 35mm 800mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack w/SL bearing
Seat
Saddle
SDG Fly Mtn
Seatpost
Rock Shox Reverb Stealth 125mm 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.4 mm | 1.41 mm | 1.35 mm | 1.37 mm | 1.32 mm | 1.33 mm |
| Bottom Bracket Height | 341 mm | 336 mm | 341 mm | 336 mm | 341 mm | 336 mm | 341 mm | 336 mm |
| Stack | 610 mm | 612 mm | 610.5 mm | 612.5 mm | 619 mm | 621 mm | 629 mm | 631 mm |
| Reach | 417 mm | 413 mm | 437 mm | 433 mm | 457 mm | 453 mm | 477 mm | 473 mm |
| Top Tube Length | 574 mm | 575 mm | 594 mm | 595 mm | 618 mm | 619 mm | 641 mm | 642 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 75 ° | 74.5 ° | 75 ° | 74.5 ° | 75 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 410 mm | 435 mm | 435 mm | 470 mm | 470 mm | 500 mm | 500 mm |
| Head Tube Angle | 68.5 ° | 68 ° | 68.5 ° | 68 ° | 68.5 ° | 68 ° | 68.5 ° | 68 ° |
| Head Tube Length | 105 mm | 105 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 425 mm | 427 mm | 425 mm | 427 mm | 425 mm | 427 mm | 425 mm | 427 mm |
| Wheelbase | 1133 mm | 1135 mm | 1154 mm | 1155 mm | 1178 mm | 1179 mm | 1202 mm | 1203 mm |
| Bottom Bracket Drop | 33 mm | 38 mm | 33 mm | 38 mm | 33 mm | 38 mm | 33 mm | 38 mm |
| Standover Height | 716 mm | 710 mm | 729 mm | 723 mm | 747 mm | 741 mm | 754 mm | 748 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Django Carbon 29 X01 12s is part of the Devinci Django model. 66 bikes variations carry this model name so far. You can easily view all of the Devinci Django bikes models from 2017, here.
Model range prices
Devinci Django S 2017 is the most economical model, with a starting price of 2299$. Devinci Django Carbon 29 X01 12s 2017 on the other hand costs 6819$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Devinci released this model in 2017, its price was 6819$. In conclusion, this bike price is 146.89% higher than the price of the average Trail bike.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 12.62 kg (27.82 lbs), the Django Carbon 29 X01 12s model is slightly lighter than average. In other words, this model is 2.85% lighter than the average Trail bike.
Overview of components
Fork
The Django Carbon 29 X01 12s comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is Fox Float Factory Series, with a travel distance of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The Django Carbon 29 X01 12s 2017 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
The Devinci model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
