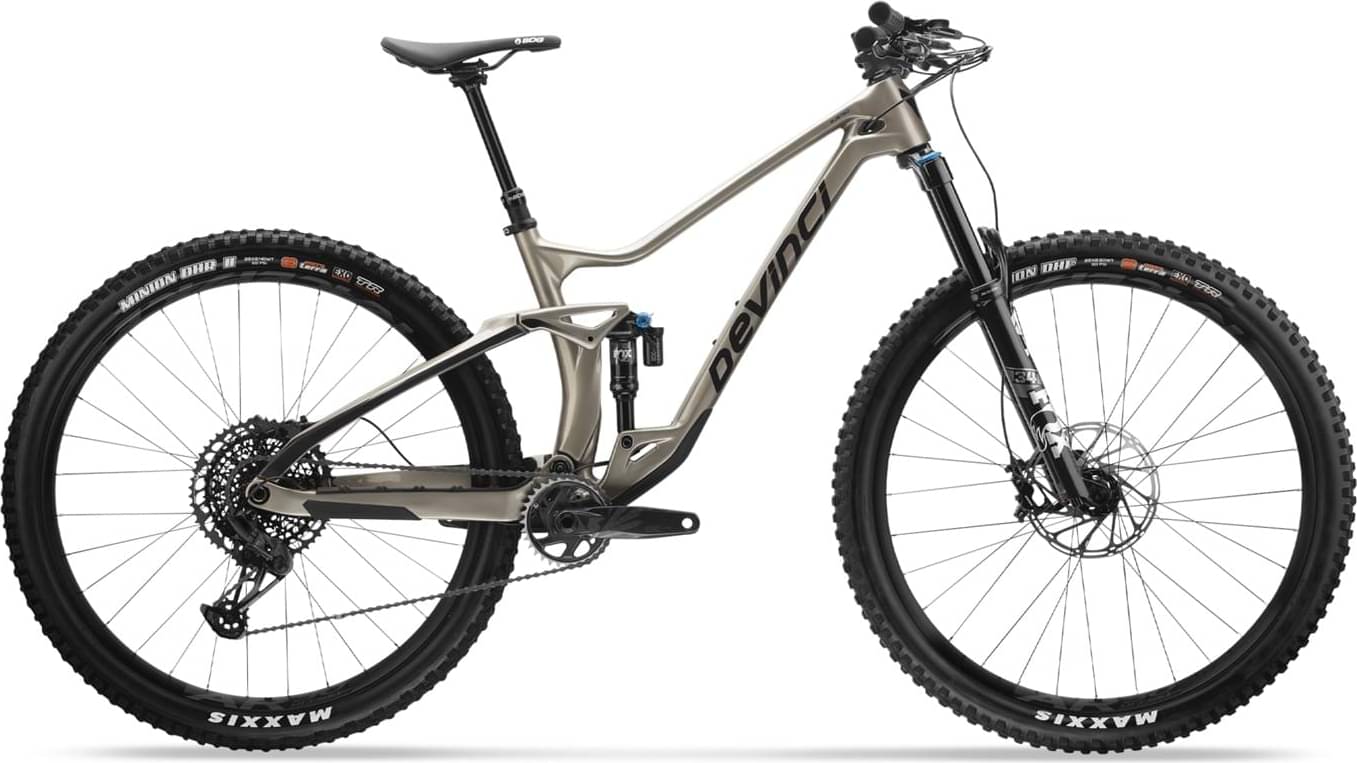

Devinci Django Carbon GX 12S 2022
2022 Mountain
Estimate price |
7,351$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork Fox Performance Elite Float 34
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
150cm - 162cm
XS Low
150cm - 162cm
SM High
159cm - 171cm
SM Low
159cm - 171cm
MD High
168cm - 180cm
MD Low
168cm - 180cm
LG High
177cm - 189cm
LG Low
177cm - 189cm
XL High
186cm - 198cm
XL Low
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 120mm
Suspension Fork
Fox Float 34 Performance Elite Grip2 140 | 44 Offset
Rear Shock
Fox Float DPS Performance Elite | 0.8VSpacer | 190x45
Drivetrain
Rear Derailleur
SRAM GX Eagle | 12s
Shift Levers
SRAM GX Eagle | 12s
Cassette
SRAM XG1275 | 12s | 10-52T | XD
Crank
SRAM GX Eagle | DUB | 32T | SuperBoost 157
Bottom Bracket
SRAM DUB | BSA | 73mm
Chain
SRAM NX Eagle | 12s
Wheels
Front Hub
Factor XD601SB/A | 6bolts | TA 15x110mm
Rear Hub
Factor XDH62SB/A | 6bolts | TA 12x157mm | XD
Rims
RaceFace AR30 | 30mm inner | TR
Spokes
Sapim Stainless 14G w/Nylok
Tires
Maxxis Minion DHF | 29x2.5wt | 3C EXO TR
Brakes
Brakes
SRAM G2 RS | 4 Pistons
Cockpit
Stem
V2 Pro | B:35mm | L:50mm | 0°
Handlebar
RaceFace Aeffect R35 | B:35mm | R:20mm | W:780mm
Grips
Devinci Performance | w/lock-on
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
SDG BELAIR 3.0
Seatpost
SDG Tellis 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.51 mm | 1.41 mm | 1.44 mm | 1.37 mm | 1.4 mm | 1.33 mm | 1.36 mm | 1.3 mm | 1.32 mm |
| Bottom Bracket Height | 339 mm | 333 mm | 339 mm | 333 mm | 339 mm | 333 mm | 339 mm | 333 mm | 339 mm | 333 mm |
| Stack | 611 mm | 615 mm | 611 mm | 615 mm | 620 mm | 624 mm | 629 mm | 633 mm | 638 mm | 642 mm |
| Reach | 413 mm | 407 mm | 433 mm | 427 mm | 453 mm | 447 mm | 472 mm | 467 mm | 492 mm | 487 mm |
| Top Tube Length | 541 mm | 543 mm | 561 mm | 563 mm | 585 mm | 587 mm | 609 mm | 611 mm | 633 mm | 634 mm |
| Seat Tube Angle | 78.1 ° | 77.6 ° | 78.1 ° | 77.6 ° | 77.9 ° | 77.4 ° | 77.8 ° | 77.3 ° | 77.6 ° | 77.1 ° |
| Seat Tube Length | 380 mm | 380 mm | 400 mm | 400 mm | 430 mm | 430 mm | 465 mm | 465 mm | 500 mm | 500 mm |
| Head Tube Angle | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm | 435 mm | 437 mm | 440 mm | 442 mm |
| Wheelbase | 1140 mm | 1141 mm | 1160 mm | 1161 mm | 1184 mm | 1185 mm | 1213 mm | 1214 mm | 1242 mm | 1243 mm |
| Bottom Bracket Drop | 35 mm | 41 mm | 35 mm | 41 mm | 35 mm | 41 mm | 35 mm | 41 mm | 35 mm | 41 mm |
| Standover Height | 715 mm | 710 mm | 725 mm | 720 mm | 740 mm | 735 mm | 755 mm | 750 mm | 765 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 150 cm | 159 cm | 159 cm | 168 cm | 168 cm | 177 cm | 177 cm | 186 cm | 186 cm |
| Rider Max Height | 162 cm | 162 cm | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 198 cm | 198 cm |
About this model
Django Carbon GX 12S is a Devinci Django model. 66 bikes variations carry this model name so far. Take a sneak peek at all Devinci Django bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Devinci Django Deore 12S 2022 has a starting price of 3641$. Devinci Django Carbon XT 12S LTD 2022 on the other hand is the most expensive at 7994$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 6858$. Comparing the average cost of a Trail bike to this one, you will see that Django Carbon GX 12S price is 148.3% more expensive.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Elite Float 34 model. The travel on this model is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Devinci Django Carbon GX 12S bike has the Fox Float DPS Performance Elite | 0.8VSpacer | 190×45 model installed, and has a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Devinci Django Carbon GX 12S 2022, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Devinci Django Carbon GX 12S has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 10 sizes available for this model. Rider height can be anywhere between 150 cm – 198 cm (4.92 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Devinci model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
