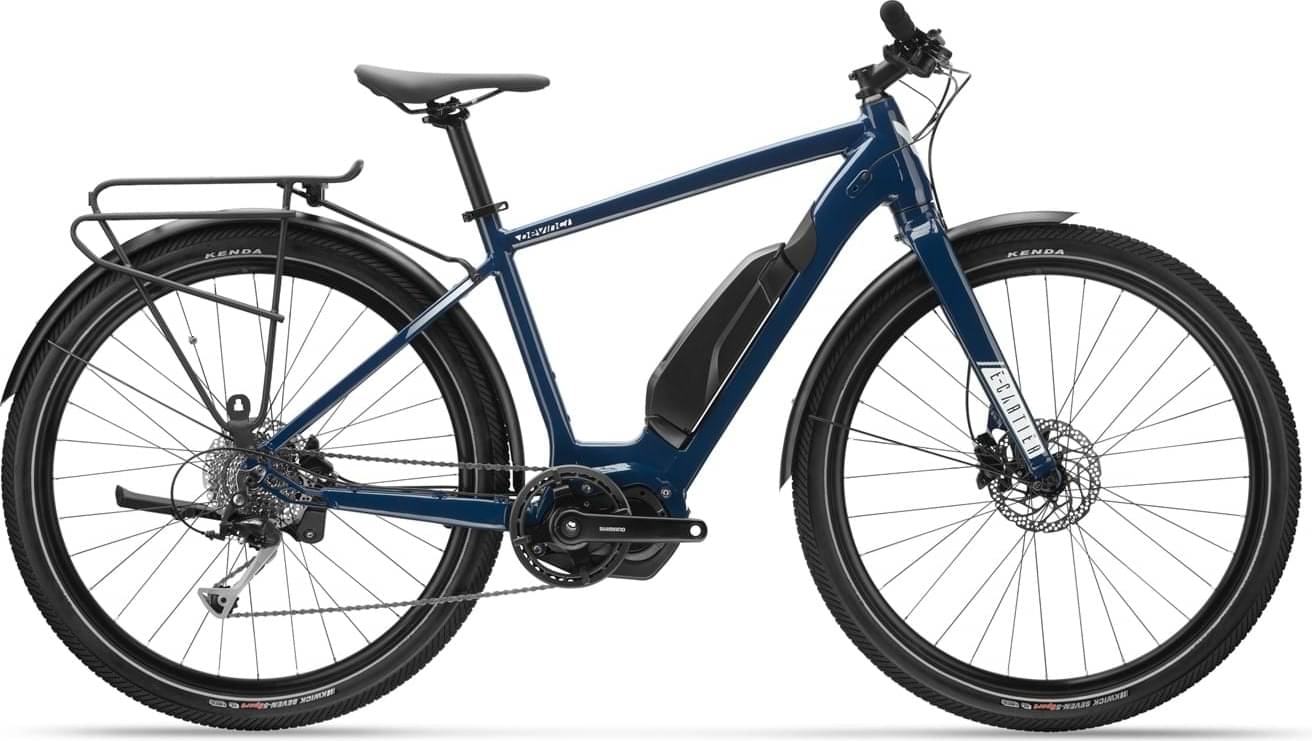

Devinci E-Cartier Alivio 9S 2022
2022 E-bike
Estimate price |
3,099$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Groupset Alivio, Shimano -
Suspension Rigid -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano STEPS E8014 | 418Wh | Lithium-ion -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 171cm
MD
169cm - 180cm
LG
178cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum S03
Suspension Fork
Aluminum Optimum S03
Drivetrain
Rear Derailleur
Shimano Alivio T4000 | 9s
Shift Levers
Shimano Alivio M3100 | 9s
Cassette
Shimano HG400 | 9s | 11-32T | SH
Crank
Shimano STEPS SM-CRE61 | 38T
Bottom Bracket
STEPS, press-fit
Chain
Shimano E6070 | 9s
Pedals
Wellgo M085
Wheels
Front Hub
Formula CL-25 | Sealed | Centerlock | QR 9x100mm
Rear Hub
Fma E-hub ECT-135S | Sealed | Centerlock | QR 10x135mm | SH
Rims
V2 Comp | 24mm inner
Spokes
Sapim Stainless 14G w/Nylok
Tires
Kenda KwickSeven-5 | 27.5x2 | SRC
Brakes
Brakes
Shimano MT201/MT200 | 2 Pistons
Disk Rotors
Shimano RT30 | Centerlock | 160mm
Cockpit
Stem
V2 Pro | B:31.8mm | 17°
Handlebar
V2 Comp | B:31.8mm | R:10mm | W:680mm
Grips
Soft Comfort | Single lock
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
Devinci
Seatpost
V2 Comp | 30.9mm
Motor & Battery
Motor
Shimano STEPS E6100 | 250W | 60Nm
Battery
Shimano STEPS E8014 | 418Wh | Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.395 mm | 1.405 mm | 1.409 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm |
| Stack | 558 mm | 583 mm | 606 mm |
| Reach | 400 mm | 415 mm | 430 mm |
| Top Tube Length | 560 mm | 588 mm | 615 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 150 mm | 175 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1052 mm | 1075 mm | 1099 mm |
| Standover Height | 700 | 740 mm | 776 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 152 cm | 169 cm | 178 cm |
| Rider Max Height | 171 cm | 180 cm | 187 cm |
About this model
E-Cartier Alivio 9S completes the Devinci E E Cartier model. There are 8 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Devinci E-Cartier E6100 9S 2022 has a starting price of 3036$. Devinci E-Cartier Alivio 9S 2022 on the other hand is the most expensive at 3099$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2022 and its price was 3099$. In conclusion, this e-bike price is 20.63% more expensive than the price of the average Commuter e-bike.
Overview of components
Fork material
The fork on this e-bike is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
The E-Cartier Alivio 9S 2022 e-bike is equipped with aluminum wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-Cartier Alivio 9S comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 152 cm – 187 cm (4.99 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
