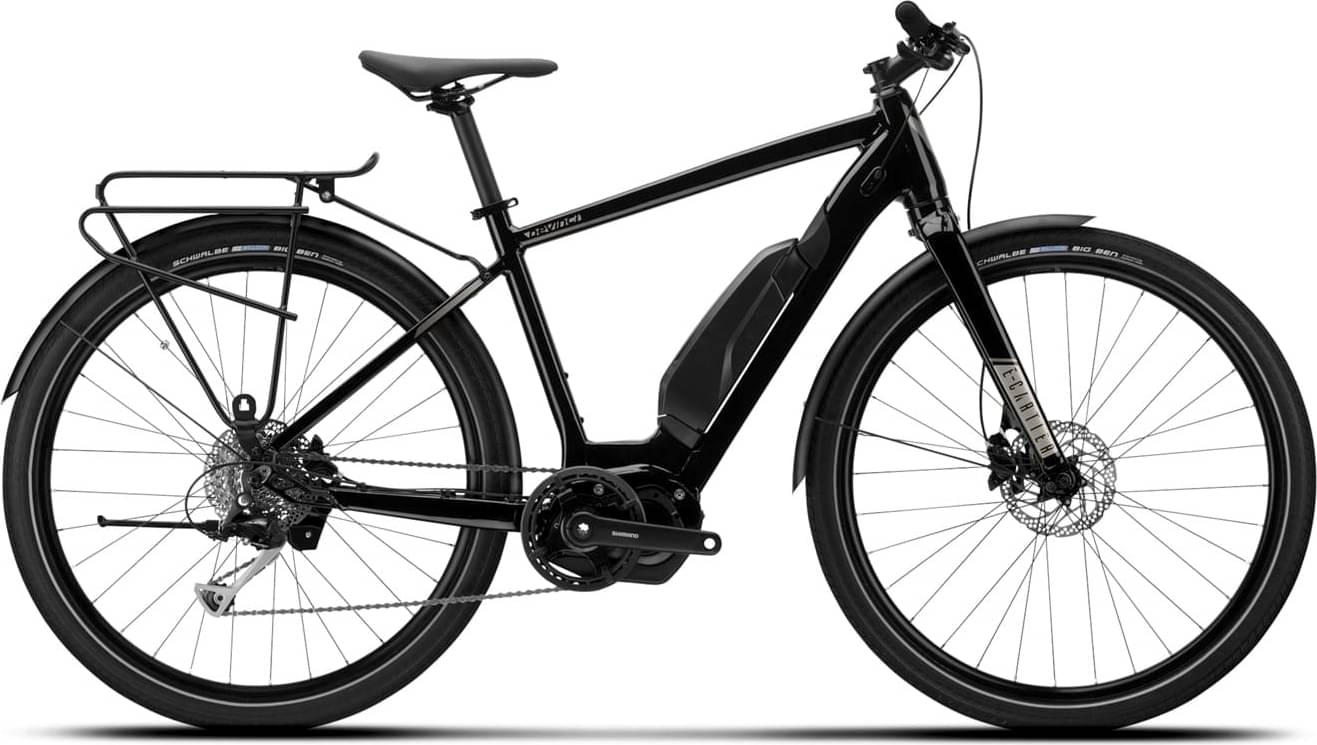

Devinci E-Cartier E6100 9S 2023
2023 E-bike
Estimate price |
3,042$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Alivio, Shimano -
Suspension Rigid -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano STEPS E8014 | 418Wh | Lithium-ion -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 171cm
MD
169cm - 180cm
LG
178cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum S03
Suspension Fork
Aluminum Optimum S03
Drivetrain
Rear Derailleur
Shimano Alivio T4000 | 9s
Shift Levers
Shimano Alivio M3100 | 9s
Cassette
Shimano HG400 | 9s | 11-32T | SH
Crank
Shimano STEPS SM-CRE61 | 38T
Bottom Bracket
STEPS, press-fit
Chain
Shimano E6070 | 9s
Pedals
Wellgo M085
Wheels
Front Hub
Formula CL-25 | Sealed | Centerlock | QR 9x100mm
Rear Hub
Fma E-hub ECT-135S | Sealed | Centerlock | QR 10x135mm | SH
Rims
V2 Comp | 24mm inner
Spokes
Sapim Stainless 14G w/Nylok
Tires
Kenda KwickSeven-5 | 27.5x2 | SRC
Brakes
Brakes
Front: Shimano MT201/MT200 | 2 Pistons, Rear: Shimano MT201/MT200 | 2 Pistons
Cockpit
Stem
V2 Pro | B:31.8mm | 17°
Handlebar
V2 Comp | B:31.8mm | R:10mm | W:680mm
Grips
Soft Comfort | Single lock
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
Devinci
Seatpost
V2 Comp | 30.9mm
Motor & Battery
Motor
Shimano STEPS E6100 | 250W | 60Nm
Battery
Shimano STEPS E8014 | 418Wh | Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.395 mm | 1.405 mm | 1.409 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm |
| Stack | 558 mm | 583 mm | 606 mm |
| Reach | 400 mm | 415 mm | 430 mm |
| Top Tube Length | 560 mm | 588 mm | 615 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 150 mm | 175 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1052 mm | 1075 mm | 1099 mm |
| Standover Height | 700 | 740 mm | 776 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 152 cm | 169 cm | 178 cm |
| Rider Max Height | 171 cm | 180 cm | 187 cm |
About this model
E-Cartier E6100 9S is a Devinci E E Cartier model. Devinci released 8 e-bikes variations of this model so far. Take a sneak peek at all Devinci E E Cartier e-bikes models from 2023, by clicking here.
Model range prices
Devinci E-Cartier E6100 9S 2023 is the most economical model, with a starting price of 3036$. Devinci E-Cartier EP8 11s LTD 2023 on the other hand costs 4399$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Devinci E-Cartier E6100 9S price was 3036$. Doing a quick comparison, we notice that E-Cartier E6100 9S price is 18.18% more expensive than the average cost of a Commuter e-bike.
Overview of components
Fork material
E-Cartier E6100 9S has an aluminum fork, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on E-Cartier E6100 9S are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 152 cm – 187 cm (4.99 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
