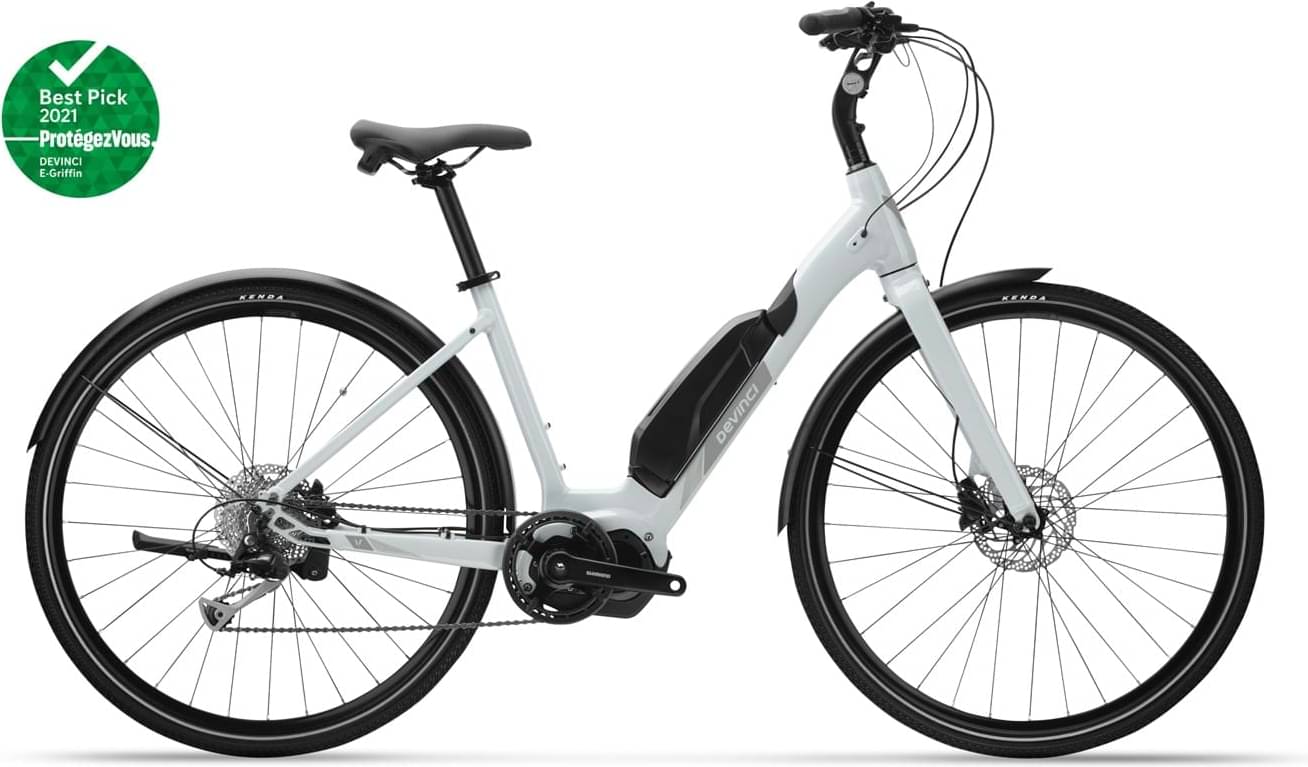

Devinci E-Griffin Alivio 9S 2022
2022 E-bike
Estimate price |
3,099$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Alivio, Shimano -
Suspension Rigid -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano STEPS E8014 | 418Wh | Lithium-ion -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
One Size
155cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum S03
Suspension Fork
Aluminum Optimum S03
Drivetrain
Rear Derailleur
Shimano Alivio T4000 | 9s
Shift Levers
Shimano Alivio M3100 | 9s
Cassette
Shimano HG400 | 9s | 11-32T | SH
Crank
Shimano STEPS SM-CRE61 | 38T
Bottom Bracket
STEPS, press-fit
Chain
Shimano E6070 | 9s
Pedals
Wellgo M085
Wheels
Front Hub
Formula CL-25 | Sealed | Centerlock | QR 9x100mm
Rear Hub
Formula CL-2611 | Sealed | Centerlock | QR 10x135mm | SH
Rims
V2 Comp | 17mm inner
Spokes
Sapim Stainless 14G w/Nylok
Tires
Kenda Kwick Trax | 700x38c
Brakes
Brakes
Shimano MT201/MT200 | 2 Pistons
Disk Rotors
Shimano RT30 | Centerlock | 160mm
Cockpit
Stem
Tranz-X Ajustable | B:25.4mm | L:110mm | 0-60°
Handlebar
Alloy City | B:25.4mm | R:30mm | W:640mm
Grips
Velo Ergo Comfort
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
Devinci
Seatpost
V2 Comp | 30.9mm
Motor & Battery
Motor
Shimano STEPS E6100 | 250W | 60Nm
Battery
Shimano STEPS E8014 | 418Wh | Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.33 mm |
| Bottom Bracket Height | 282 mm |
| Stack | 594 mm |
| Reach | 446 mm |
| Top Tube Length | 626 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 440 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 155 mm |
| Chainstay Length | 446 mm |
| Wheelbase | 1117 mm |
| Standover Height | 401 mm |
| Wheels | 700 |
| Rider Min Height | 155 cm |
| Rider Max Height | 186 cm |
Model Overview
E-Griffin Alivio 9S completes the Devinci E E Griffin model. Devinci launched 8 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Devinci E-Griffin E6100 9S 2022 is the most economical model, with a starting price of 3036$. Devinci E-Griffin Alivio 9S 2022 on the other hand costs 3099$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Comfort e-bikes average price
According to our calculations, the average cost of a Comfort e-bike that is reliable is 1957$. However, even if your budget is less than the average, you might still be able to get a top-quality Comfort e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Devinci E-Griffin Alivio 9S price was 3099$. If we compare this with the average Comfort e-bike cost we notice that the price is 58.35% more expensive.
E-Griffin Alivio 9S components
Fork material
The fork on this e-bike is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
The E-Griffin Alivio 9S 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Griffin Alivio 9S has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike has one size only, so it might not fit you. In short, make sure you double-check if it fits you.
