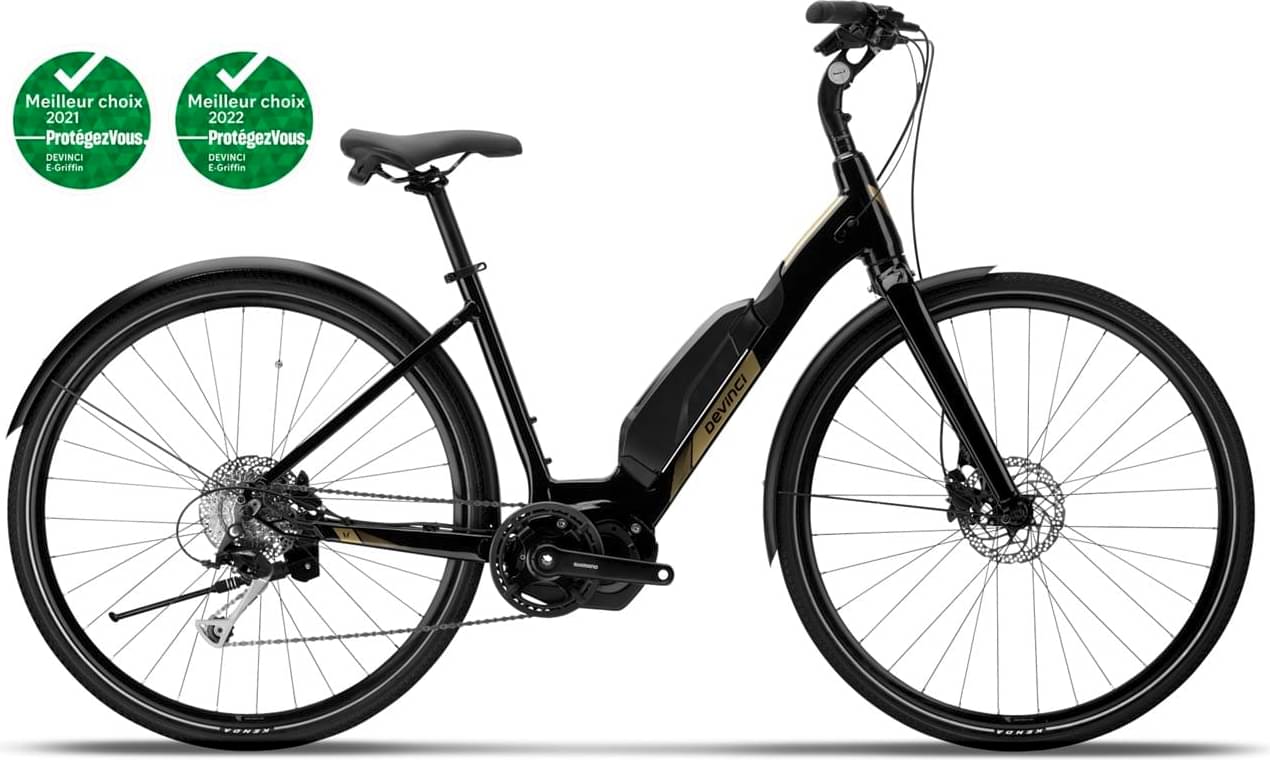

Devinci E-Griffin E6100 9S 2023
2023 E-bike
Estimate price |
3,042$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Alivio, Shimano -
Suspension Rigid -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano STEPS E8014 | 418Wh | Lithium-ion -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
One Size
155cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum S03
Suspension Fork
Aluminum Optimum S03
Drivetrain
Rear Derailleur
Shimano Alivio T4000 | 9s
Shift Levers
Shimano Alivio M3100 | 9s
Cassette
Shimano HG400 | 9s | 11-32T | SH
Crank
Shimano STEPS SM-CRE61 | 38T
Bottom Bracket
STEPS, press-fit
Chain
Shimano E6070 | 9s
Pedals
Wellgo M085
Wheels
Front Hub
Formula CL-25 | Sealed | Centerlock | QR 9x100mm
Rear Hub
Formula CL-2611 | Sealed | Centerlock | QR 10x135mm | SH
Rims
V2 Comp | 17mm inner
Spokes
Sapim Stainless 14G w/Nylok
Tires
Kenda Kwick Trax | 700x38c
Brakes
Brakes
Front: Shimano MT201/MT200 | 2 Pistons, Rear: Shimano MT201/MT200 | 2 Pistons
Cockpit
Stem
Tranz-X Ajustable | B:25.4mm | L:110mm | 0-60°
Handlebar
Alloy City | B:25.4mm | R:30mm | W:640mm
Grips
Velo Ergo Comfort
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
Devinci
Seatpost
V2 Comp | 30.9mm
Motor & Battery
Motor
Shimano STEPS E6100 | 250W | 60Nm
Battery
Shimano STEPS E8014 | 418Wh | Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.33 mm |
| Bottom Bracket Height | 282 mm |
| Stack | 594 mm |
| Reach | 446 mm |
| Top Tube Length | 626 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 440 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 155 mm |
| Chainstay Length | 446 mm |
| Wheelbase | 1117 mm |
| Standover Height | 401 mm |
| Wheels | 700 |
| Rider Min Height | 155 cm |
| Rider Max Height | 186 cm |
About this model
E-Griffin E6100 9S belongs to the Devinci E E Griffin model. Devinci released 8 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Devinci E-Griffin E6100 9S 2023 is the most economical model, with a starting price of 3036$. Devinci E-Griffin EP8 11s 2023 on the other hand costs 4399$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Comfort e-bikes average price
If you want an acceptable Comfort e-bike you should know that the average price is 1957$. However, even if your budget is less than the average, you might still be able to get a top-quality Comfort e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Devinci E-Griffin E6100 9S price was 3036$. Comparing the average cost of a Comfort e-bike to this one, you will see that E-Griffin E6100 9S price is 55.14% more expensive.
E-Griffin E6100 9S components
Fork material
When it comes to the fork, this e-bike has an aluminum one, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When it comes to wheels, the E-Griffin E6100 9S e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Griffin E6100 9S has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This e-bike has one size only, so it might not fit you. In conclusion, make sure it fits you, or look for another model.
