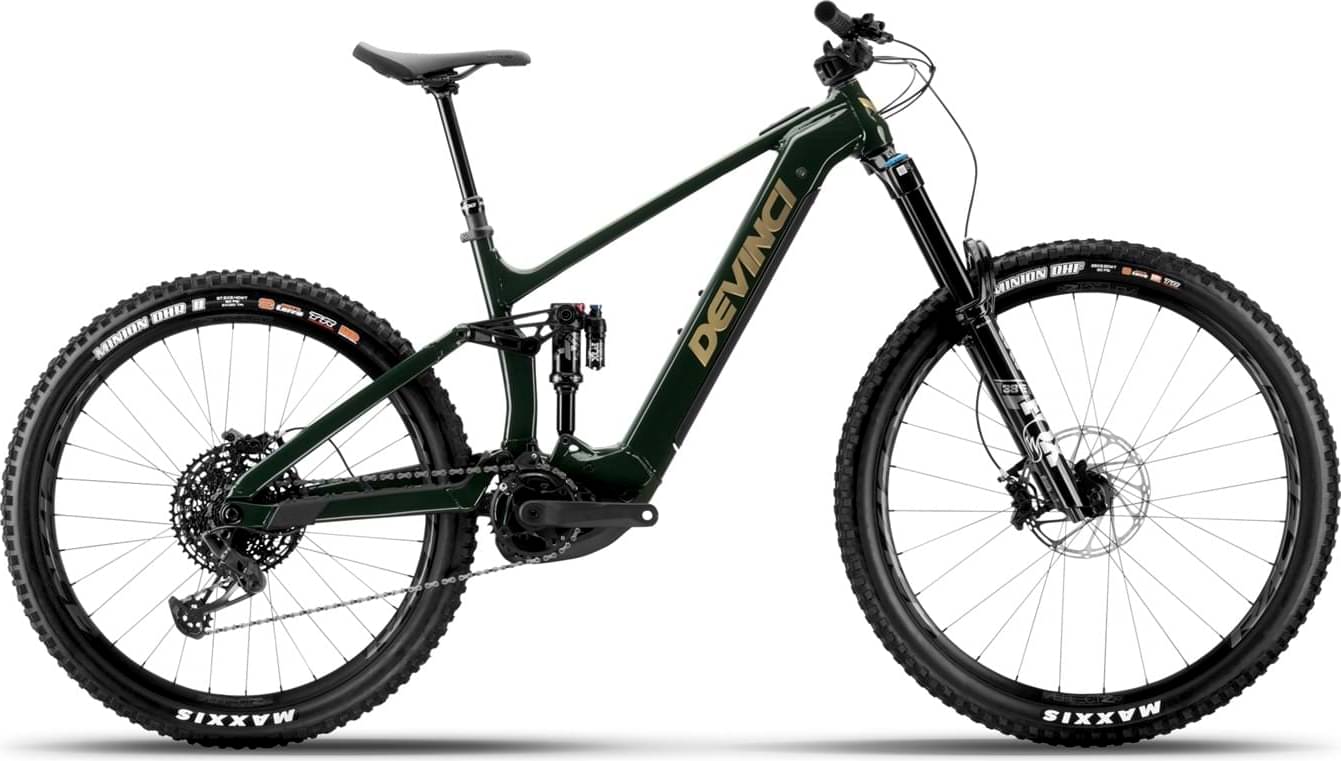

Devinci E-Troy GX 12S LTD 2024
2024 E-bike
Estimate price |
7,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 150mm -
Fork Fox Performance Elite Float 38
-
Groupset GX Eagle, SRAM -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube | 625Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM Low
160cm - 171cm
MD Low
168cm - 180cm
LG Low
177cm - 189cm
XL Low
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G04 150mm
Suspension Fork
Fox 38 Performance Elite Grip2 170 | 51 Offset
Rear Shock
Fox Float X Performance Elite Evol LV | 0.4VSpacer| 185x55T
Drivetrain
Rear Derailleur
SRAM GX Eagle | 12s
Shift Levers
SRAM GX Eagle 12s Single Click
Cassette
SRAM PG1230 | 12s | 11-50T | HG
Crank
SRAM X-Sync Eagle 34T EMTB
Chain
SRAM GX Eagle | 12s
Chain Guide
GN4 Mini Guide
Wheels
Rims
Front: RaceFace Aeffect R30 29 Boost110x15 | 30mm inner, Rear: RaceFace Aeffect R30 27.5 B148x12 HG | 30mm inner EMTB
Tires
Front: Maxxis Minion DHF | 29x2.5wt | 3C MaxxTerra Exo+ TR, Rear: Maxxis Minion DHF | 29x2.5wt | 3C MaxxTerra Exo+ TR
Brakes
Brakes
Front: SRAM Code R | 4 Pistons, Rear: SRAM Code R | 4 Pistons
Cockpit
Stem
V2 Pro E | B:35mm | L:40mm | 0°
Handlebar
V2 Pro E | B:35mm | R:15mm | W:780mm
Grips
Devinci Performance | w/lock-on
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
SDG BELAIR Max eMTB
Seatpost
SDG Tellis 31.6mm | Travel 125mm
Motor & Battery
Motor
BOSCH Performance Line CX | 85Nm
Battery
BOSCH PowerTube | 625Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low | MD Low | LG Low | XL Low |
|---|---|---|---|---|
| Stack Reach Ratio | 1.382 mm | 1.323 mm | 1.287 mm | 1.253 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Stack | 615 mm | 615 mm | 624 mm | 633 mm |
| Reach | 445 mm | 465 mm | 485 mm | 505 mm |
| Top Tube Length | 570 mm | 590 mm | 612 mm | 635 mm |
| Seat Tube Angle | 78.5 ° | 78.5 ° | 78.5 ° | 78.4 ° |
| Seat Tube Length | 400 mm | 420 mm | 460 mm | 495 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1225 mm | 1245 mm | 1270 mm | 1294 mm |
| Standover Height | 740 mm | 740 mm | 740 mm | 740 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 168 cm | 177 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 198 cm |
Model Overview
E-Troy GX 12S LTD is part of the Devinci E E Troy model. There are 10 e-bikes that carry this model name. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
The most economical model, the Devinci E-Troy Deore 12S 2024 has a starting price of 6199$. Devinci E-Troy GX 12S LTD 2024 on the other hand is the most expensive at 7499$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2024 for 7499$. Doing a quick comparison, we notice that E-Troy GX 12S LTD price is 56.72% more expensive than the average cost of an Enduro e-bike.
E-Troy GX 12S LTD components
Fork
The Fox Performance Elite Float 38 is included from the factory. It has a travel distance of 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Fox Float X Performance Elite Evol LV | 0.4VSpacer| 185x55T rear shock model, which has a travel of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The E-Troy GX 12S LTD 2024 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Troy GX 12S LTD has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Devinci E-Troy GX 12S LTD e-bike has 4 sizes, in the range of 160 cm – 198 cm (5.25 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Devinci model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
