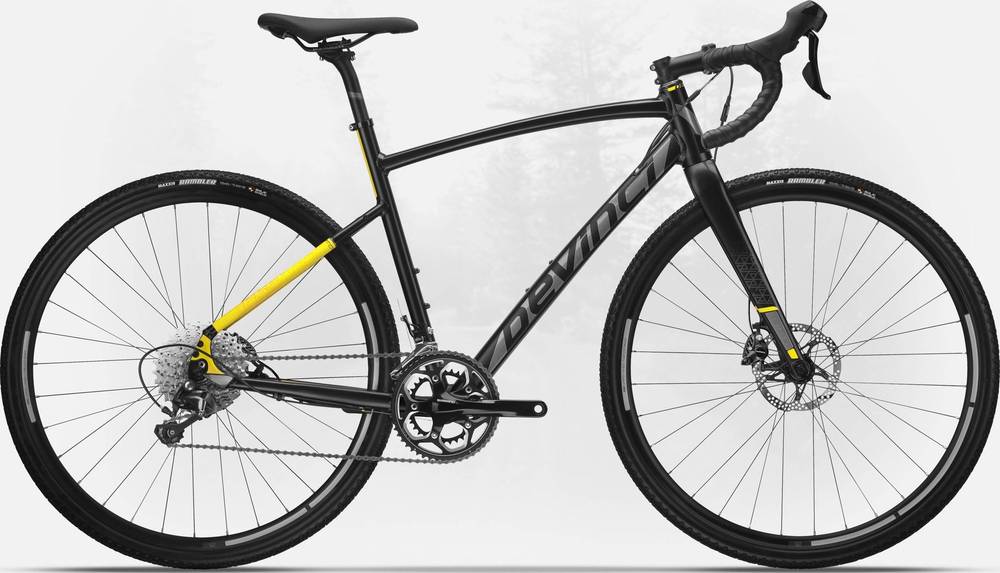

Devinci Hatchet 105 HD 2018
2018 Road
Estimate price |
1,949$
Weight | 10.59 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum R03
Suspension Fork
Devinci Carbon
Drivetrain
Rear Derailleur
Shimano 105 5800
Front Derailleur
Shimano 105 5800
Cassette
Shimano 105 11s 11-32T
Crank
Shimano RS510 50/34T
Chain
Shimano HG601-11s
Wheels
Front Hub
Formula Disc sealed centerlock
Rear Hub
Formula Disc sealed Centerlock
Rims
V2 Pro db TR
Spokes
Stainless 14G w/Nylok
Tires
Maxxis Refuse 700x40c Maxx Shield TR
Brakes
Brakes
Shimano RS505 Post Mount
Disk Rotors
Shimano RT70 160mm Centerlock
Cockpit
Stem
V2 Pro 31.8mm
Handlebar
V2 Comp, Road alloy 31.8mm 12d
Headset
FSA Orbit C40 Integrated
Seat
Saddle
V2 Stage
Seatpost
V2 Comp 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.39 mm | 1.43 mm | 1.48 mm | 1.52 mm |
| Bottom Bracket Height | 287.5 mm | 287.5 mm | 287.5 mm | 287.5 mm | 287.5 mm |
| Stack | 516 mm | 537 mm | 558 mm | 586 mm | 617 mm |
| Reach | 381 mm | 386 mm | 389 mm | 396 mm | 406 mm |
| Top Tube Length | 511 mm | 531 mm | 551 mm | 571 mm | 596 mm |
| Seat Tube Angle | 76 ° | 75 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 170 mm | 200 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1022 mm | 1030 mm | 1036 mm | 1052 mm | 1067 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 674 mm | 712 mm | 758 mm | 797 mm | 836 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Hatchet 105 HD belongs to the Devinci Hatchet model. Devinci launched 65 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Devinci Hatchet Rival 2018 is the most economical model, with a starting price of 1599$. Devinci Hatchet Carbon Force 2018 on the other hand costs 4269$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Devinci released this model in 2018, its price was 1949$. In conclusion, this bike price is 26.32% lower than the price of the average Gravel bike.
Average weight for Gravel bikes
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Devinci Hatchet 105 HD it’s weighing 10.59 kg (23.35 lbs). At this weight, is much heavier than average. In other words, this model is 30.26% heavier than the average Gravel bike.
Hatchet 105 HD components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the Hatchet 105 HD bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Hatchet 105 HD comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Devinci Hatchet 105 HD bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
