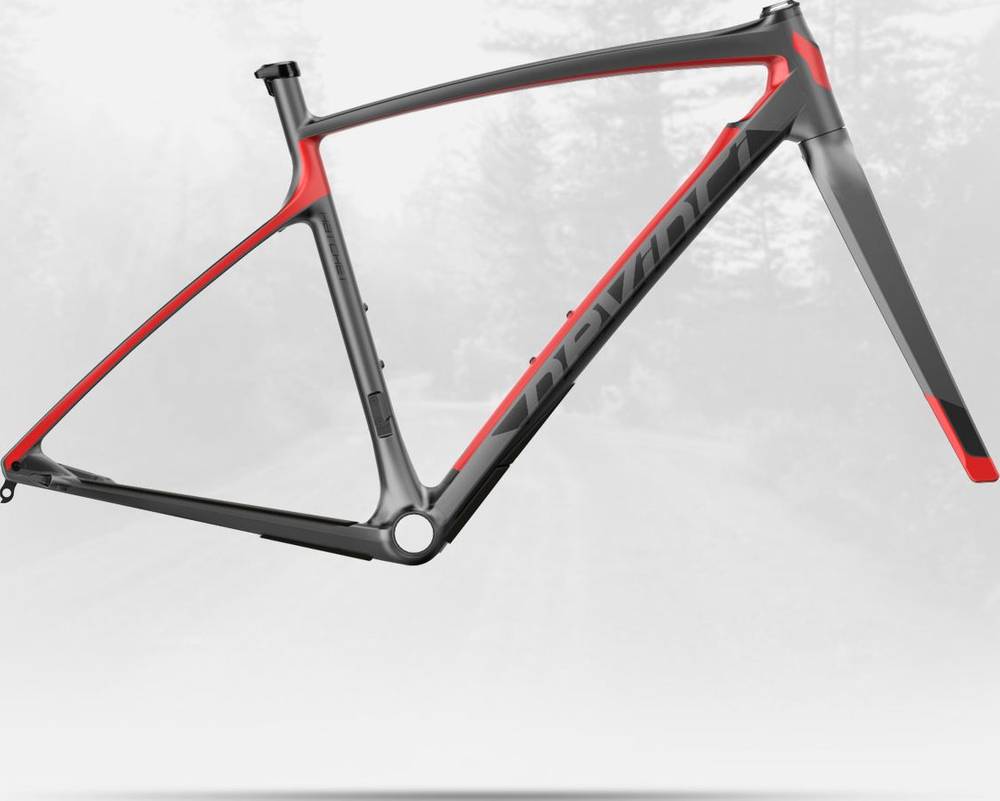

Devinci Hatchet Carbon 2018
2018 Road
Estimate price |
1,999$
Weight | 1.7 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-R HR
Suspension Fork
Devinci Full Carbon Super Leggera
Cockpit
Headset
FSA Orbit C40-CF ACB Integrated w/SL bearing
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.39 mm | 1.43 mm | 1.48 mm | 1.52 mm |
| Bottom Bracket Height | 287.5 mm | 287.5 mm | 287.5 mm | 287.5 mm | 287.5 mm |
| Stack | 516 mm | 537 mm | 558 mm | 586 mm | 617 mm |
| Reach | 381 mm | 386 mm | 389 mm | 396 mm | 406 mm |
| Top Tube Length | 511 mm | 531 mm | 551 mm | 571 mm | 596 mm |
| Seat Tube Angle | 76 ° | 75 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 170 mm | 200 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1022 mm | 1030 mm | 1036 mm | 1052 mm | 1067 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 672 mm | 712 mm | 760 mm | 800 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Hatchet Carbon is a Devinci Hatchet model. 65 frames variations carry this model name so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel frames
Our math shows that the average cost of a dependable Gravel frame is 1505$. However, even though the average price of a Gravel frame is lower, you might still be able to get a top-quality frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
At the moment of the release date, Devinci Hatchet Carbon price was 1999$. Comparing this to the average Gravel frame price, we see that the price is 32.82% more expensive.
Gravel frames average weight
If we make a quick analysis of the average weight of a Gravel frame, we get 2.06 kg (4.54 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much lighter than average, Hatchet Carbon has a weight of 1.7 kg (3.75 lbs). In short, the average Gravel frame weight is 21.18% higher than this one.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Sizes
Hatchet Carbon comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
