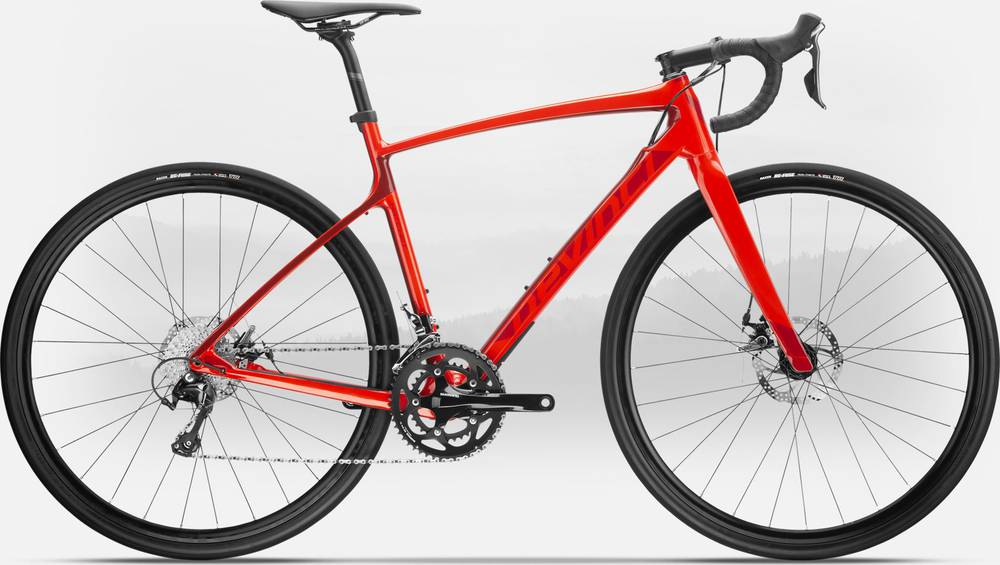

Devinci Hatchet Carbon Tiagra 2019
2019 Road
Estimate price |
2,249$
Weight | 9.32 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Tiagra, Shimano -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-R HR, Designed & Assembled in Canada / Conçu et assemblé au Canada
Suspension Fork
Devinci Full Carbon Super Leggera
Drivetrain
Rear Derailleur
Shimano Tiagra 4700
Front Derailleur
Shimano Tiagra 4700
Shift Levers
Shimano Tiagra 4700
Cassette
Shimano Tiagra HG500-10s 11-32T
Crank
Shimano RS400 50/34T
Bottom Bracket
Shimano Press Fit BB86
Chain
KMC X10 10s
Wheels
Front Hub
Formula Disc 6 bolts, Thru axle 12mm
Rear Hub
Formula Disc 6 bolts, Thru axle 12mm
Rims
V2 Pro db Tubeless ready | 19mm inner
Spokes
Stainless 14G w/Nylok
Tires
Maxxis Refuse 700x32C TR
Brakes
Brakes
TRP Spyre Flat Mount
Cockpit
Stem
V2 Pro 31.8mm
Handlebar
V2 Comp 31.8mm R:120mm | D:70mm
Headset
FSA Orbit C40-CF ACB Integrated w/SL bearing
Seat
Saddle
V2 Pro
Seatpost
V2 Comp 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.39 mm | 1.43 mm | 1.48 mm | 1.52 mm |
| Bottom Bracket Height | 287.5 mm | 287.5 mm | 287.5 mm | 287.5 mm | 287.5 mm |
| Stack | 516 mm | 537 mm | 558 mm | 586 mm | 617 mm |
| Reach | 381 mm | 386 mm | 389 mm | 396 mm | 406 mm |
| Top Tube Length | 511 mm | 531 mm | 551 mm | 571 mm | 596 mm |
| Seat Tube Angle | 76 ° | 75 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 170 mm | 200 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1022 mm | 1030 mm | 1036 mm | 1052 mm | 1067 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 672 mm | 712 mm | 760 mm | 800 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Hatchet Carbon Tiagra belongs to the Devinci Hatchet model. There are 65 bikes that carry this model name. Take a sneak peek at all Devinci Hatchet bikes models from 2019, by clicking here.
Model range prices
Devinci Hatchet Claris WF 2019 is the most affordable bike of this model and has a price of 1039$. On the other hand, Devinci Hatchet Carbon Ultegra RX 2019, is the most expensive and costs 4169$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Devinci released this model in 2019, its price was 2249$. Doing a quick comparison, we notice that Hatchet Carbon Tiagra price is 9.47% smaller than the average cost of a Gravel bike.
Gravel bikes average weight
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 9.32 kg (20.55 lbs), the Hatchet Carbon Tiagra model is considerably heavier than average. In other words, this model is 14.64% heavier than the average Gravel bike.
Hatchet Carbon Tiagra components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Hatchet Carbon Tiagra model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Hatchet Carbon Tiagra has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
